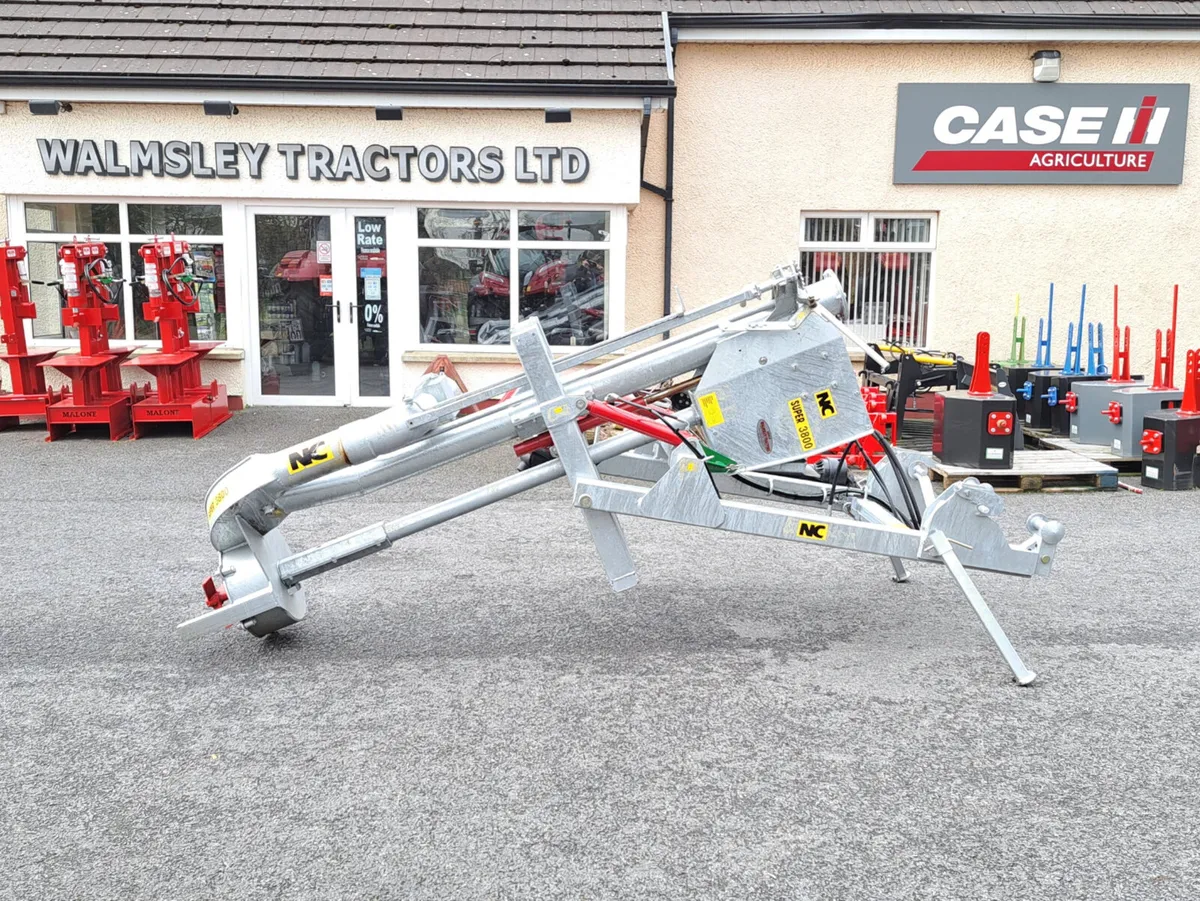

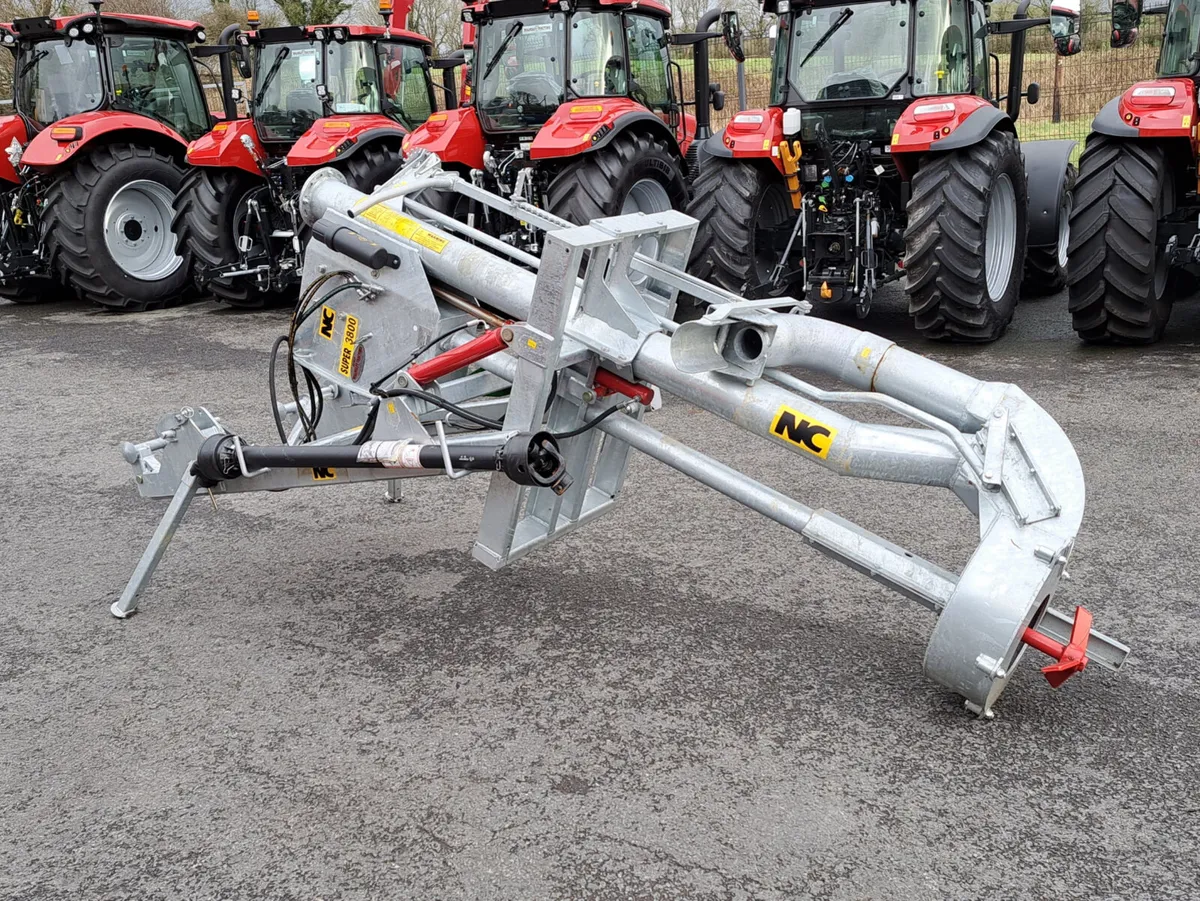

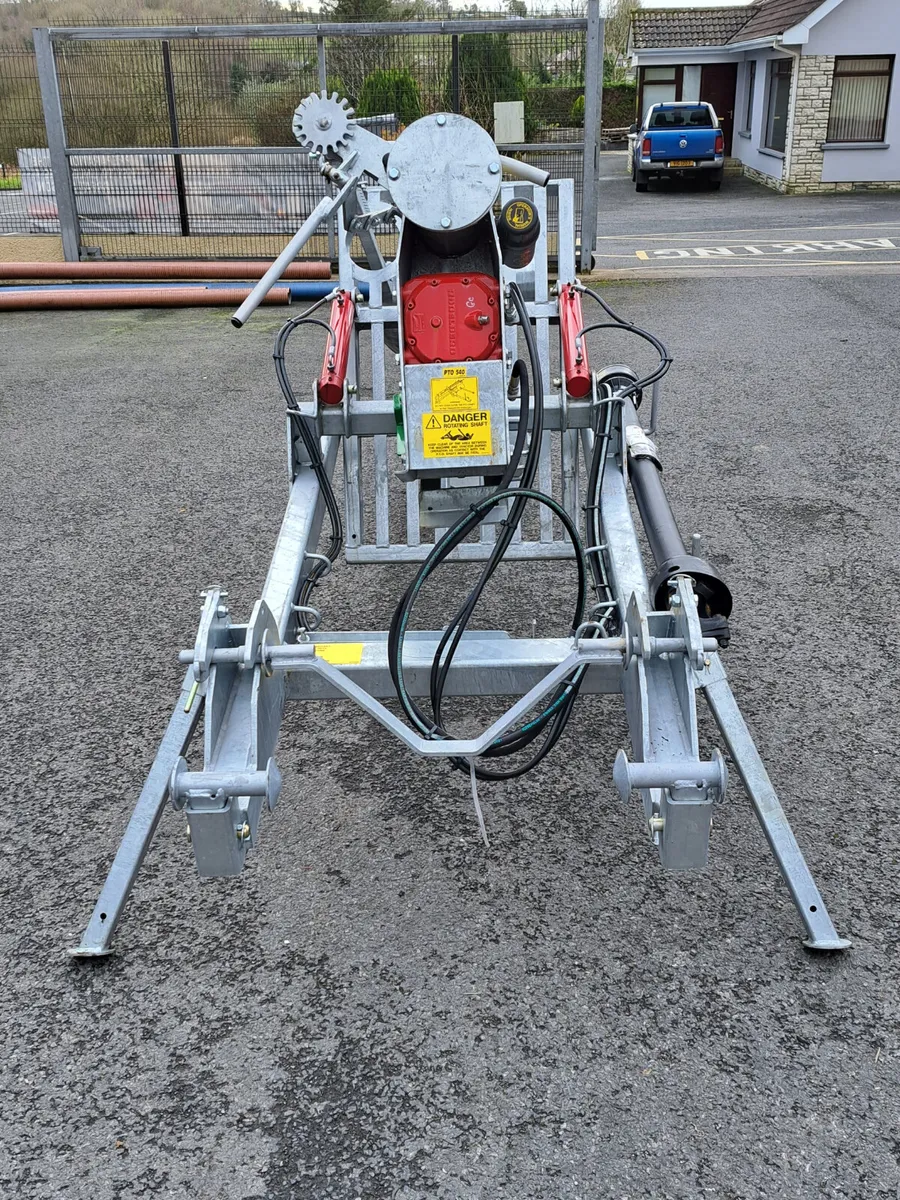

NC SUPER 3800 SLURRY PUMP

The 3800 is designed to meet the requirements of the large farmer and medium sized contractor who may have a 110 HP + tractor available for mixing/agitating tank. It has a flow capacity of 3800 gallons per minute (17,000 litres per minute). The main features are: Two point linkage c/w quick attach lifting bar Mixing spout revolves through a wide arc allowing slurry to be mixed in any direction including underneath tractor – The jetting nozzle can be locked in a range of up to 26 positions Depth can be adjusted in tank hydraulically using the centre ram Hydraulic control of centre pivoting action allows easier placement into tank Due to our unique arrangement of splitter box at pump outlet we have no loss of performance when using the pump to top fill Standard sizes which are available: 6’6” (1.98m); 7’6”(2.29m); 8’(2.44m); 9’(2.74m); – other sizes available on request All pumps are galvanised as standard – painted finish is available upon request Raising and lowering into tank is controlled hydraulically from tractor seat Machine can be parked in either sitting down or stand up position Static models without lift arms and height adjusting ram are also available in sizes 6’6” (1.98m); 7’6”(2.29m); 8’(2.44m); 9’(2.74m)
