Vintage Pioneer SX-434 Receiver/Amplifier.SERVICED
- 19 hours
- 42 views
- Macroom, Cork
Description

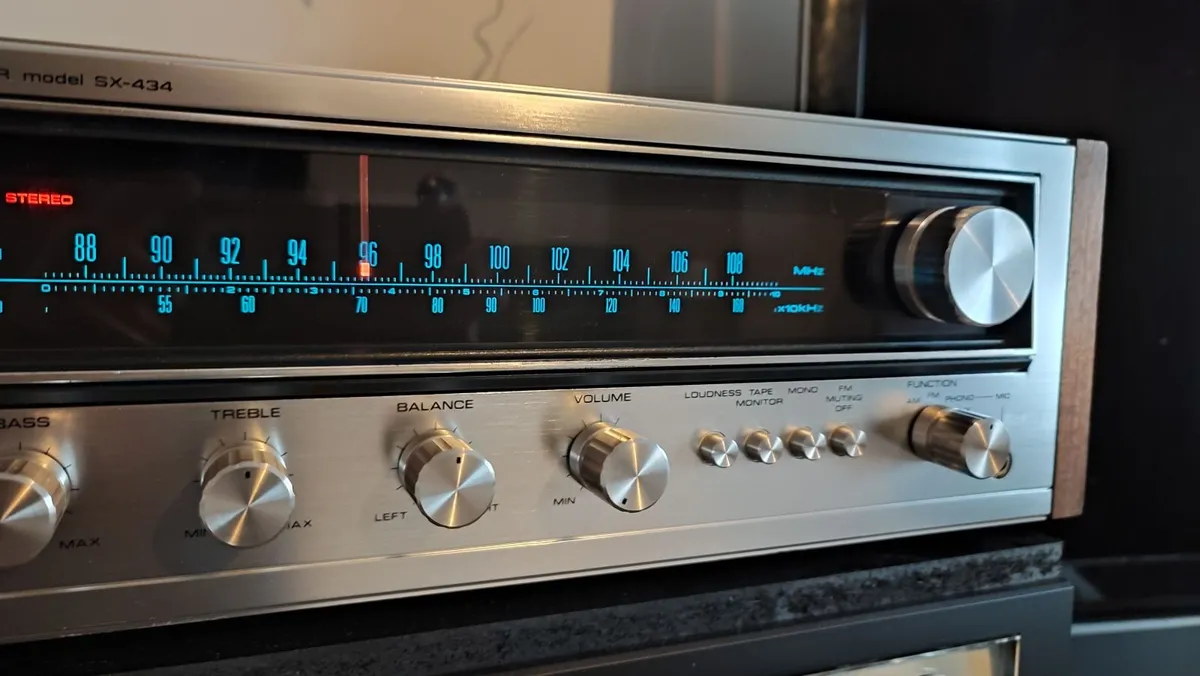

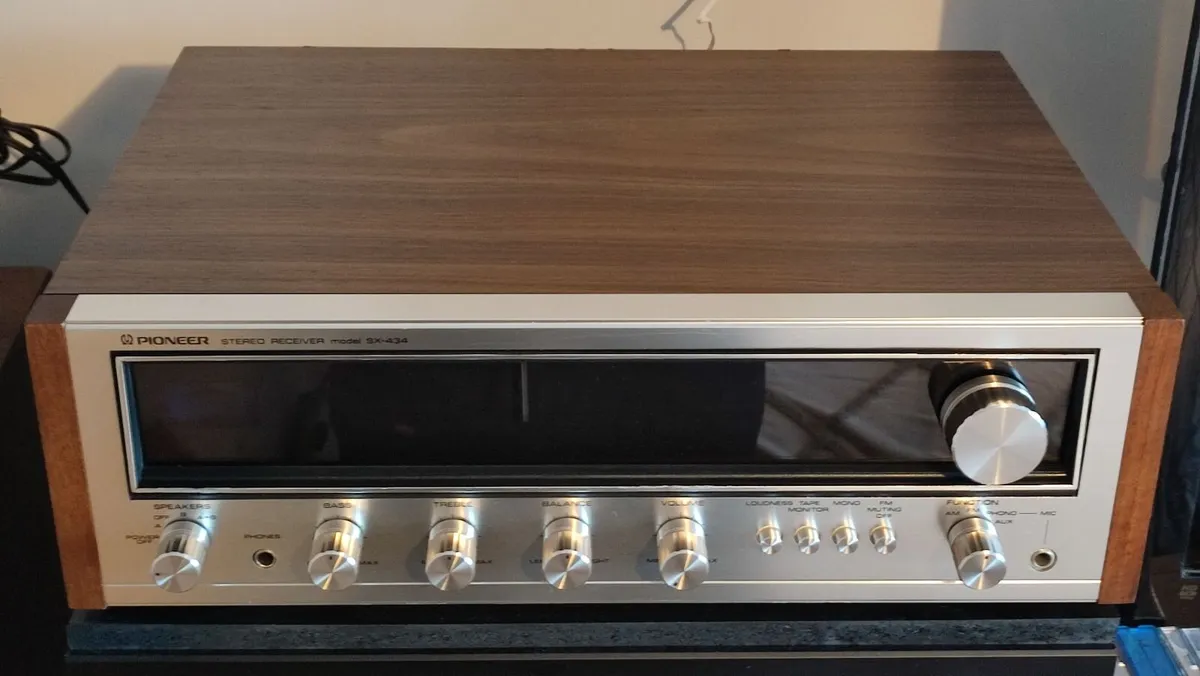

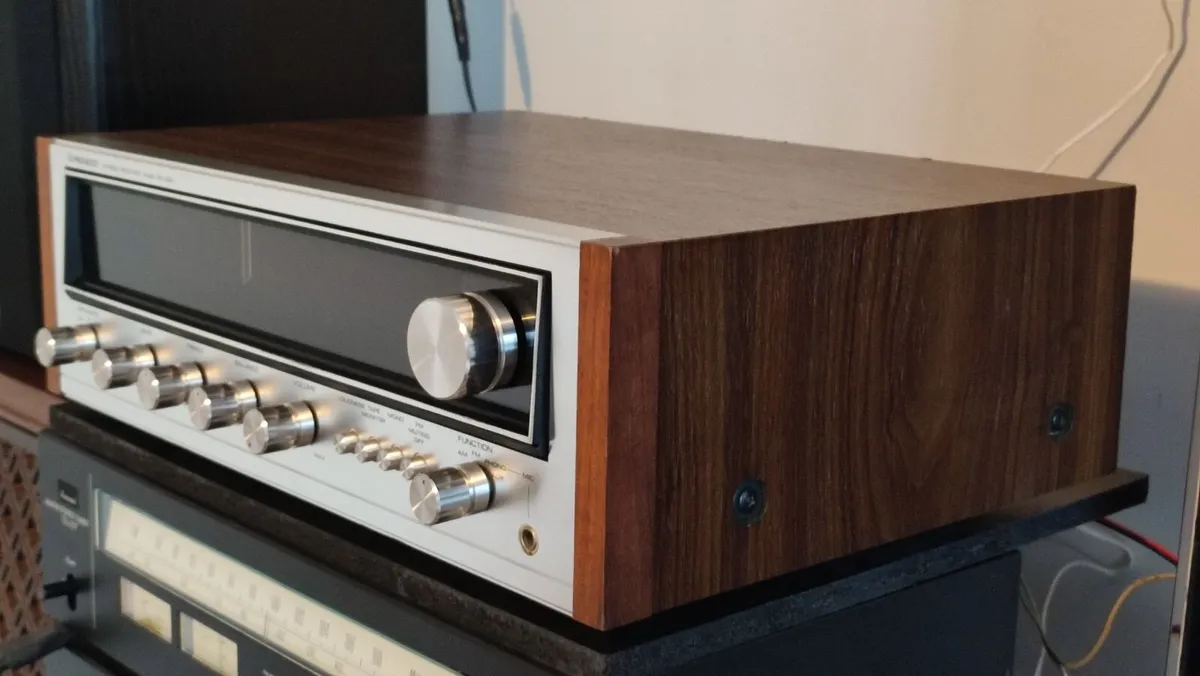

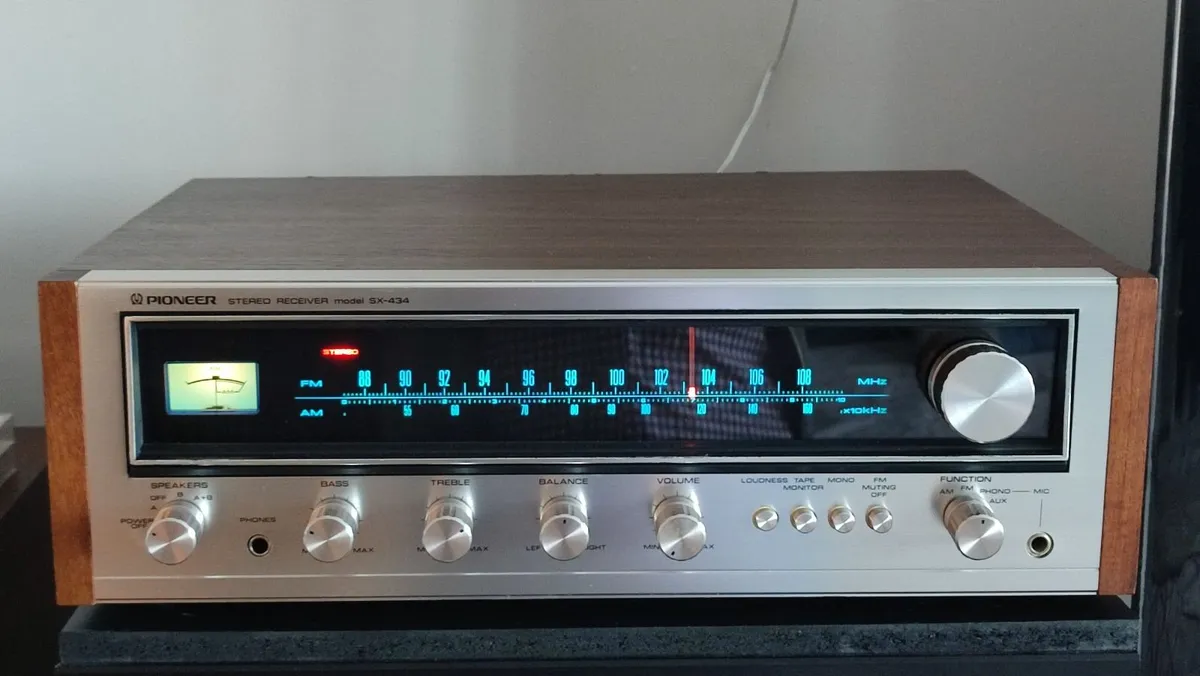

For sale beautiful example of Japan story from 70's. Receiver is like new! Fully cleaned and serviced. Main capacitors checked, most transistors changed, everything checked and prepared for new owner. Top cover got new varnish. Front pannel polished. New bulbs just fitted. Shipping no problem. Some specs: The SX-434 is Pioneer's budget priced FM/MW stereo receiver. It features a high performance FM front end with low noise FET and 3-gang frequency linear variable capacitor. Phase linear ceramic filters and an IC in the FM IF section provide high selectivity of 60dB. Other features include click stop tone controls, 2 pairs of speaker terminals and a headphone socket. Specifications Tuning range: FM, MW Power output: 15 watts per channel into 8Ω (stereo) Frequency response: 30Hz to 25kHz Total harmonic distortion: 0.8% Damping factor: 25 Input sensitivity: 10mV (mic), 2.5mV (MM), 150mV (DIN), 150mV (line) Signal to noise ratio: 65dB (mic), 70dB (MM), 90dB (line) Output: 150mV (line), 30mV (DIN) Speaker load impedance: 4Ω to 16Ω Semiconductors: 1 x FET, 3 x IC, 27 x transistors, 13 x diodes Dimensions: 430 x 140 x 347mm Weight: 8.1kg Accessories: FM T-type antenna Year: 1974
Some information displayed may be provided by third parties or identified using AI, and may not be fully accurate, complete, or up to date.
