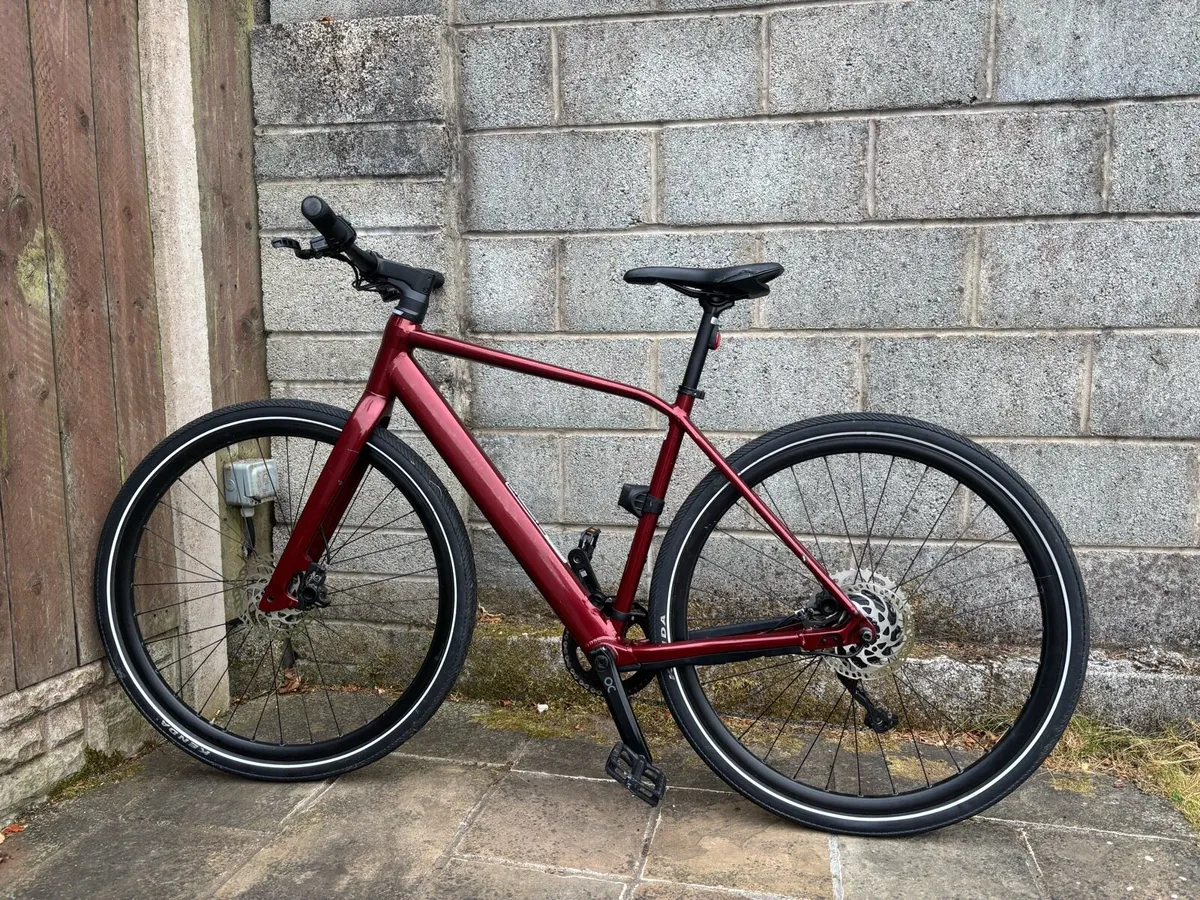

Orbea Vibe H30 - Electric ( Size M )

MOTOR & TOP SPEED Manhle ebikemotion X35 plus Class 1 (pedal assist – PAS) 250w geared rear hub (learn about e-bike motors) Max speed for motor cut down: 25 km/h (15 mph) Torque: 40Nm BATTERY Water-proof integrated battery to low-tube frame 36v, 248wh, 6.9 Ah Battery Management System (BMS) Charging in ~3 to 4 hrs from drained RANGE (based on brand information) Max Range: Approx. 70 km (43 miles) – PAS 1 (ideal conditions) Min Range: Approx 30 km (18 miles) – PAS 3 (extreme conditions) CONTROLLER, RIDING MODES & DISPLAY iWOC TRIO Three (3) PAS levels Walk mode added LED lighting system coding No display is included, but it can be fitted. Smartphone connectivity to access the other stats (ebikemotion) FRAME Sizes: M Aluminium hydroformed DRIVETRAIN SYSTEM Shimano Deore 10-speed 11-46t freewheel and 42t chainwheel KMC chain BRAKING SYSTEM Magura 160 mm rotor front and rear 2-piston Hydraulic system 2 finger adjustable reach levers OVERALL WEIGHT ~15 kg TYRES Nilon casing Kendra tyres 28″ diameter 700x45c front and rear tyre Puncture resistant (Threads per Inch – TPI 60) Allow rims 30-60psi Presta valve SENSORS Cadence and speed. FEATURES Single aluminium plate for chainring protection Embedded front and rear lights with 60 and 11 lumens An additional 208Wh battery can be connected (externally) for an extended range. Maybe 50 km more No kickstand is included No rear rack is included, but mounts are ready in the frame. Designed to carry 15 kgs if a rear rack is installed
