DELTA MS Drain Membrane 20x2m protect

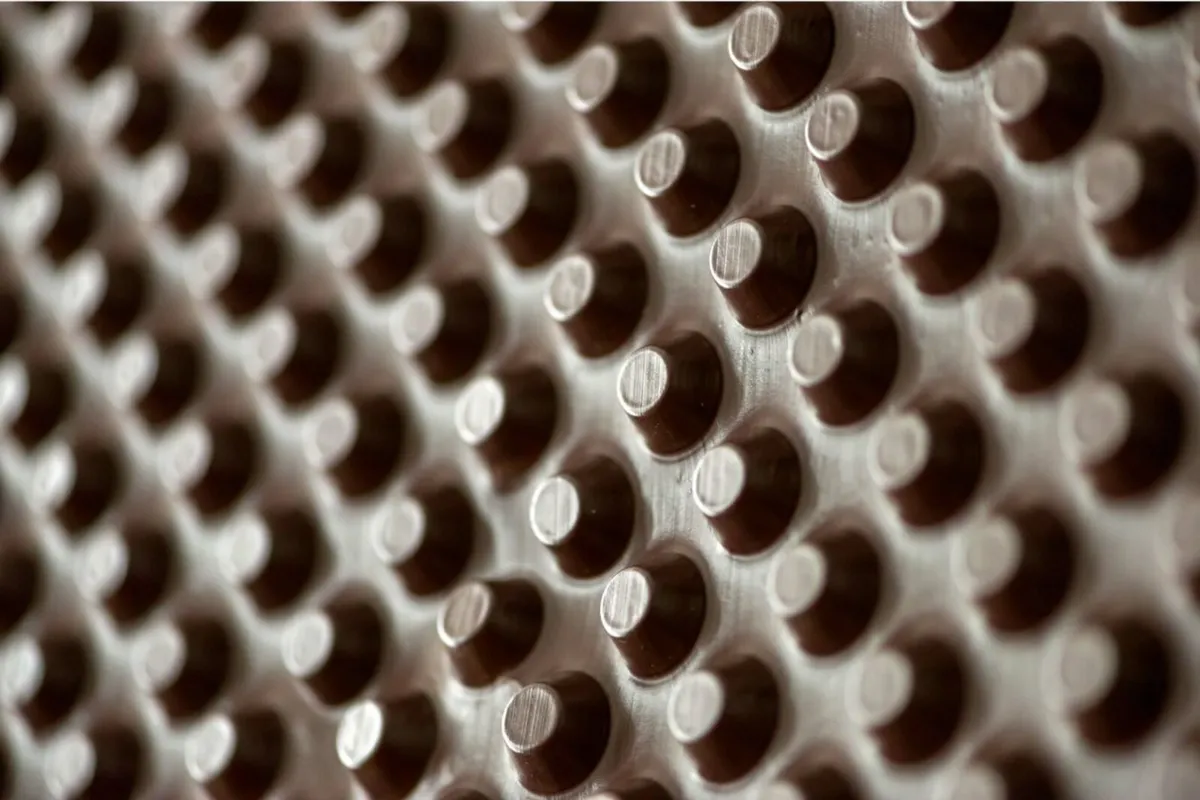

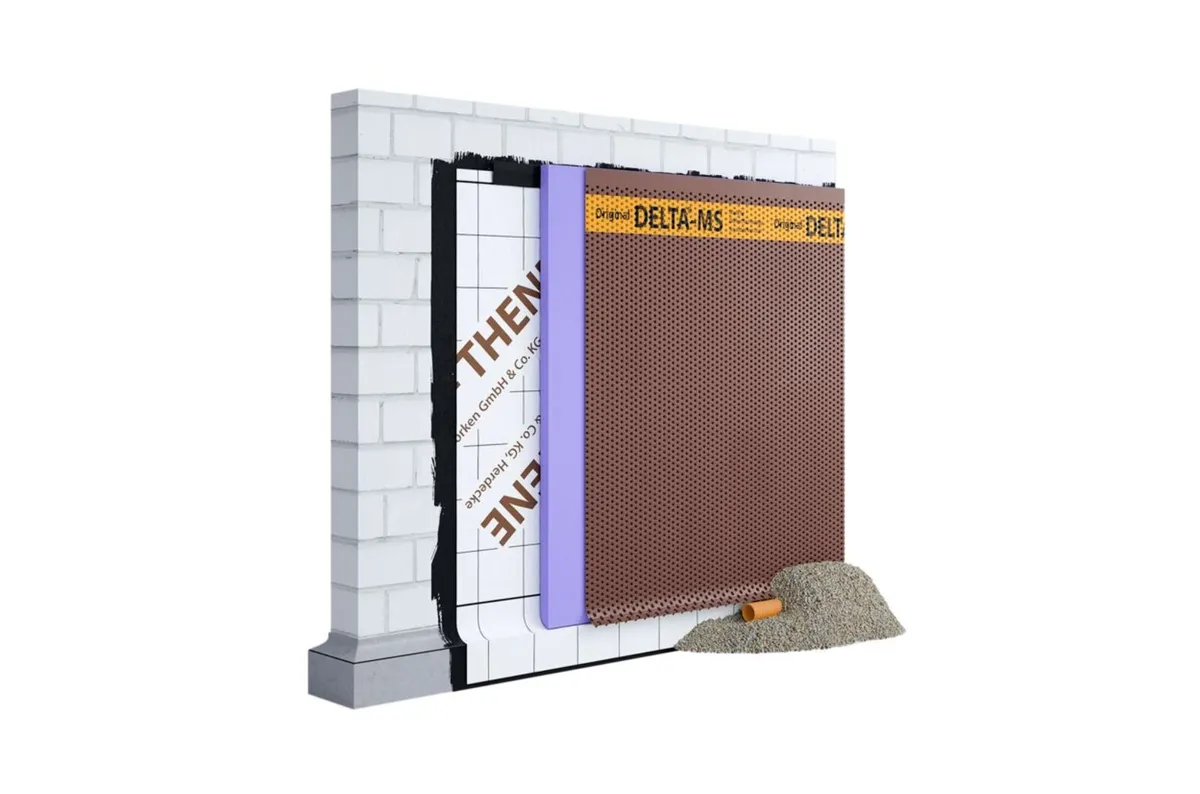

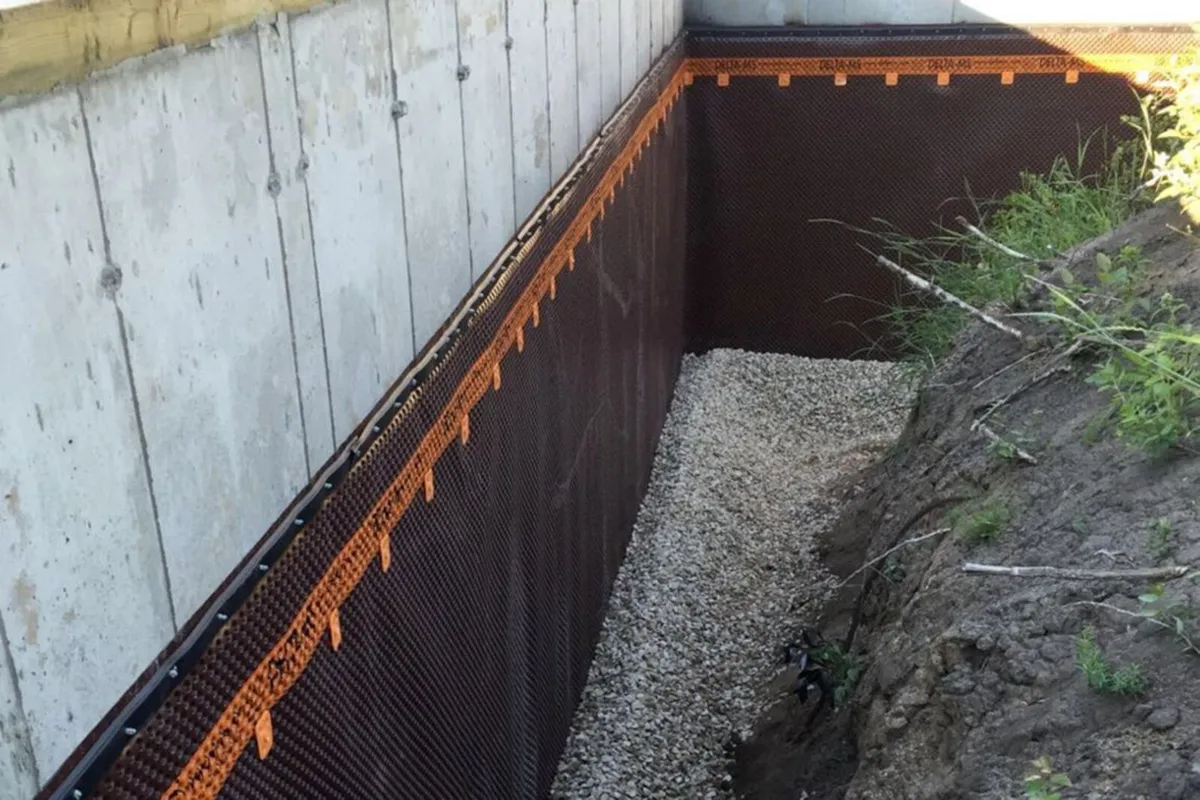

DELTA MS provides a reliable separation between foundation walls and damp ground. The dimples in the form of truncated cones form ventilation channels over the entire surface of the wall, which allows excess moisture to be removed from it. After backfilling and compaction, the DELTA®-MS membrane acts as a deformation and load-damping layer. Uniform load distribution through more than 1800 projections per square meter provides a comfortable working environment for the waterproofing material. DELTA®-MS is very pressure resistant, with a compression strength of approx. 250 kN/m². The membrane also provides reliable protection for the insulation laid around the perimeter of the underground structure. Advantages Very good resistance DELTA®-MS is resistant to chemical and microbiological pollution. Thanks to its resistance to rotting, it offers a material durability in the installed state of a minimum of 25 years. In addition, the sheet is safe for drinking water. Regular load distribution With approx. 1800 knobs per square meter and the special knobbed structure, when using the product DELTA®-MS, there is a favourable pressure distribution and a low point load on the insulation of the perimeter. Optimised laying Because of the flat edge on one side, overlaps can be made in an easy way. The diagonal knob structure additionally enables a straight kinking enabling the sheet to rest on the ground without any gaps. The perfect alternative to the conventional blinding layer made of lean concrete In comparison with the conventional blinding layers made of lean concrete, the use of the product DELTA®-MS has the advantage that approx. 5 cm less excavation is required, and the concrete base can be created immediately after the laying of the sheet. Furthermore, the DELTA®-MS prevents the cement paste from seeping away by protecting the sole from rising damp. Controlled water drainage when securing excavations through shoring and in case of tunnel building Contact 0897 218 5580
