DBV-1 3/4" DN20 INSULATED DUAL-FUNCTION CO

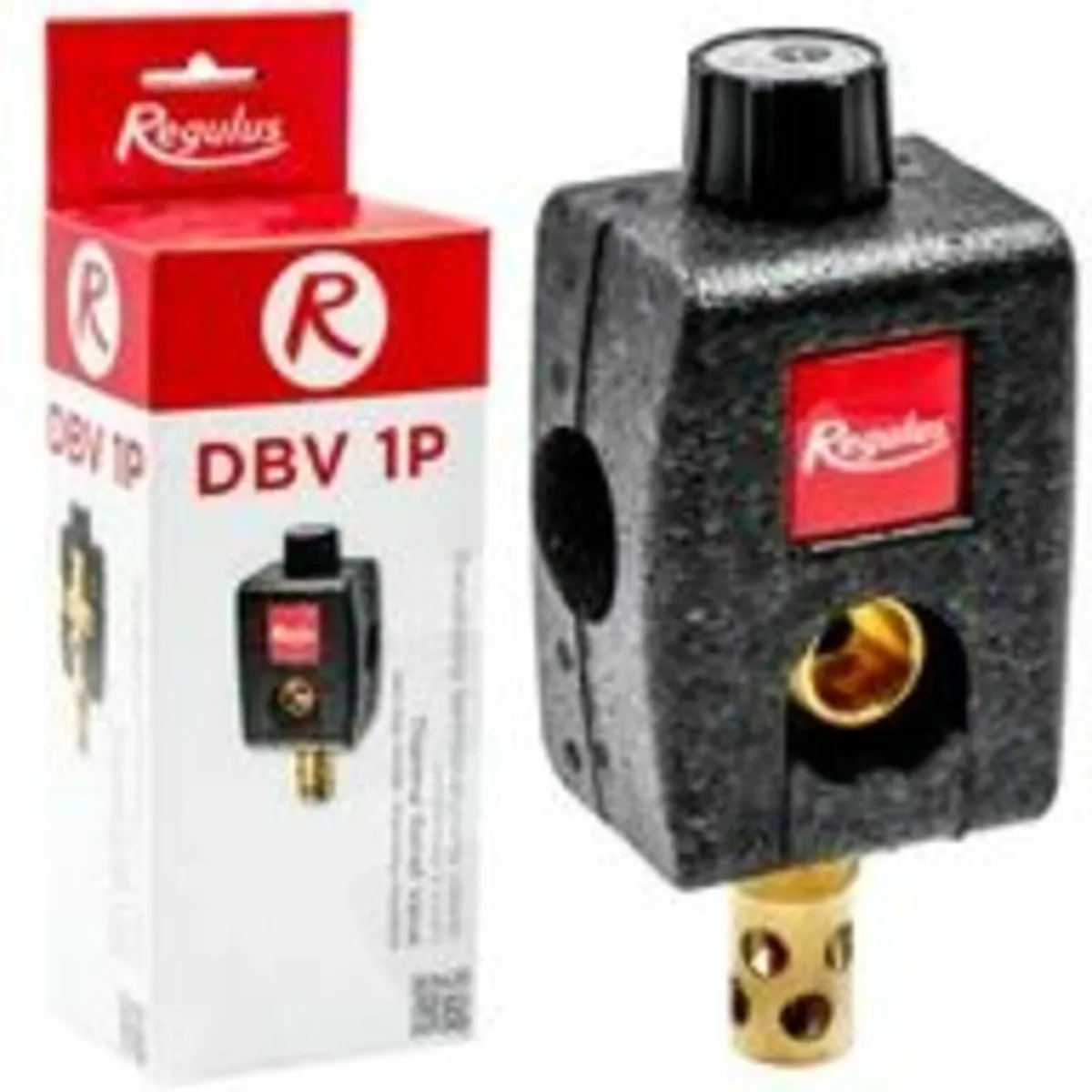

REGULUS DBV-1 3/4" DN20 INSULATED DUAL-FUNCTION COOLING VALVE Overheating can occur during use of solid fuel boilers. The most common cause is a power outage. The boiler's circulation pump, containing hot fuel, will stop, and the heating water temperature in the boiler will begin to rise rapidly because heat is not being removed from the boiler. A thermostatic valve, which operates without electricity, ensures safe boiler cooling in such situations. When the valve reaches 100°C, it opens the supply of cooling water from the water supply, which directly cools the boiler and thus protects it from overheating. Opening temperature: 100°C (+0°C -50°C) Maximum operating temperature: 120°C Maximum boiler pressure: 4 bar Maximum water pressure Cooling pressure: 6 bar Nominal water flow rate at Δp 1 bar: 1.90 m3/h Mounting thread: 3/4" Mounting thread measurements: Outside thread: 26.2 mm Inside thread: 24.9 mm Length of measuring element with thread: 52.1 mm
