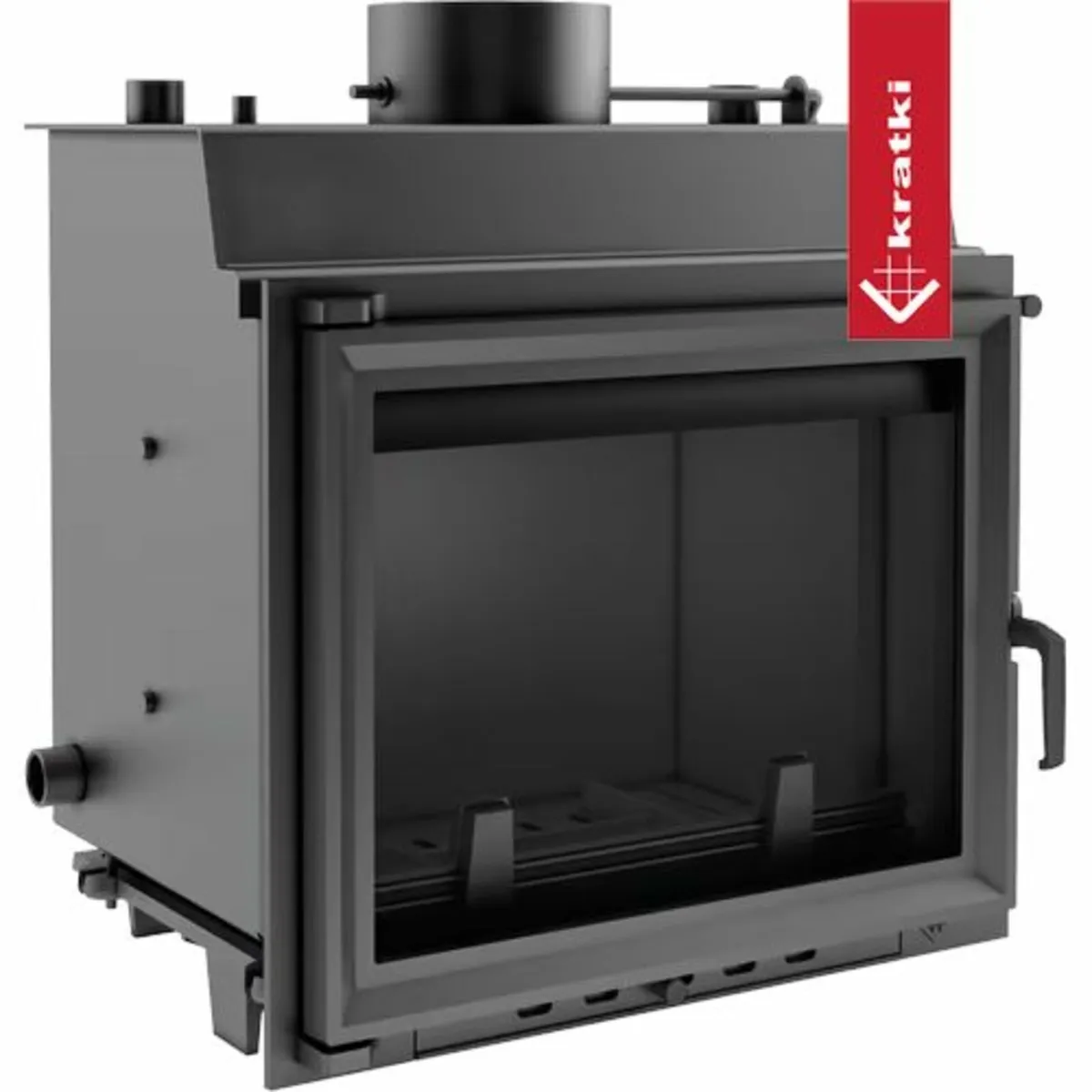

INSET BOILER STOVES MAJA 8 kW

MAXIMUM USE OF ENERGY The body and the front of the insert are resistant to high temperatures thanks to the high quality steel used in production. Built in smoke tubes and high flue, which increase the heat exchange surface. Increased heat exchange surface due to built-in smoke tubes and high flue. Regulation of chimney draft using built-in damper. Manual control over the combustion process carried out by ash tray regulator. Nominal power (kW) 8 Heating power range (kW) 3.5 - 10 Thermal Efficiency (%) 80 Max working pressure (bar) 2 Water capacity (l) 18 Flue gas temperature (oC) 236 Max billet length (cm) 33 Minimum required active field of outlet grilles (cm2) 120 Minimum required active area of inlet grilles (cm2) 60 Door opening Left Materials Steel, Cast iron diameter of the flue gas outlet 180 Width (cm) 60 Height (cm)67.7 Depth (cm) 39 Weight (kg) 109 Energy class A Average power from water (kW) 6 Heat output for space heating (kW) 2 Seasonal Energy Efficiency (%)70 CO emission (mg/m3)1235 NOx emission (mg/m3)140 OGC emission (mg/m3 63 EEI 105 Pollen emission (mg/m3) 31 CO emission (at 13% O2) ≤ given in % 0.098 Certifications / Compliance
