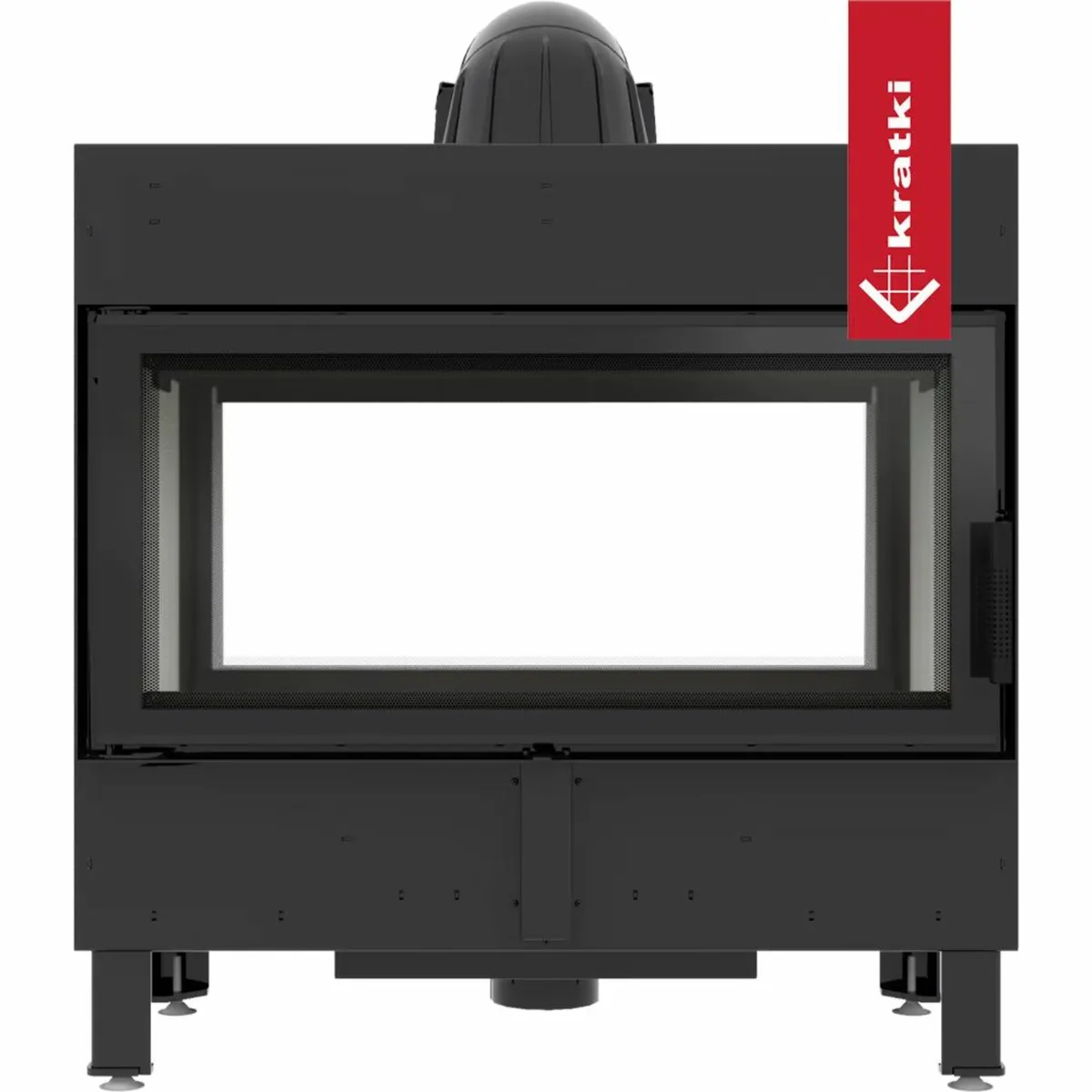

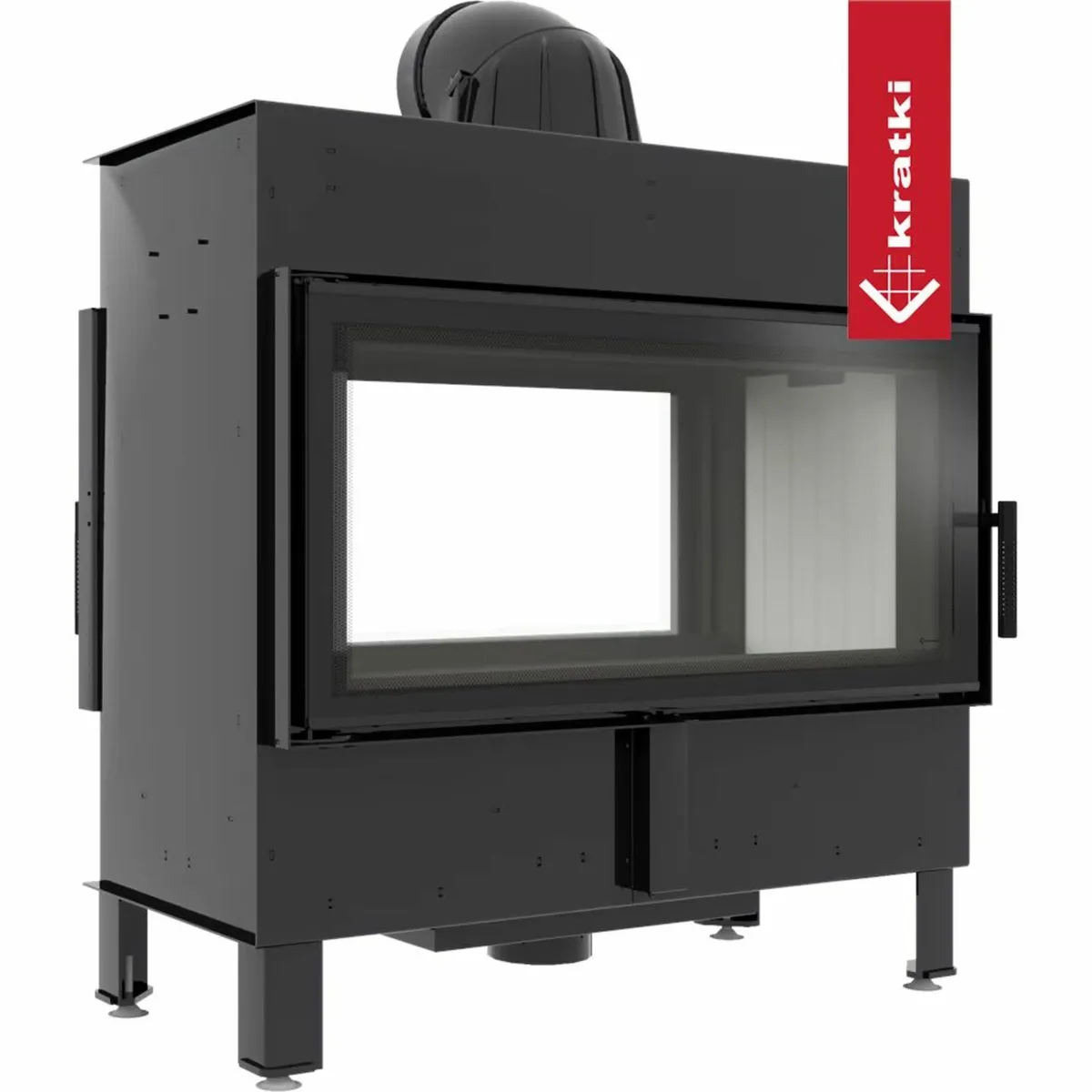

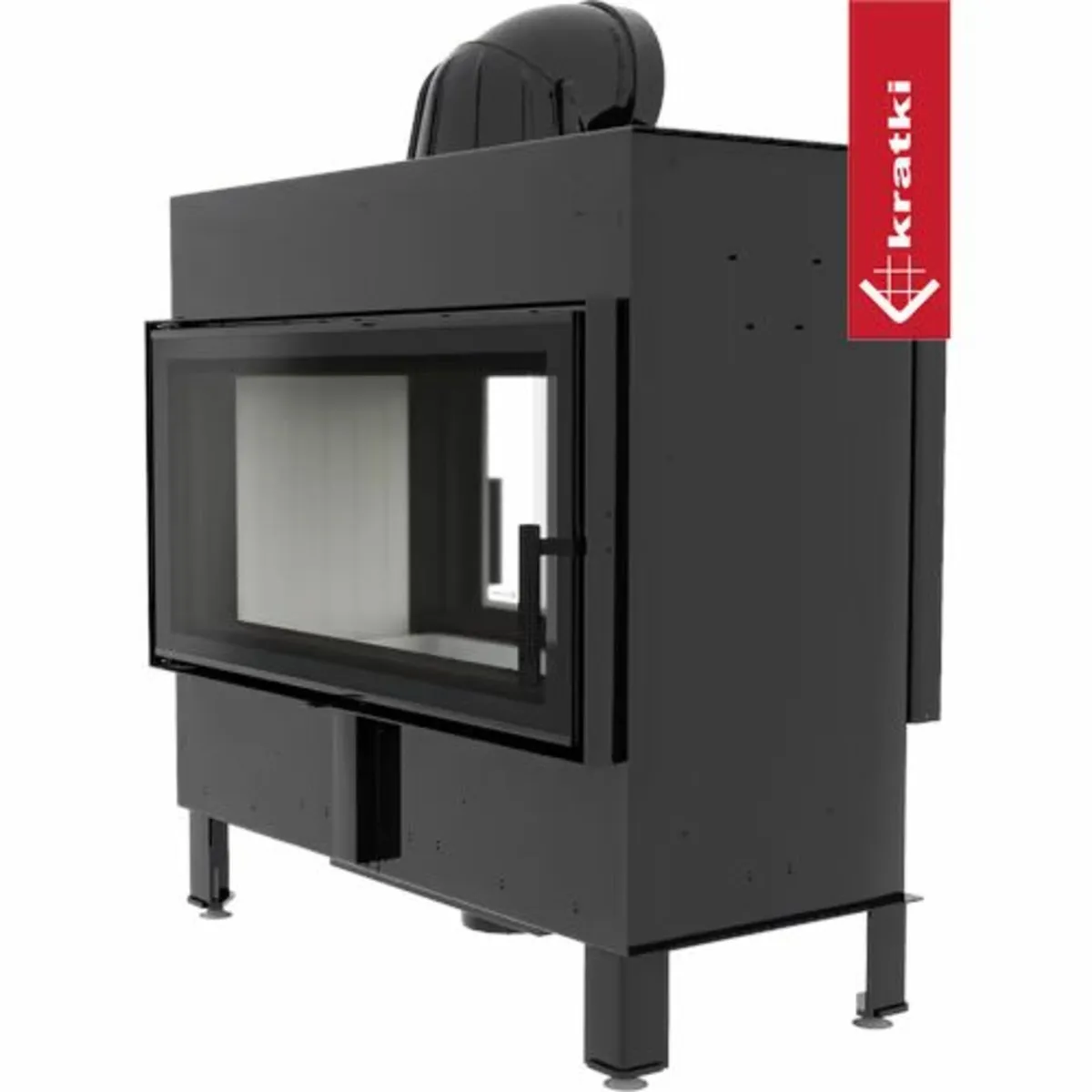

INSET STOVE LUCY TUNNEL 16 kW

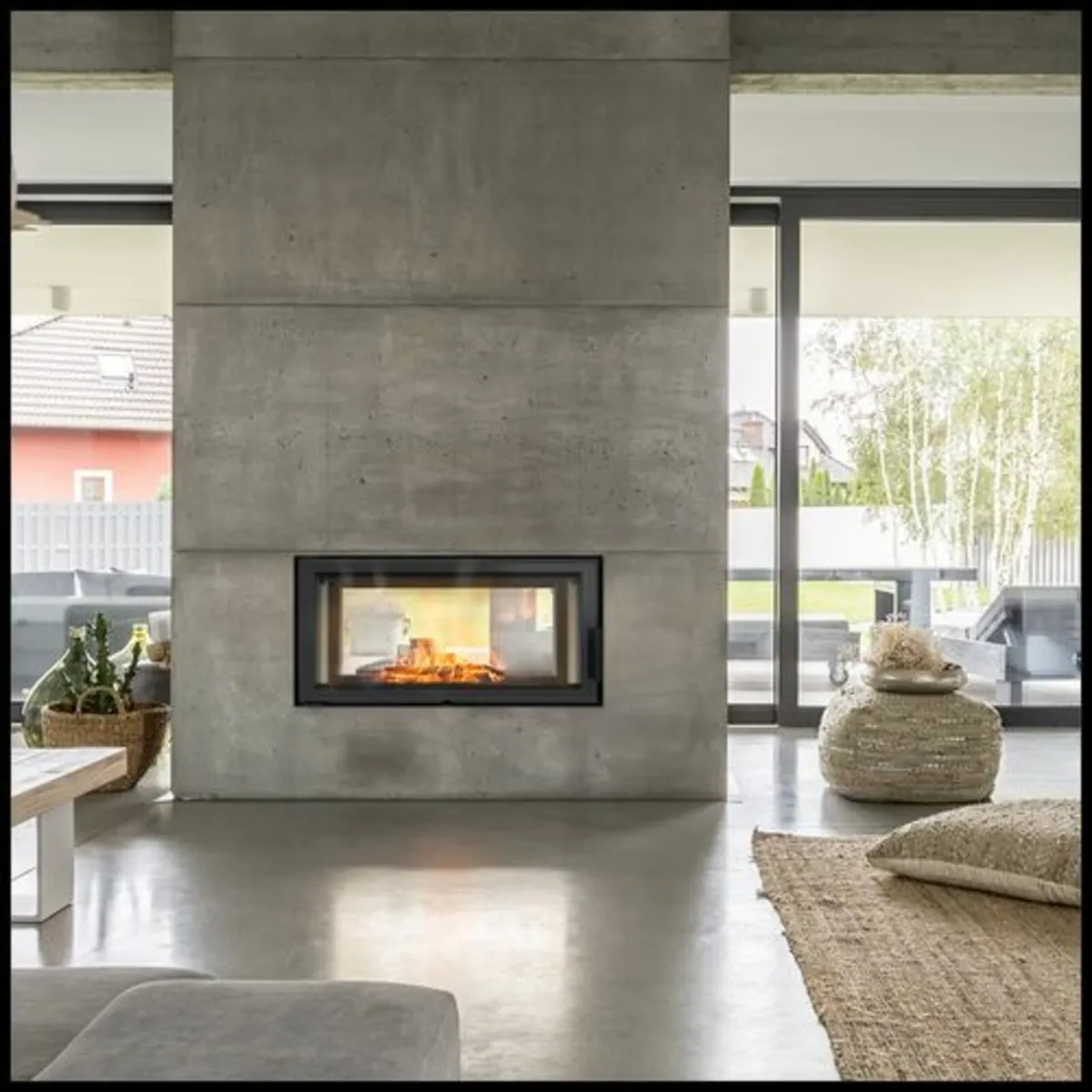

MODERN DESIGN The inset has two doors – front and back ones (instead of the back wall), thanks to this solution the heat can be emitted in both directions. This type of insert is usually chosen to install between two adjacent rooms for example living room and dining room or bedroom. The insert has singular decorative glass thanks to that it looks elegant and modern. Such solution visually enlarges the front of the insert and emphasizes the view of the fire. The door of the insert has comfortable handle. Version Tunnel Nominal power (kW) 16 Heating power range (kW) 7.0-20.0 Thermal Efficiency (%) 81 Materials Steel Door opening Left Width (cm) 88.3 Height (cm) 126 Depth (cm) 63.1 weight 224 kg Certifications / Compliance Energy class A MAXIMUM USE OF ENERGY More efficient combustion and longer maintenance of temperature by lining the combustion chamber with ceramic material TERMOTEC which accumulates heat and raises the temperature in the furnace. Full combustion on the dust thanks to two deflectors which extend the exhaust path. This process increases the efficiency of burning and guarantees better energy use. It also minimizes the emission of harmful substances to the atmosphere. Air supply to the inserts comes only from outside thanks to the inbuilt air intake connector fi 125 mm. It is controlled by an adjustable throttle with one controller beneath the door. This solution excludes errors of improper use. The whole mechanism works very quietly and flawlessly. In this insert there is double air system of combustion chamber. Primary air which enables setting a fire is supplied under the grate. Additionally, this insert is equipped with Clea Galss System (air curtain), so the air is supplied directly to the glass through a system of channels located on the sides of the fireplace. In this way oxygen is supplied to the upper part of the combustion chamber, were happens post-combustion of gases produced while combustion of wood.
