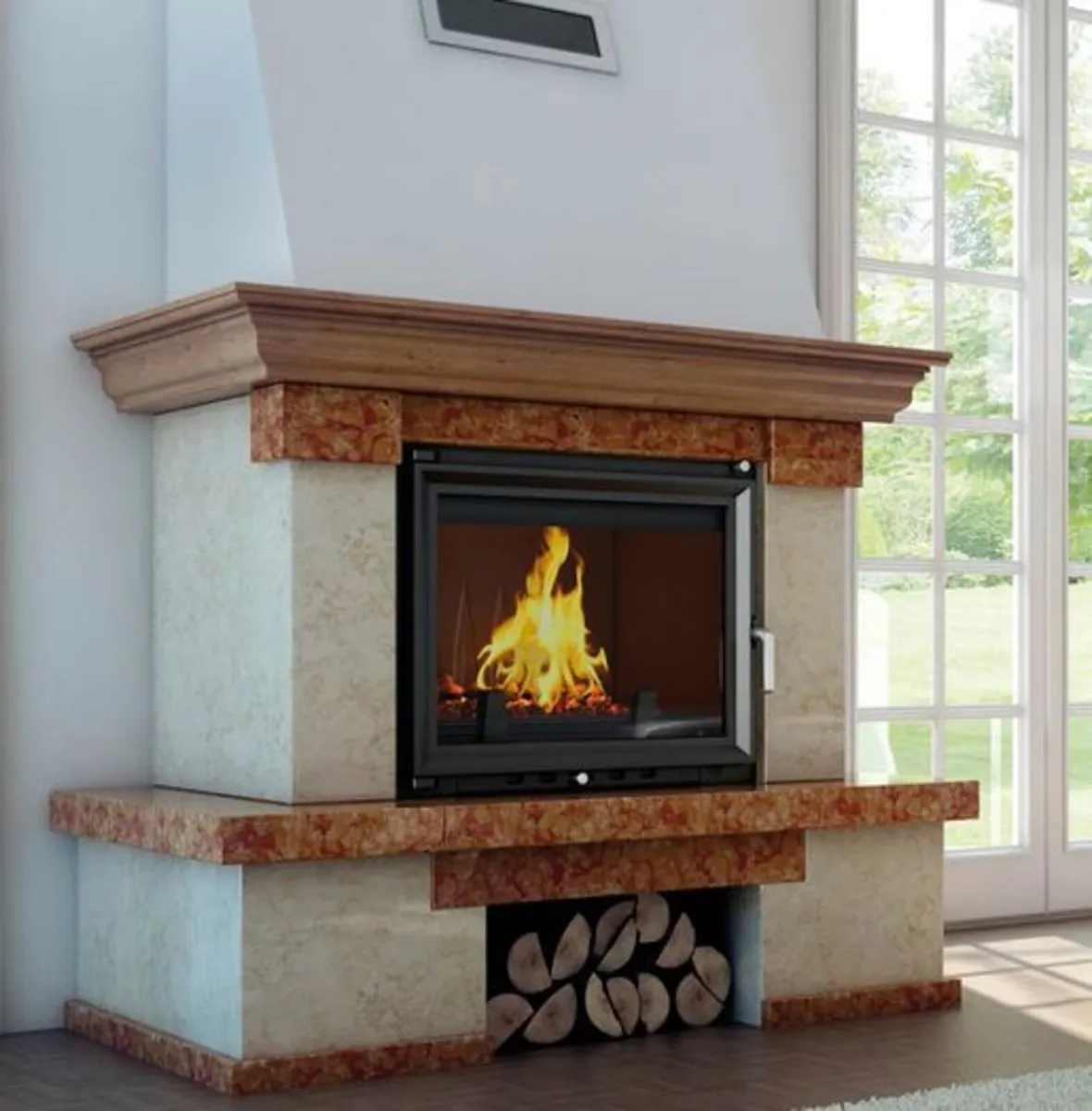

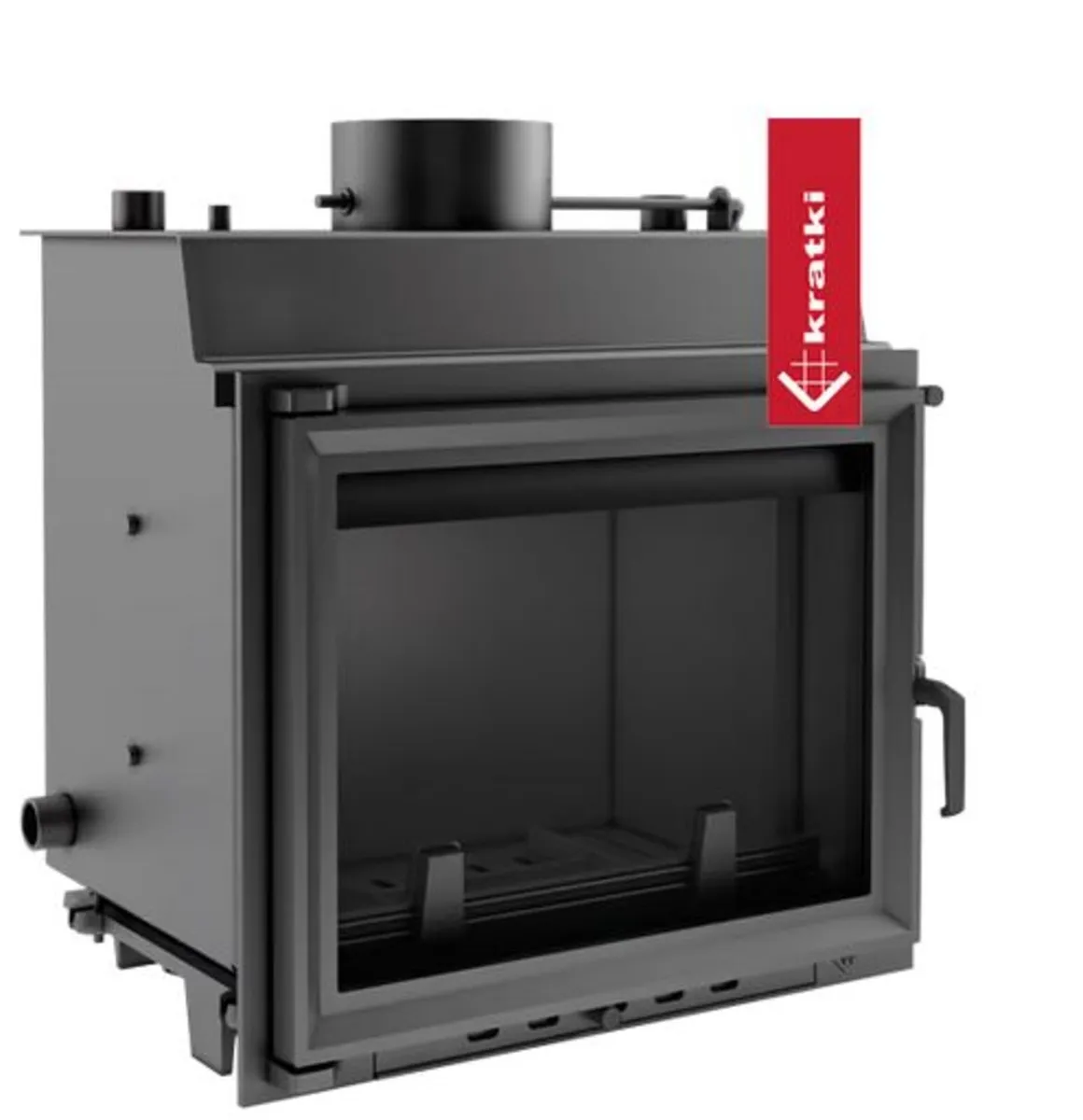

Water heating inset stove KRATKI MAJA 8 kW

Nominal power (kW) 8 Thermal Efficiency (%) 80 Energy class Energy card (UE) 2015/1186 Certificates Ecodesign BImSchV 2 Weight (kg) 109 MAXIMUM USE OF ENERGY The body and the front of the insert are resistant to high temperatures thanks to the high quality steel used in production. Built in smoke tubes and high flue, which increase the heat exchange surface. Increased heat exchange surface due to built-in smoke tubes and high flue. Regulation of chimney draft using built-in damper. Manual control over the combustion process carried out by ash tray regulator. SAFETY AT THE HIGHEST LEVEL Perfect tightness thanks to the solid welds made in a noble gas shielding. All steel elements are laser cut and bent on CNC bending machines. Protection against overheating by the built-in coil pipe - connector input / output 1/2”. Nominal power (kW) 8 Heating power range (kW) 3.5 - 10 Thermal Efficiency (%) 80 Max working pressure (bar) 2 Water capacity (l) 18 Flue gas temperature (oC) 236 Max billet length (cm) 33 Minimum required active field of outlet grilles (cm2) 120 Minimum required active area of inlet grilles (cm2) 60 Door opening Left Base material Steel, Cast iron Energy class A Average power from water (kW) 6 Heat output for space heating (kW) 2 Seasonal Energy Efficiency (%) 70 CO emission (mg/m3)1235 NOx emission (mg/m3) 140 OGC emission (mg/m3) 63 EEI 105 Pollen emission (mg/m3) 31 We also install 0852282331
