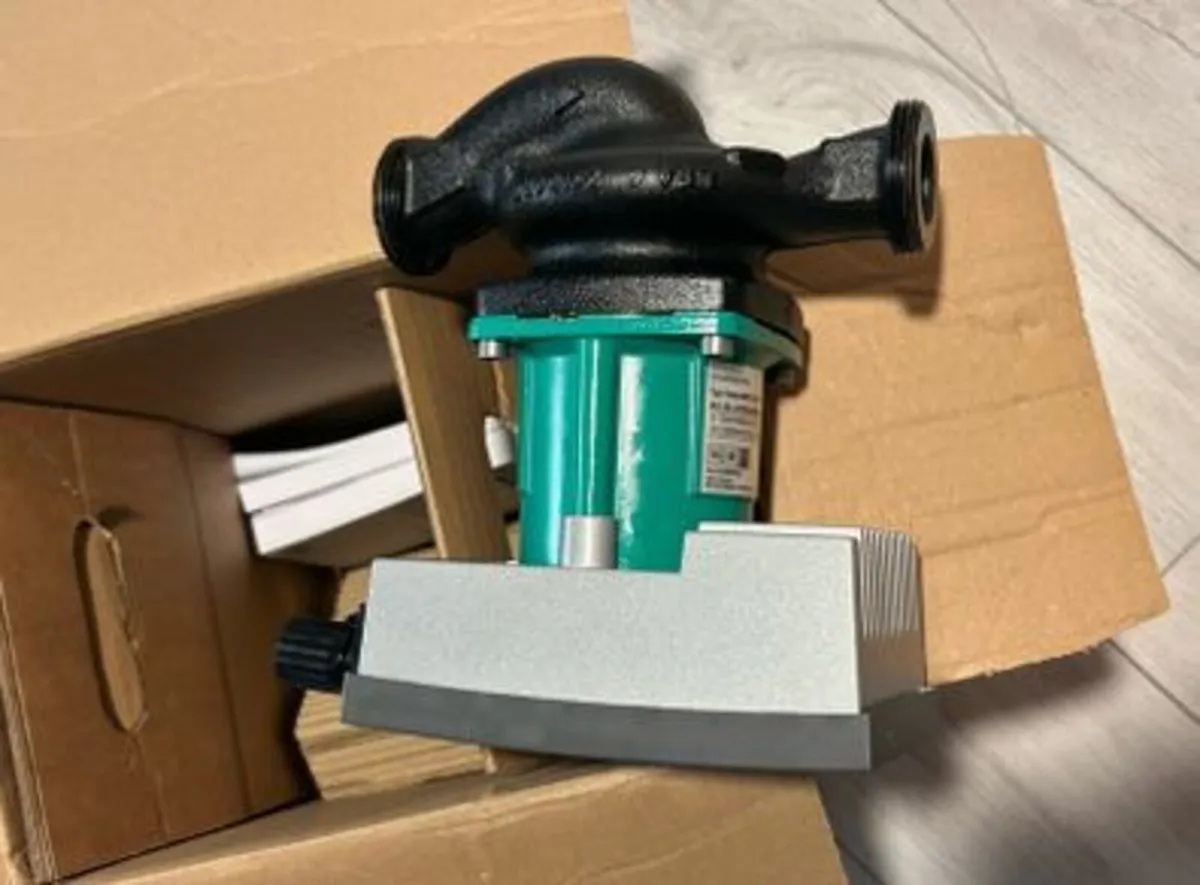

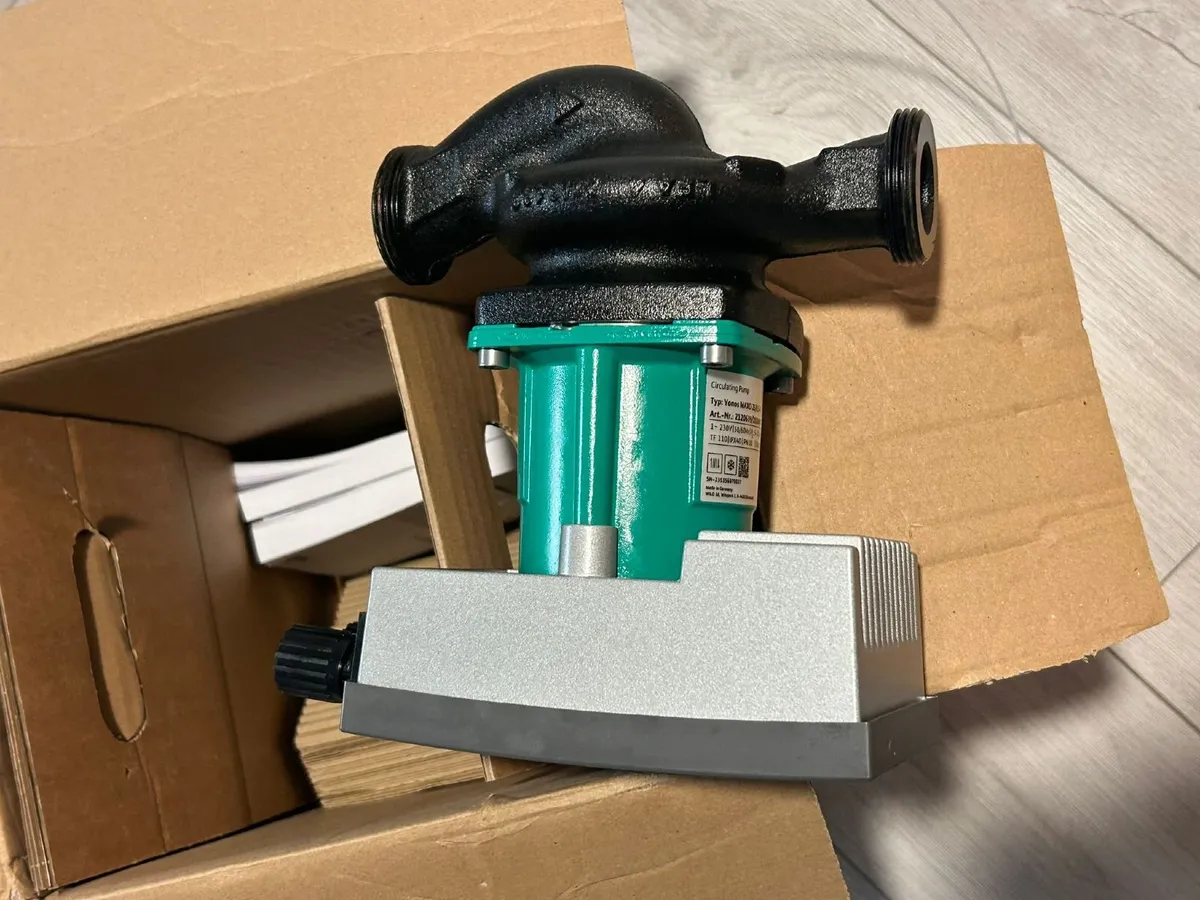

Wilo Yonos MAXO 25/0,5-7

Description Condition: New Box opened and pump was tested Yonos MAXO 25/0,5-7 Hydraulic data Maximum operating pressure PN 10 bar Head max H max 7,5 m Flow max Q max 8,1 m³/h Minimum suction head at 50 °C m 3 m Minimum suction head at 95 °C m 10 m Minimum suction head at 110 °C 16 m Min. fluid temperature Tmin -20 °C Max. fluid temperature Tmax 110 °C Min. ambient temperature Tmin -20 °C Max. ambient temperature Tmax 40 °C Motor data Energy efficiency index (EEI) * ≤0,20 Mains connection 1~230 V ±10%, 50/60 Hz Min current Imin 0,08 A Max current Imax 1 A Rated power P2 85 W Min. speed nmin 1000 1/min Max. speed nmax 3700 1/min Power consumption P1 min 5 W Power consumption P1 max 120 W Emitted interference EN 61800-3;2004+A1;2012 /residential area (C1) Interference resistance EN 61800-3;2004+A1;2012 /industrial environment (C2) Threaded cable connection 2 x M20x1.5 Insulation class F Protection class IPX4D * The benchmark for the most efficient circulators is EEI ≤ 0.20 Materials Pump housing Grey cast iron Impeller PPS-GF40 Shaft Stainless steel Bearing Carbon-graphite Installation dimensions Pump connection G 1½ Pump connection (alternative designation) RP 1 Port-to-port length L0 180 mm
