MPPT Charge Controller Solar

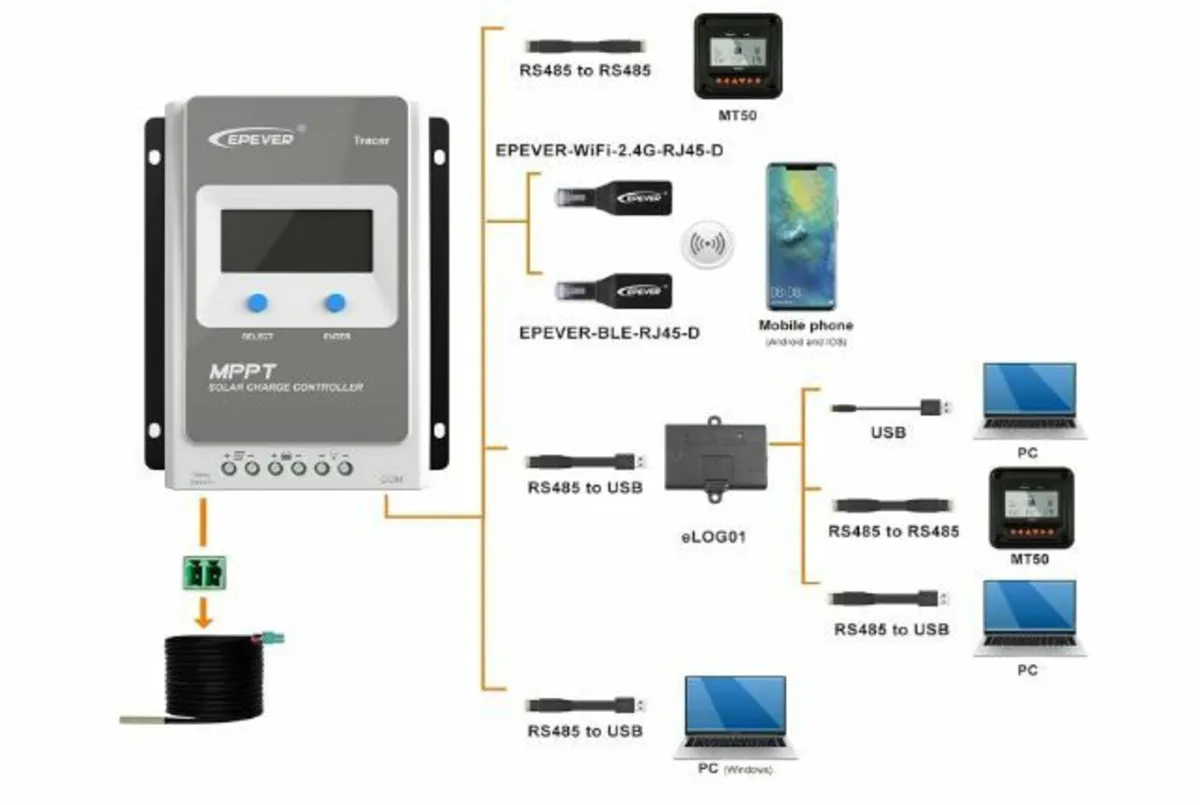

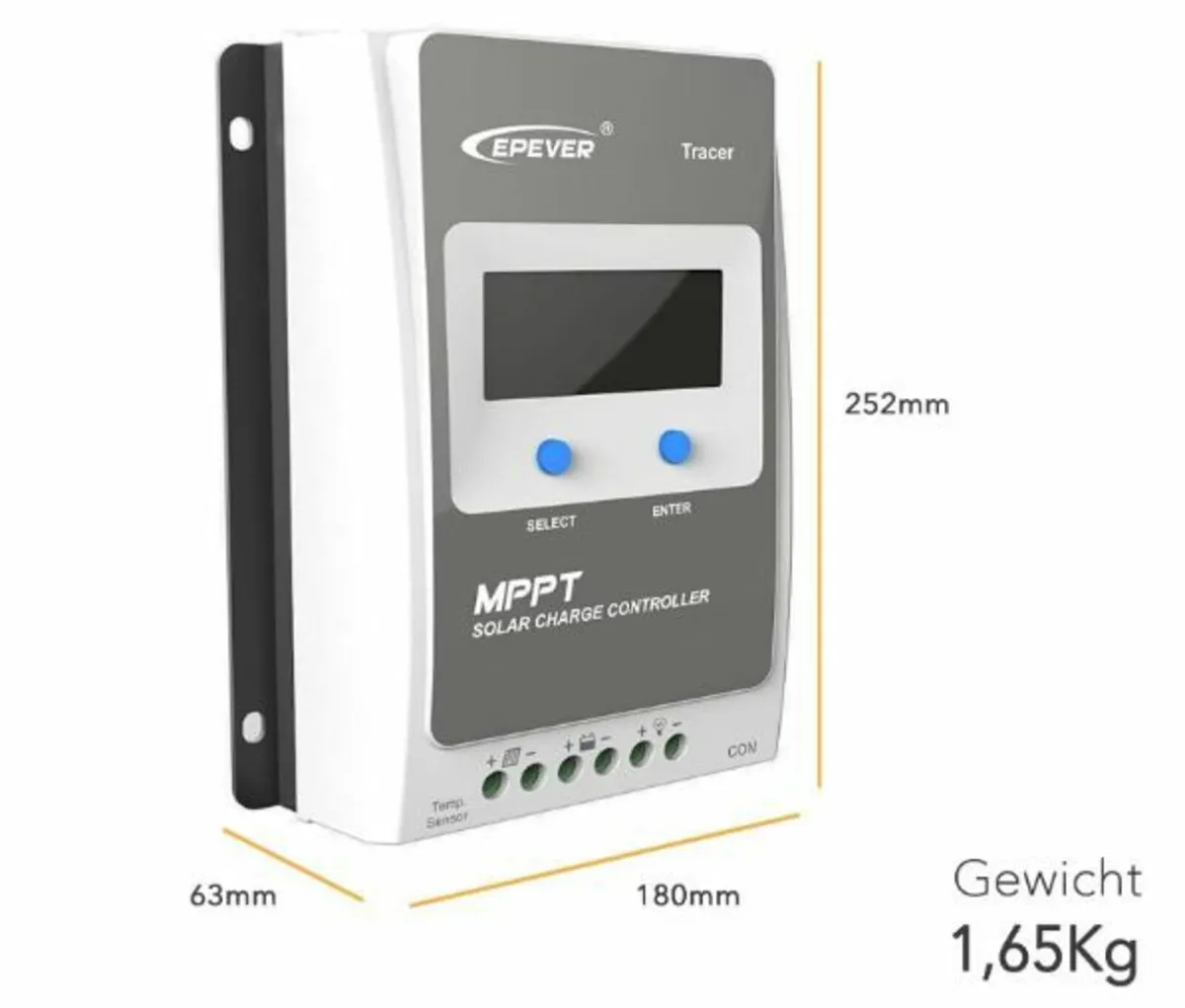

Shipping Nation wide 2-4 working days About this item Highlights: The Tracer AN series is an updated version of the EPEVER MPPT solar charge controller. With the advanced MPPT (Max Power Point Tracking) technology, the efficiency of energy conversion in the solar system is increased by 10% to 30%. Commen negative grounding is ideal for motorhomes. The LCD with backlight shows the operating status. [Technical data] Rated voltage: 12/24VDC car; Rated charging power: 520W/12V, 1040W/24V; Rated charging current: 40A; Discharge current: 40A; Max. PV open circuit voltage: 100 V; RS485 interface: 5 VDC/100 mA; operating temperature: -25 °C to +45 °C; protection class: IP30; dimensions: 252 x 180 x 63 mm; weight: 1.65 kg [Protection functions] Large electronic protection against PV reverse polarity, PV overcharge current PV short circuit; overvoltage and undervoltage of the supply input; battery reverse polarity, overvoltage and over-discharge of the battery, load short circuit and overload; overheating [Support Battery Type] Lead-acid battery: AGM, GEL, Flooded, USER; Lithium battery. Additional accessories such as eBox Wifi/Bluetooth, USB RS485 cable (connection via communication interface) are required for parameter adjustment of the lithium battery. Certificates & Warranty: CE, FCC, and RoHS,
