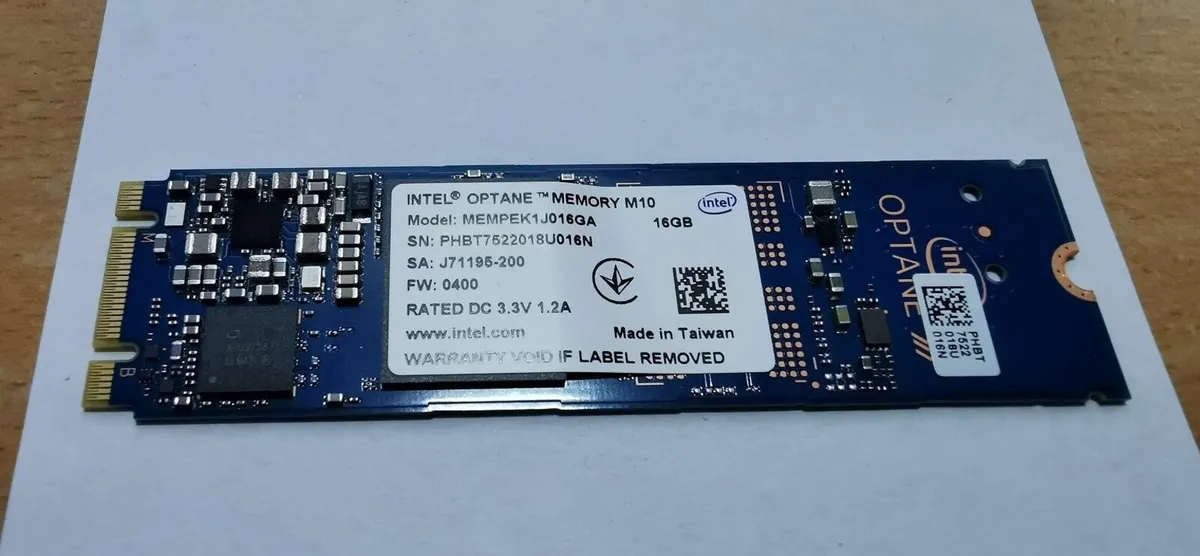

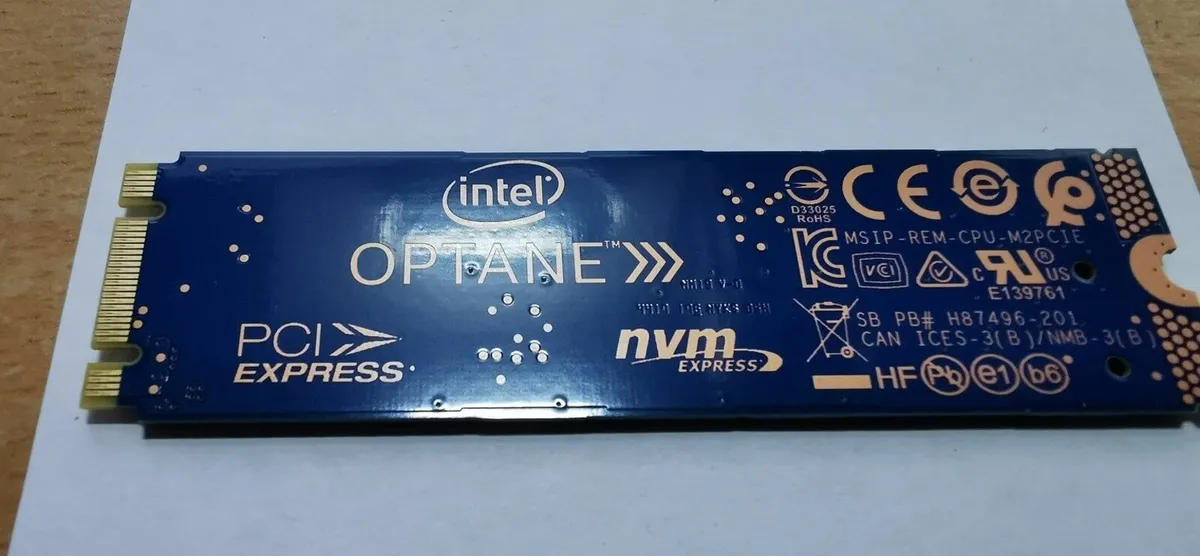

Intel Optane 16GB Memory M10 Series

Intel Optane 16GB Memory M10 Series Technical Specifications Capacity : 16 GB Product Collection : Intel Optane Memory M10 Series Interface PCIe 3.0 x2, NVMe Form Factor M.2 22 x 80mm Launch Date : Q1'18 Lithography Type : 3D XPoint Performance Sequential Bandwidth - 100% Read (up to) 900 MB/s Sequential Bandwidth - 100% Write (up to) 150 MB/s Random Read (8GB Span) (up to) 190000 IOPS Random Read (100% Span) 190000 IOPS Random Write (8GB Span) (up to) 35000 IOPS Random Write (100% Span) 35000 IOPS Latency - Read 8 µs Latency - Write 30 µs Power - Active 2W Power - Idle L1.2 : 8mW Reliability Operating Temperature (Maximum)85 °C Operating Temperature (Minimum)0 °C Vibration - Operating 2.17 GRMS (5-700 Hz) Vibration - Non-Operating 3.13 GRMS (5-800 Hz) Shock (Operating and Non-Operating) 1000 G/0.5msec Operating Temperature Range0°C to 85°C Endurance Rating (Lifetime Writes) 365 TBW Mean Time Between Failures (MTBF) 1.6 Million Hrs Uncorrectable Bit Error Rate (UBER) < 1 sector per 10^15 bits read https://www.intel.com/content/www/us/en/products/memory-storage/optane-memory/optane-memory-m10-series/optane-memory-m10-16gb-m-2-80mm.html
