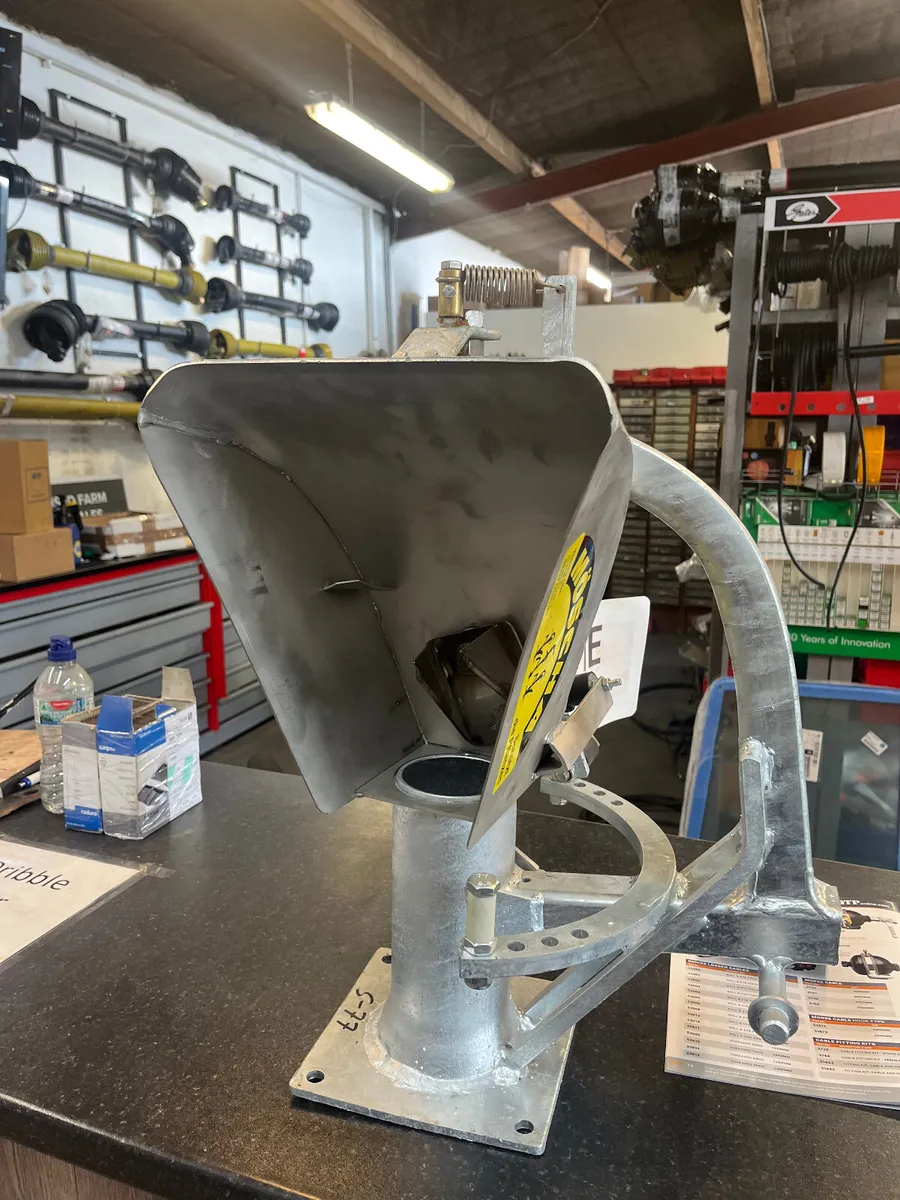

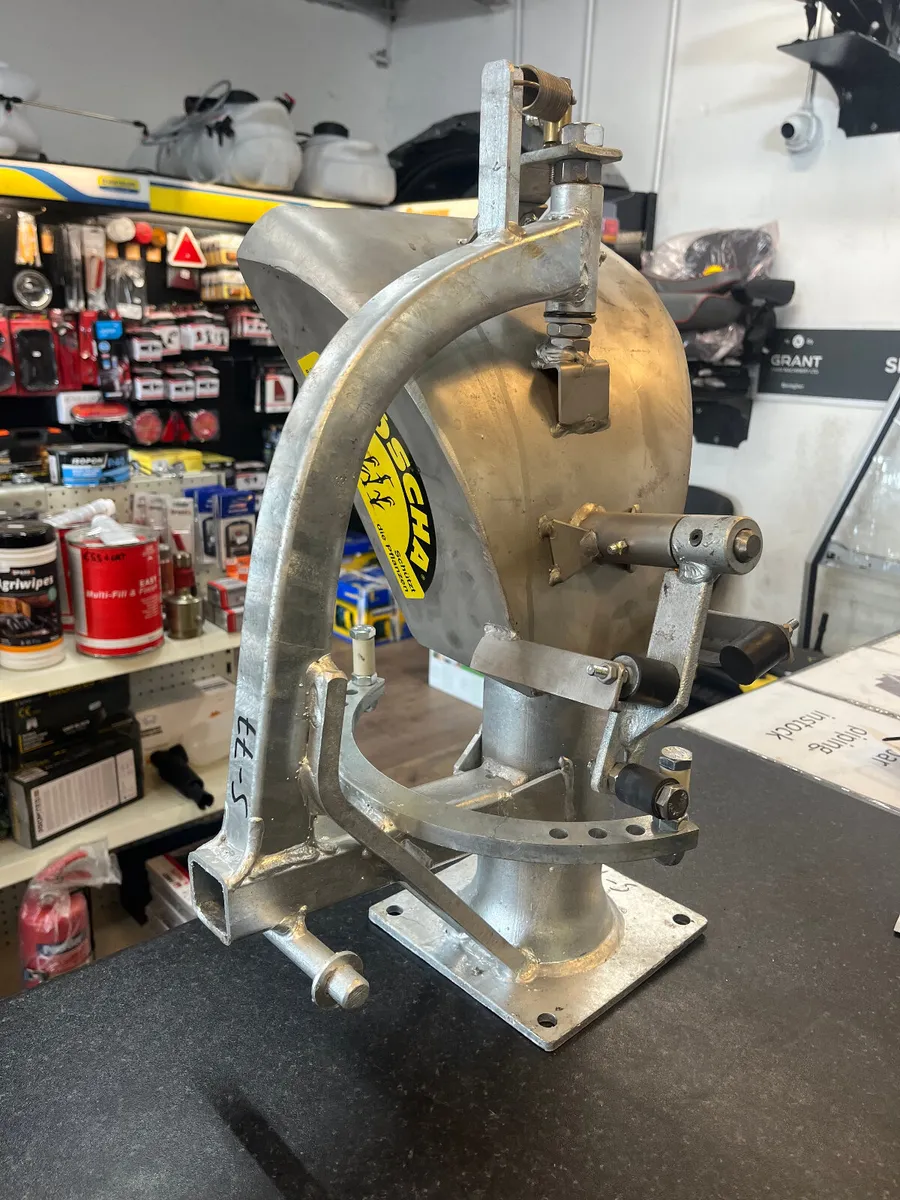

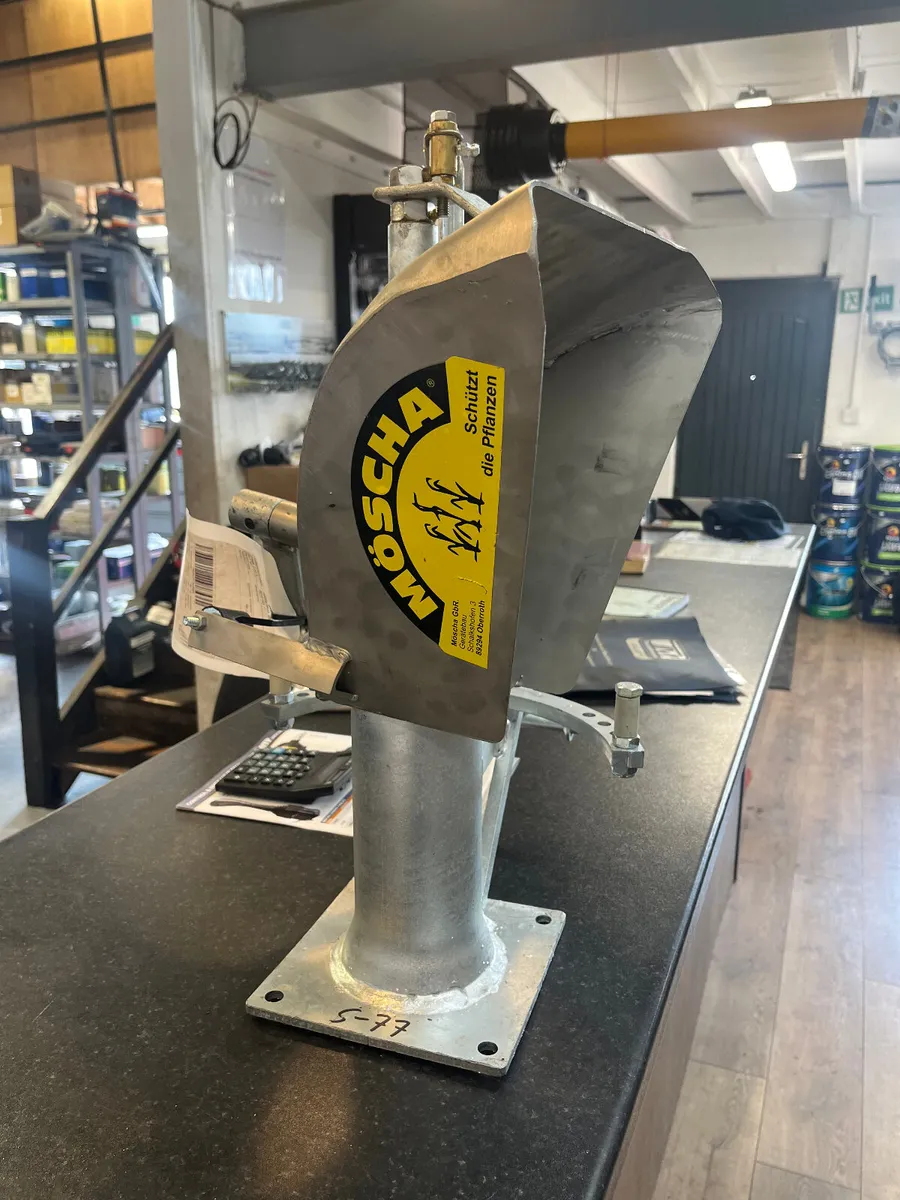

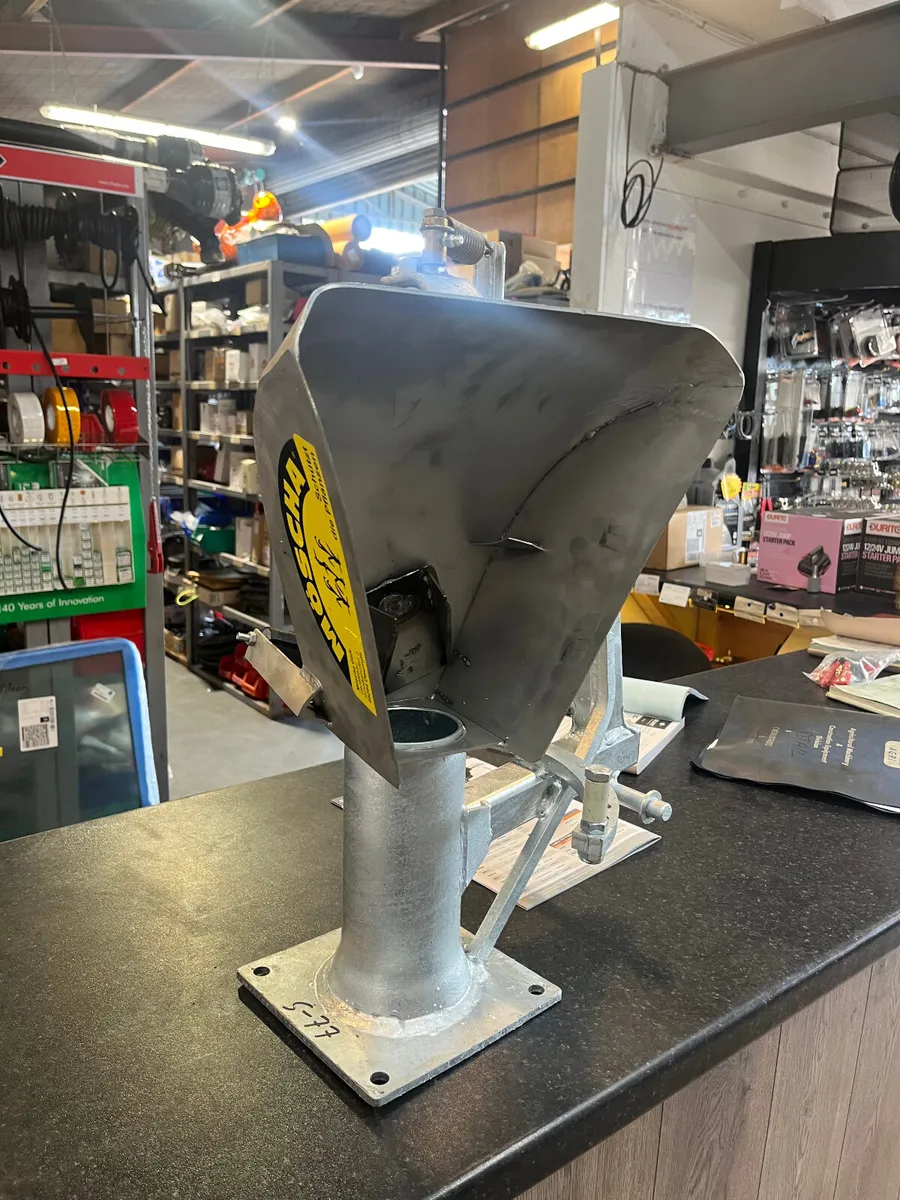

Möscha S-77 Swivel Distributor

The Möscha S-77 Type N Swivel Distributor is a stainless-steel slurry spreading kit designed for a precise working width of up to 15 metres at 1.0 bar of pressure. It features a large 77 mm nozzle outlet designed to handle high-flow volumes while generating large, coarse droplets that minimize nitrogen loss and air emissions Technical Specifications Model Size: S-77 (77 mm nozzle outlet diameter). Working Width: Up to 15 metres. Material: High-grade stainless steel swivel head. Operating Pressure: Optimal distribution achieved at 1.0 bar. Flow Rate Capacity: Handles approximately 2,400 litres per minute. Key Benefits Low Emissions: The coarse-droplet application drastically reduces ammonia and nitrogen losses compared to traditional splash plates. Sward Protection: It distributes slurry evenly over the full 15-metre width, eliminating the direct grass-scorching or "lining" effects often seen with poorly configured dribble bars. Easy Retrofitting: The kit can be easily clamped onto the rear outlet of almost any standard slurry tanker brand. Reduced Wear: Built with fewer moving parts than complex boom systems, ensuring minimal mechanical wear and low maintenance costs. Call 0871698467 or 0872505038 for more details
