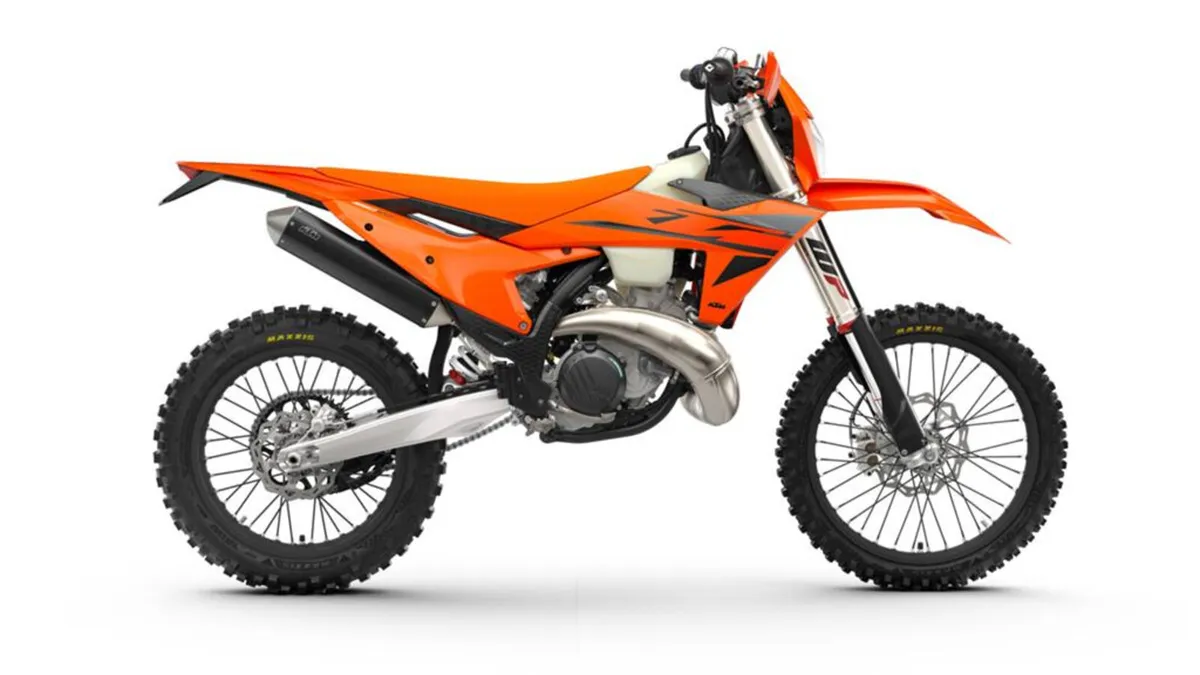

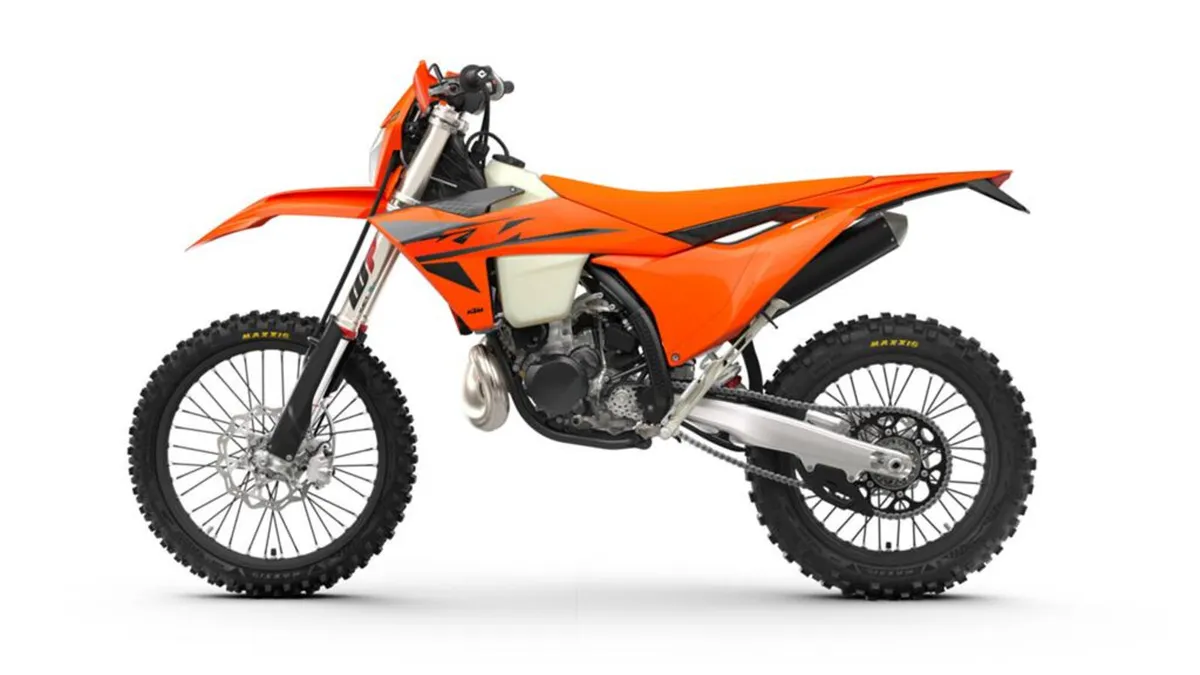

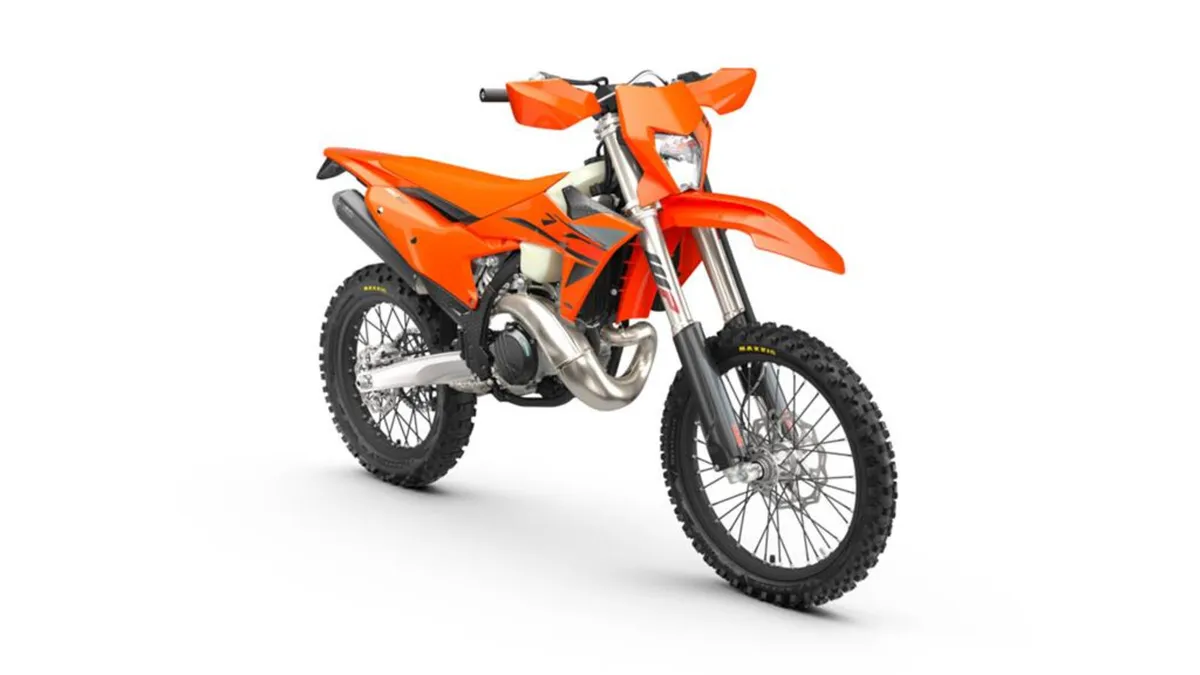

KTM 250 EXC - 2025

The 2025 KTM 250 EXC presents enduro riders with the ultimate combination of power and rideability, setting the benchmark in the highly contested E1 class. Thanks to its groundbreaking frame, closed-cartridge suspension, and epic TBI technology, it remains an extreme machine that continues to reach new heights. How far you push, though, is up to you. ENGINE PRIMARY DRIVE26:72 TRANSMISSION6-speed SECONDARY GEAR RATIO14:45 STARTERElectric starter STROKE72 mm BORE66.4 mm CLUTCHWet, DDS multi-disc clutch, Brembo hydraulics DISPLACEMENT249 cm³ EMSVitesco Technologies EMS DESIGN1-cylinder, 2-stroke engine FUEL-MIXTURE GENERATIONKeihin EFI, throttle body 39 mm CHASSIS WEIGHT (WITHOUT FUEL)104.6 kg TANK CAPACITY (APPROX.)9 l WHEELBASE1.489 mm FRONT BRAKE DISC DIAMETER260 mm REAR BRAKE DISC DIAMETER220 mm FRONT BRAKEDisc brake REAR BRAKEDisc brake CHAIN520 X-Ring FRAME DESIGNCentral double-cradle-type 25CrMo4 steel FRONT SUSPENSIONWP XACT-USD, Ø 48 mm GROUND CLEARANCE347 mm HANDLEBARNeken, aluminium Ø 28/22 mm REAR SUSPENSIONWP XPLOR shock absorber with PDS SEAT HEIGHT963 mm SILENCERAluminium STEERING HEAD ANGLE63.9 ° REAR SUBFRAME DESIGNAluminum-reinforced polyamide SUSPENSION TRAVEL (FRONT)300 mm SUSPENSION TRAVEL (REAR)310 mm TYRE DIMENSIONS (FRONT/REAR)90/90; 140/80 WHEELS1.60 x 21"; 2.15 x 18"
