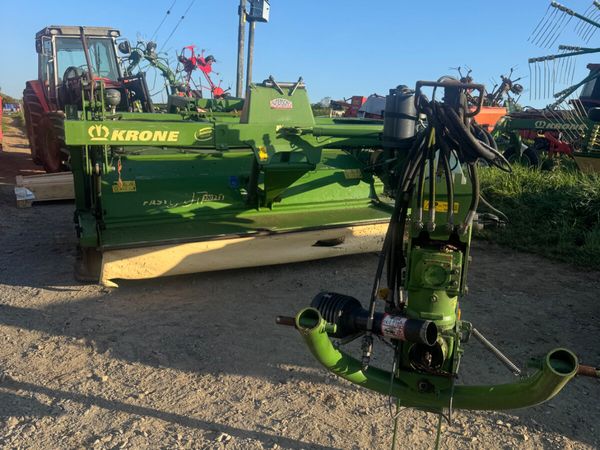

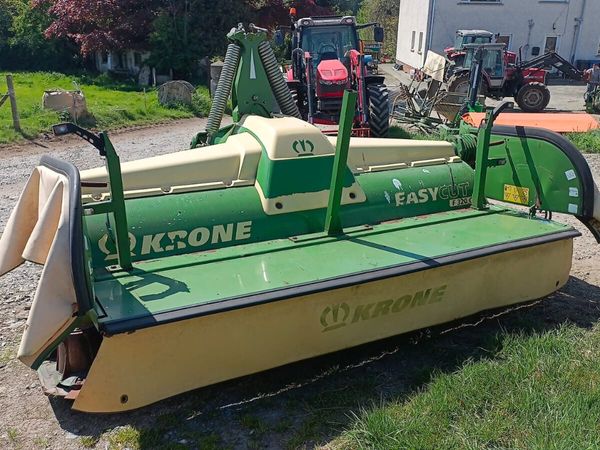

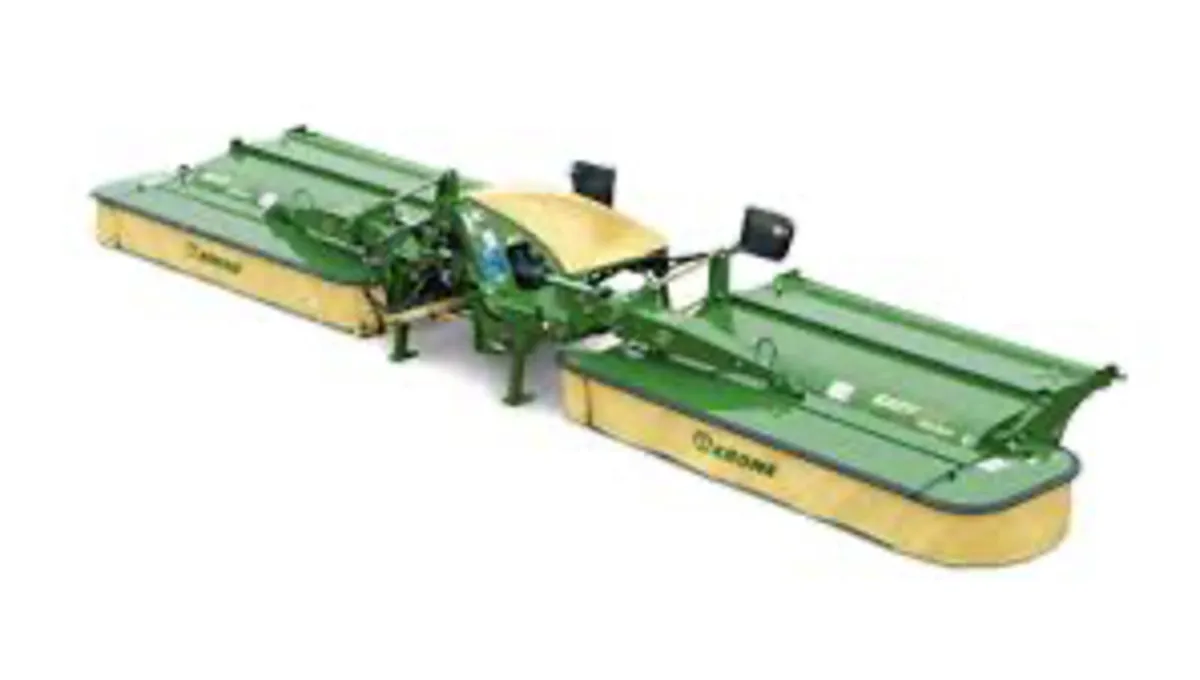

2019 Krone ECB1000CV Butterfly mowers

The Krone EasyCut B 1000 CV is a professional combination disc mower with a 10.1 m maximum working width and a V-tine steel conditioner. Specifications Working width: The working width is variable from 9.30 m to 10.10 m (approx. 30'6" to 33'2"). Transport width: The total transport width is approximately 2.95 m. Parking height: The parking height is approximately 4.2 m. Weight: The approximate dead weight is 3,400 kg (without a front mower). Required power: The recommended tractor power is 130 kW / 180 hp. PTO speed: The required PTO speed is 1,000 rpm. Mower discs: It features 12 mowing discs and 4 top hats. Conditioner: It uses a high-performance CV V-shaped steel tine conditioner with a 640 mm diameter rotor and adjustable speed (600/900 rpm). Cutterbar: It has a fully welded and permanently lubricated cutterbar with the SafeCut system (individual disc protection) and standard quick-change blades. Suspension: The machine uses the patented DuoGrip centre-of-gravity suspension and the automatic hydro-pneumatic Combi Float suspension control system to maintain uniform ground pressure. Control: Operation options include a simple electric preselect box or an ISOBUS-compatible device, allowing hydraulic overlap adjustment from the cab. Impact protection: A standard non-stop break-back system allows the mower unit to swing back and up when hitting an obstacle, returning automatically to its working position.
