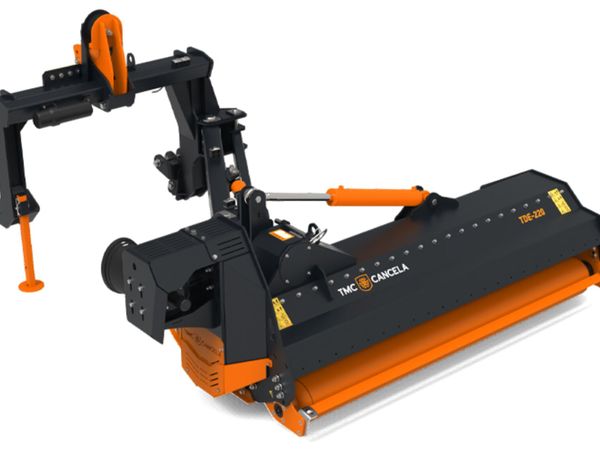

Front & Rear Mulcher TMC TH

The shredders of the TH and TS range are equipped with large diameter, wall-mounted rotors equipped with hammers or knives. These crushers rotate at high speeds. cutting the grass, which at the same time is crushed in the cavity of the machine, leaving the remains to the outside at the rear and deposited on the ground. homogeneously, without leaving cords on the floor. The degree of chopping is so high that the size of the remains is almost negligible. Never create jams in the roller This increases the quality of the finish considerably. 1 Body built in high strength steel with sliding three point linkage. 2 Protection at front with metallic plates. 3 Internal rear roller with adjustment on height for ground adjustment. 4 Sidestep system on frame sides. 5 Rotor with floating hammers assembled to the rotor with bolts of 20 mm diameter. 6 Transmission with 5 belts. 7 Gearbox with built-in free wheel and double 1 3/4” Z6 input drive shaft. 8 Input to 540 rpm. In option 1.000 rpm by inversion of pulleys (DS system). 9 Replaceable counterblades TMC Cancela model C01. 10 PTO shaft included with 1 3/8” Z6 tractor side. 80-200HP Models Available will cut 60-80mm material Please Contact EMS for further Info & Pricing 0872913843 / 014511282
