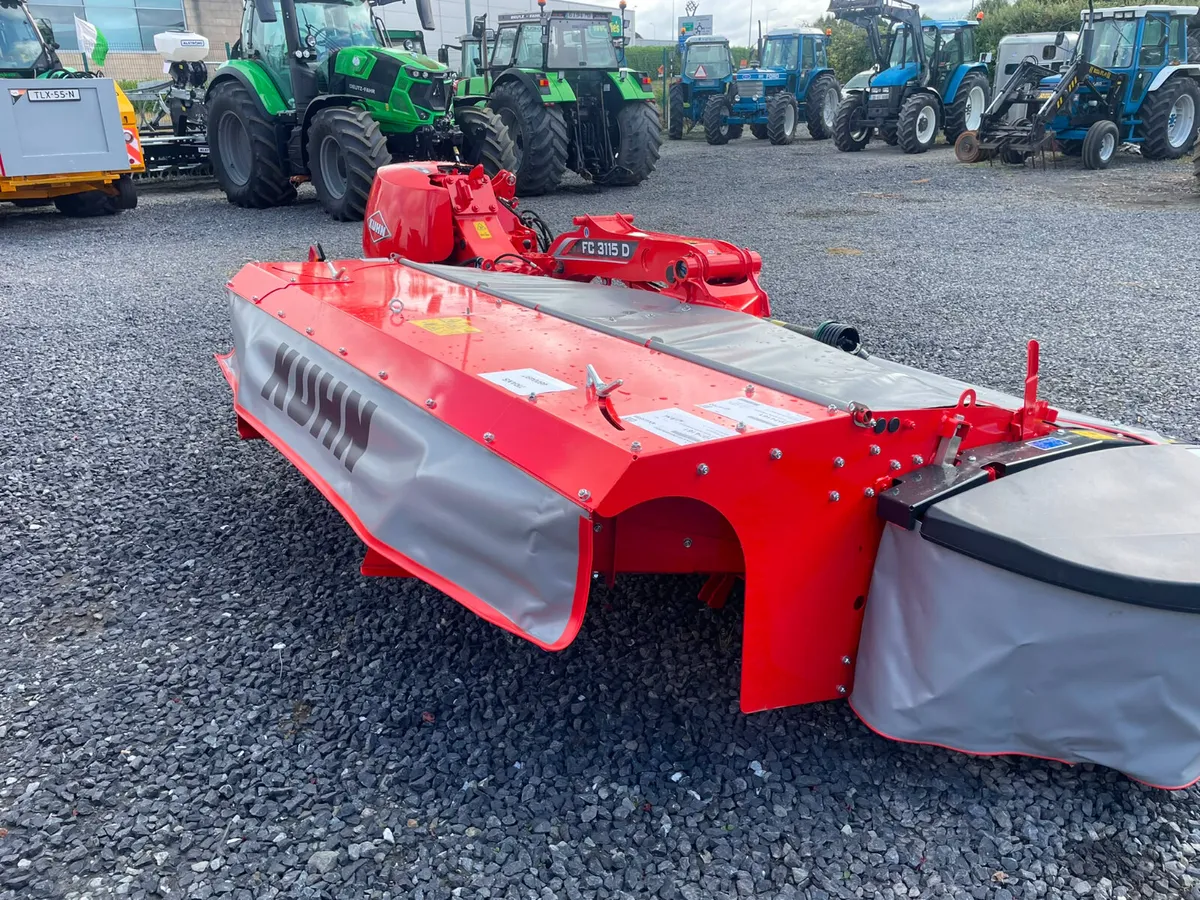

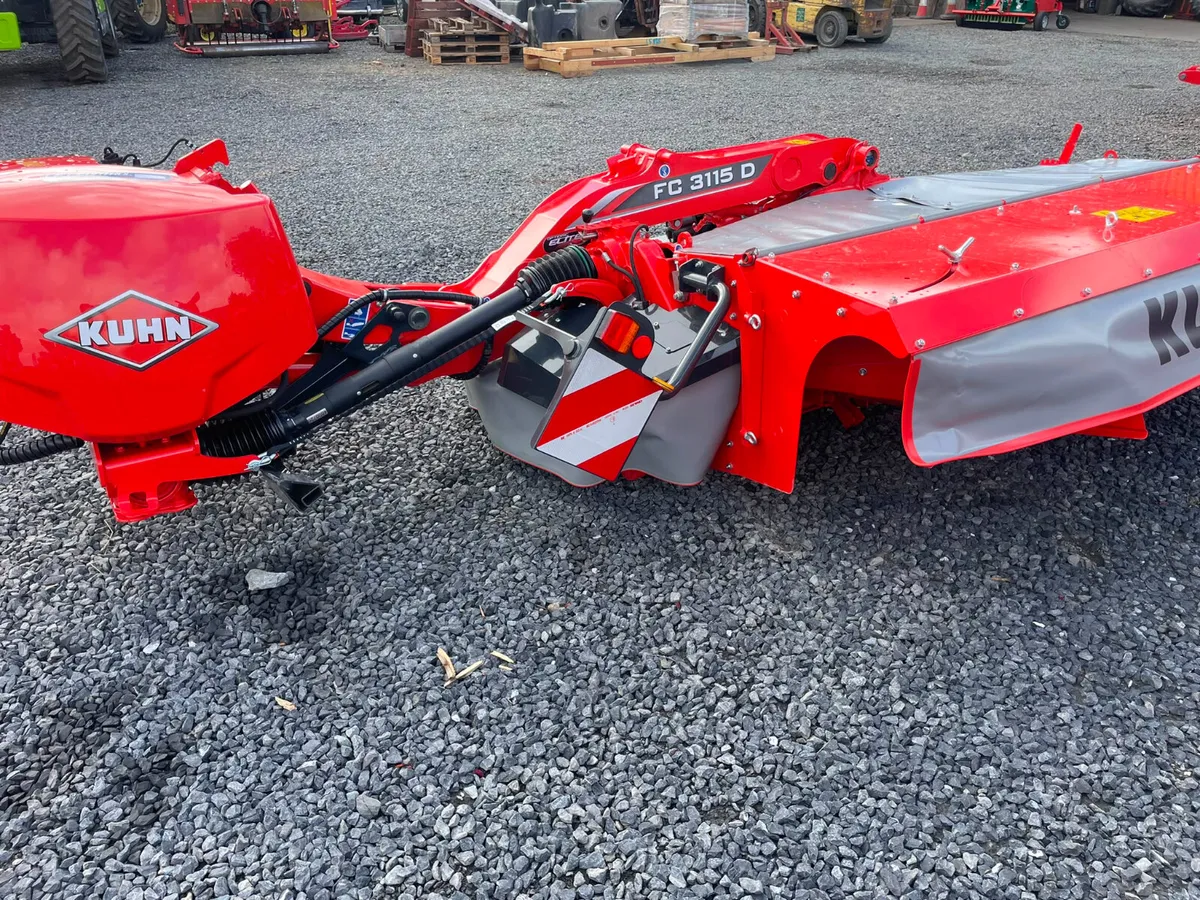

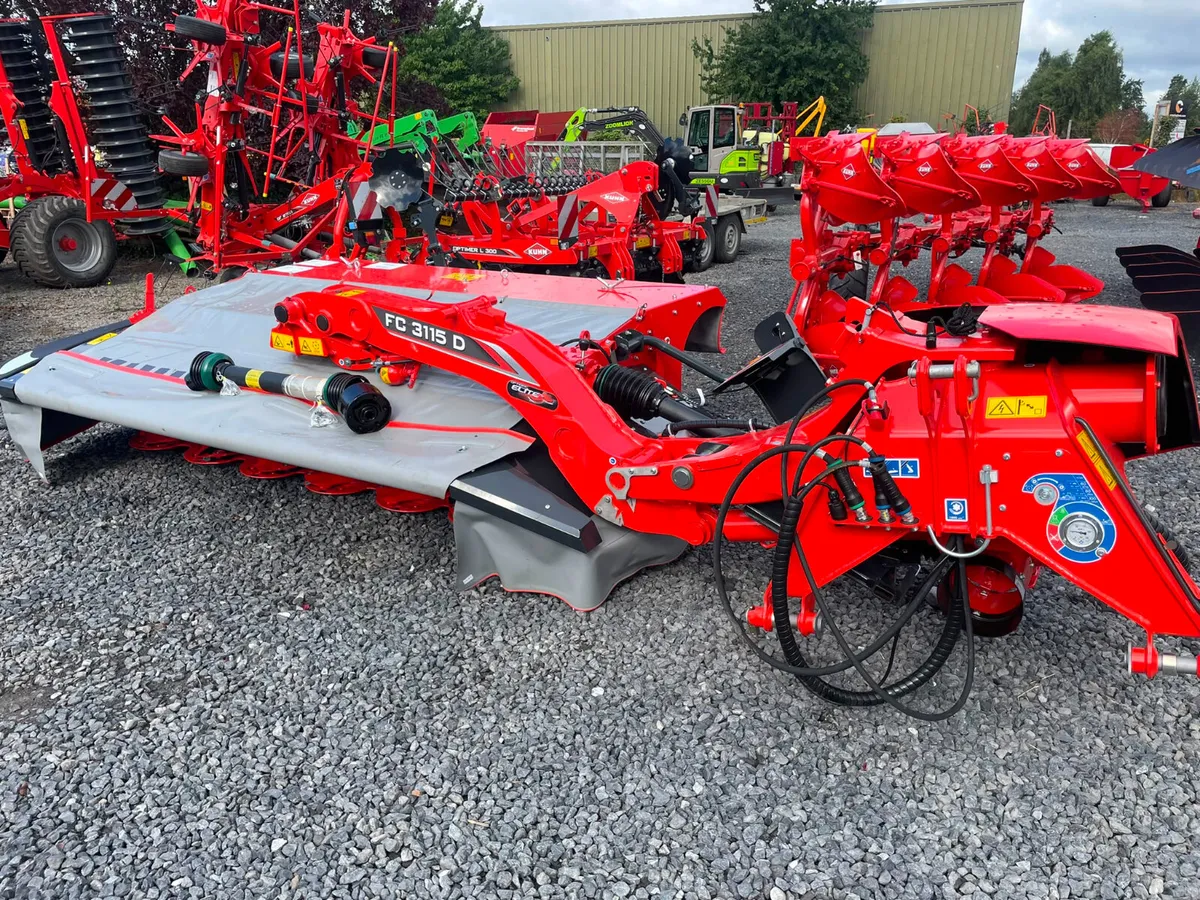

Kuhn FC3115 D

Kuhn FC 3115 D Side mounted conditioner mower 3.1 meter 7 disc Fast fit blades 126 degree vertical OPTIDISC ELITE Cutter Bar - Patented asymmetric disc design with variable spacing between converging and diverging discs. More overlap where discs diverge means a clean cut even in short or light grass; more space where they converge means crop flows freely to the rear without clogging. Lubricated for life - zero maintenance required. FAST-FIT Knife System - Standard fitment. Change blades in seconds with a simple lever - no spanners, no nuts, no bolts. A powerful leaf spring keeps constant pressure on the retaining screw for safety. Saves hours over a season. LIFT-CONTROL Hydro-Pneumatic Suspension - Exclusive to Kuhn. Uses an accumulator instead of a conventional spring for constant, even ground pressure. Follows ground contours precisely for a clean cut with minimal soil contamination. Adjustable from the tractor cab. NON-STOP Safety Breakaway - If the mower hits an obstacle, the unit swings backwards and lifts simultaneously. Reset by simply reversing. Minimises downtime and damage. PROTECTADRIVE - If a disc hits an obstacle violently, the shaft shears at a calculated groove above the bearing, protecting the gearwheels. Back up and running in under 15 minutes at low repair cost. DIGIDRY Steel Finger Conditioner - Heavy-duty pivoting steel finger rotor, 540mm diameter. Two-speed gearbox (755 or 1000 rpm) adjustable via selector lever. Five-position conditioning hood. Handles heavy crops and difficult conditions with ease. Uniform drying across the full width. 126 Degree Vertical Fold - Folds vertically behind the tractor for maximum compactness on the road. Optimum weight balance on the rear wheels. Great for tight gateways and narrow lanes. W91AX6N 045-876710 WWW.NAASFARMMACHINERY.COM
