Mulcher rear mount offset

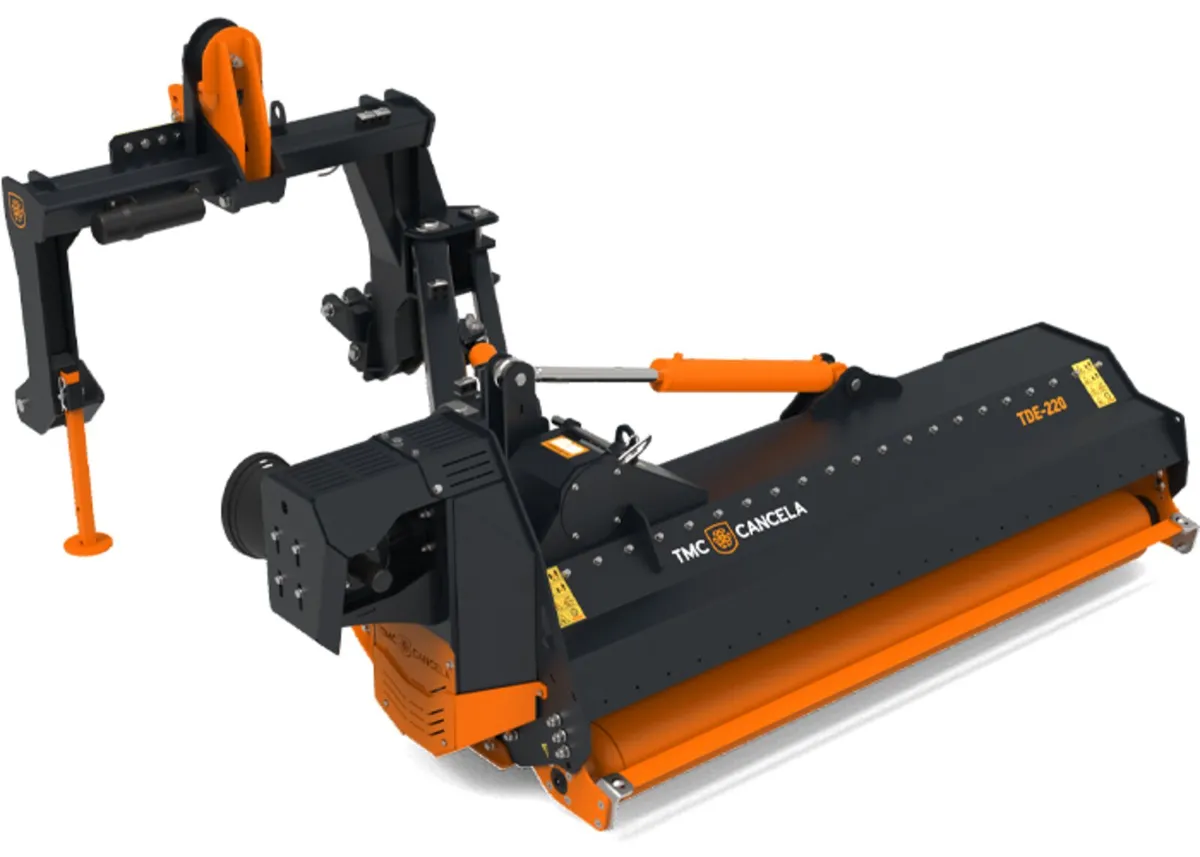

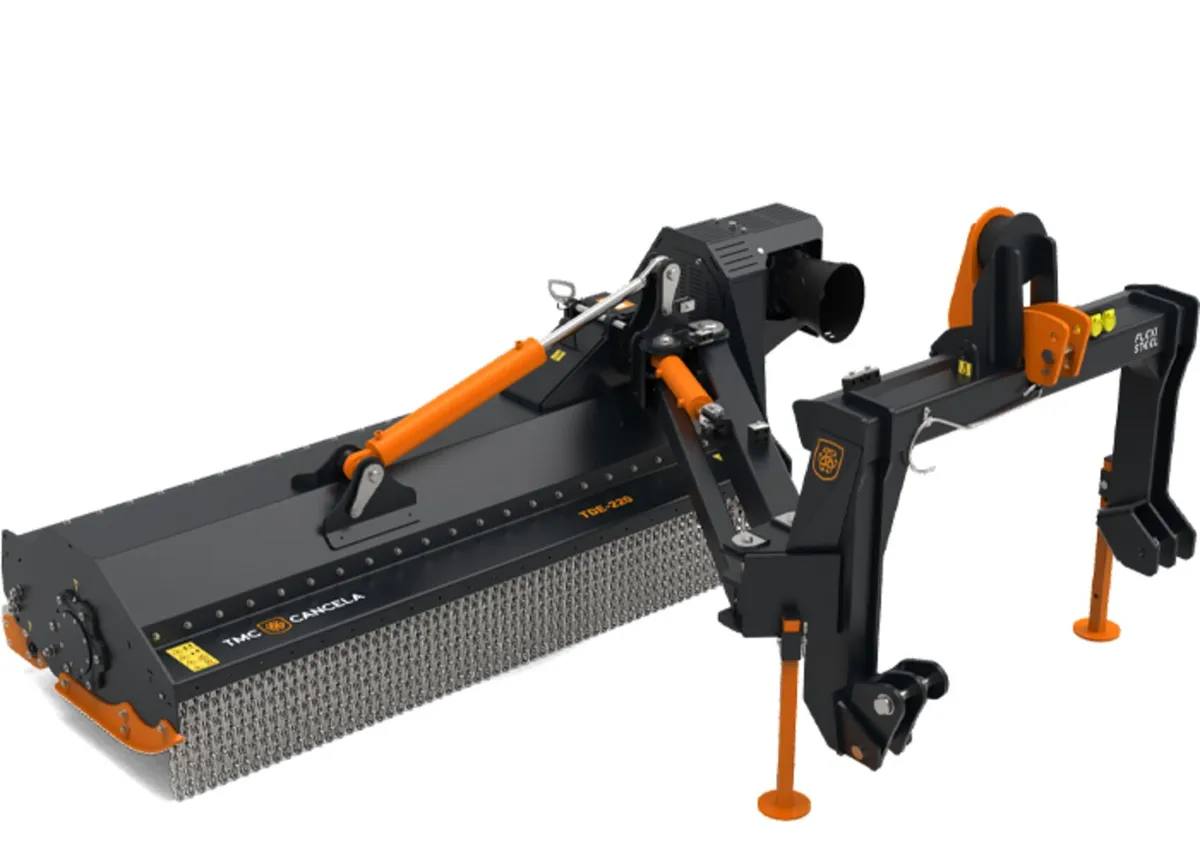

After many years of experience in the agricultural and farming mulchers sector, TMC Cancela proposed the TD as the best versatile and displaced mulcher in the market. It incorporates an special alloy frame and technical solutions, worldwide patented such as the damping device in the third point. 1 Body built in high strength steel. 2 Parallelogram offset with mechanical anticollision device. 3 Protection at front with chains. 4 Float device on three point linkage to control ground adaptation as well as impacts during transport. 5 Internal rear roller with height adjustment for ground adaptation and protection skids. 6 Rotor with floating hammers assembled to the rotor with bolts of 27 mm diameter (Boltop system). 7 External gearbox with built-in free wheel and 1 3/4” Z6 input shaft. 8 Transmission with 6 belts. 9 Input to 540 rpm. 10 Replaceable counterblades TMC Cancela model C01. 11 PTO shaft included with 1 3/8” Z6 tractor side. 110hp -200hp units with 2m - 2.5m width options available Please contact EMS machinery for further info & prices 0872913843 / 014511282 Josh
