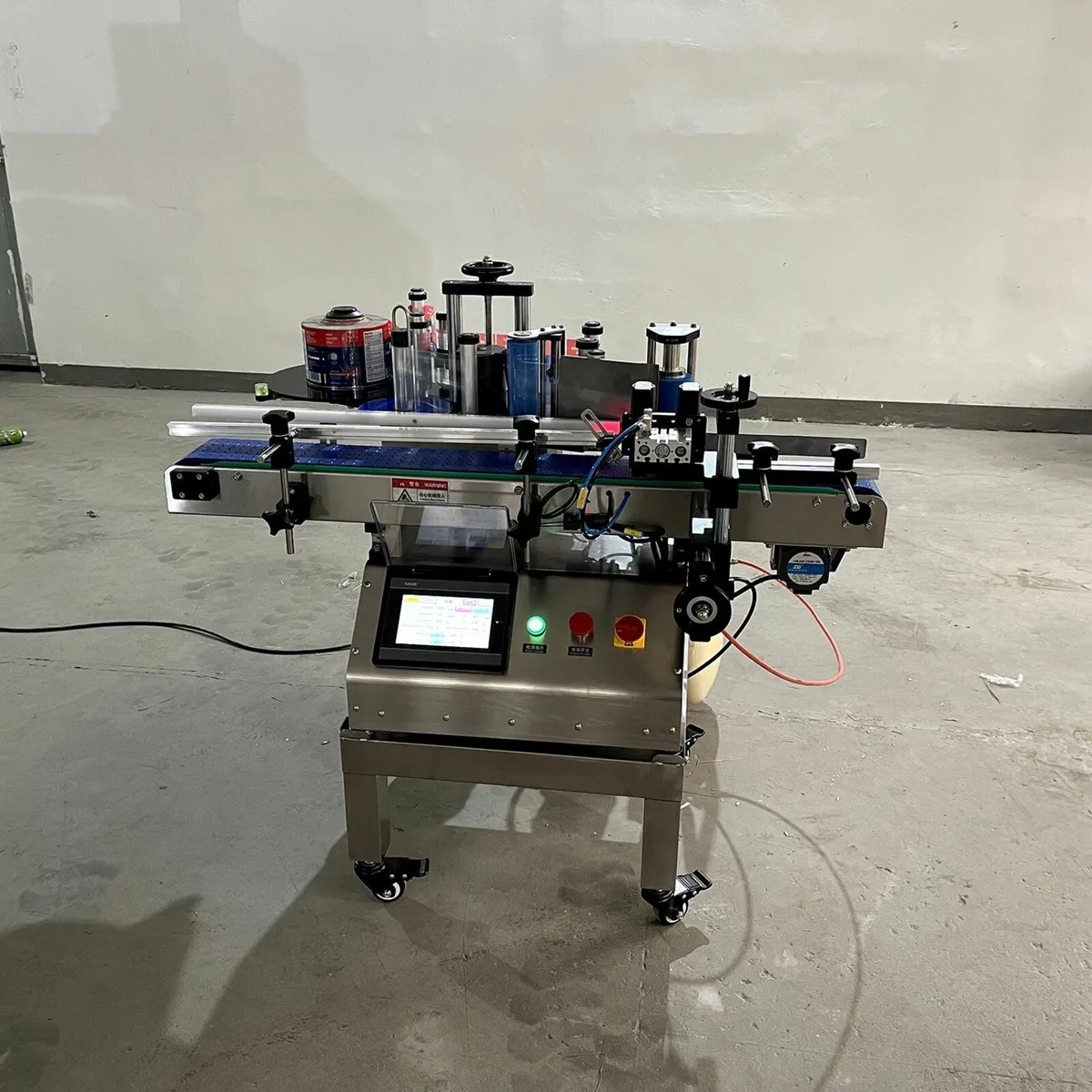

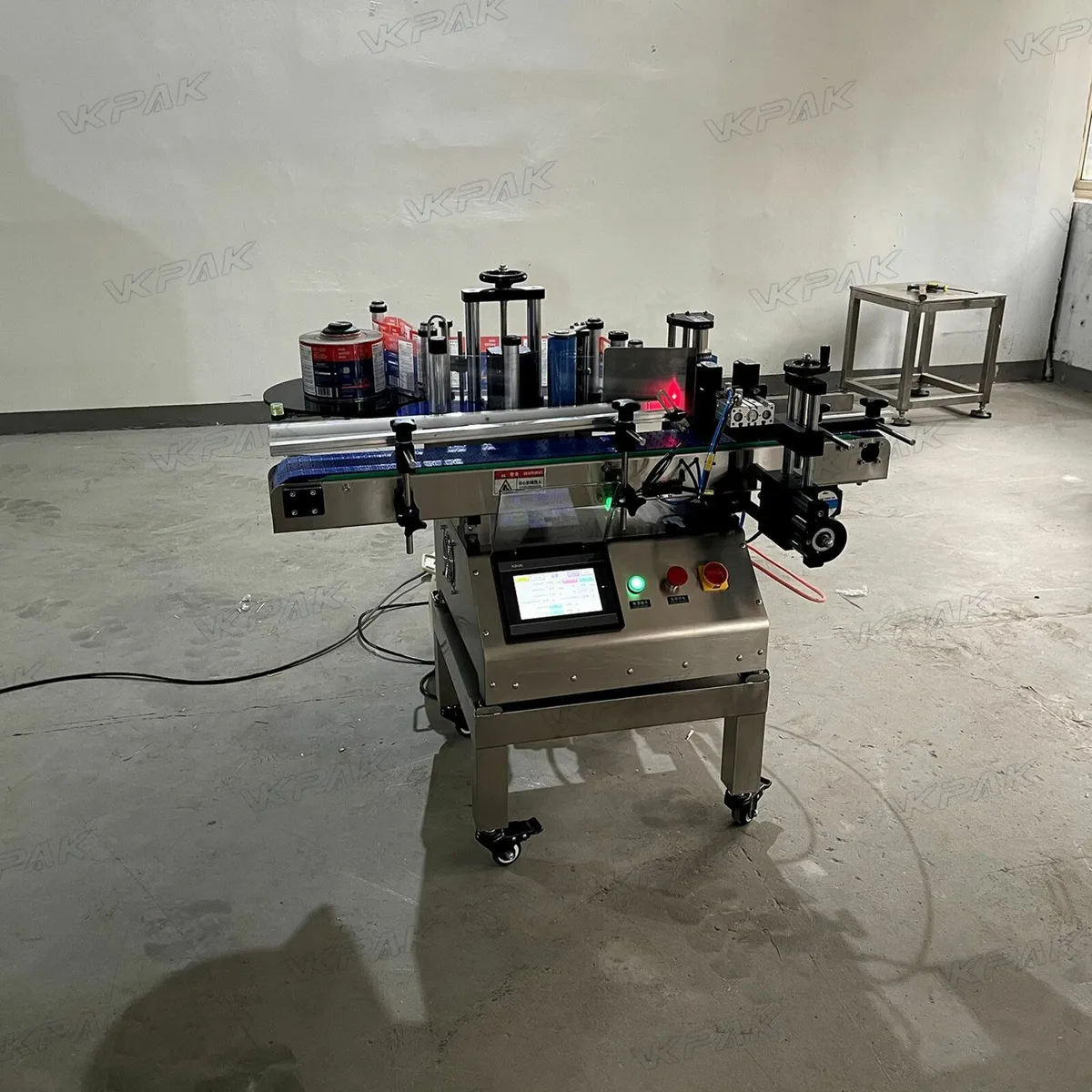

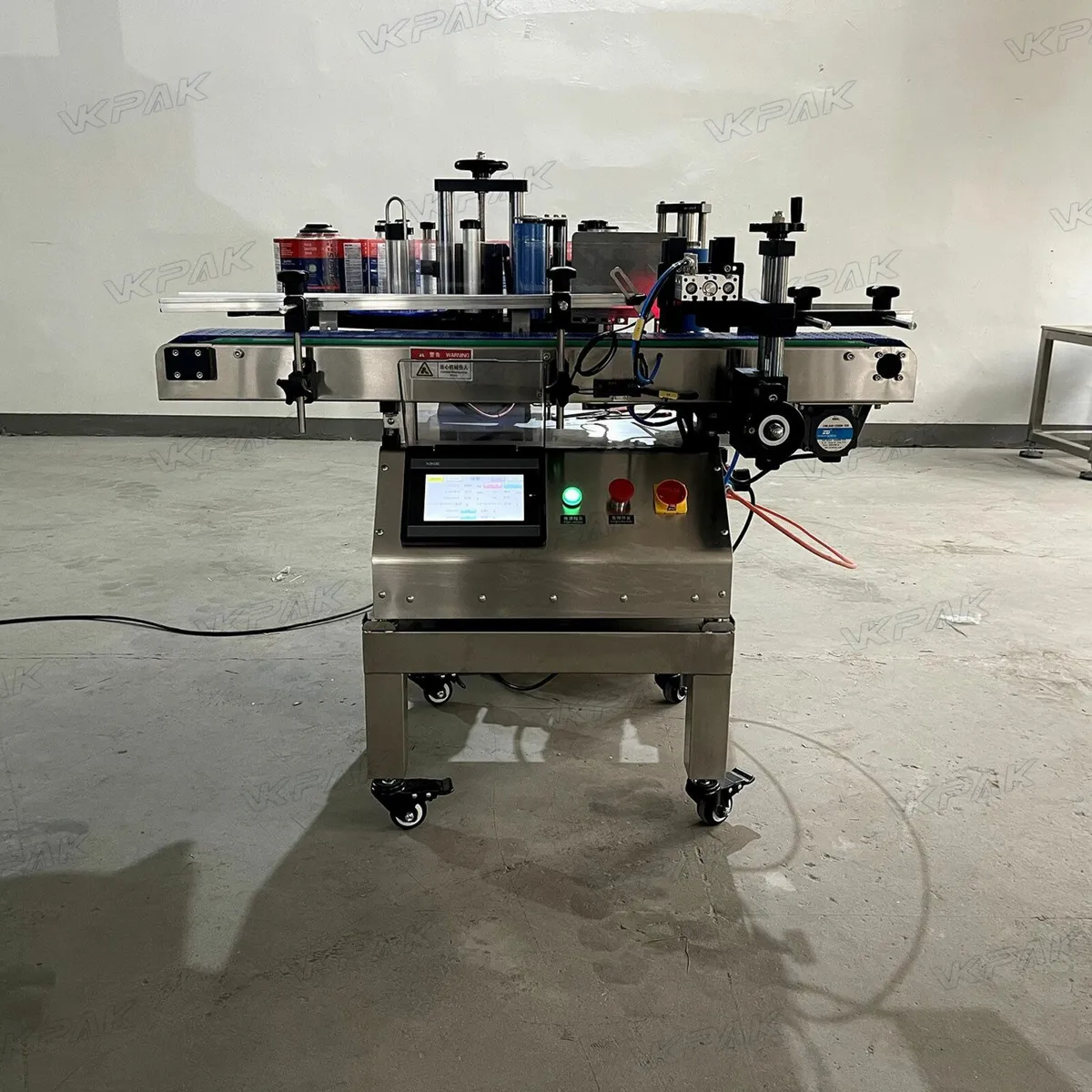

Automatic Tabletop Round Bottle Labeling Machine

This round bottle labeling machine is designed into small benchtop type. The reasonable design saves working space. It can be used for single side, double side and wrap around labeling. This is widely used in food, beverage, cosmetics and daily chemical industries. Main Feature Suitable for single side and double side labeling on round bottles. Desktop type saves working space. Labeling speed: 20~60 pcs/ min (depends on containers and labels size) Bottle size: Diameter: .63" (16mm) - 3.54" (90mm) Height: 1.18" (30mm) - 6.29" (160 mm) Label size: Width:.39" (10mm) ~ 3.93" (100mm) Length: .78" (20mm) ~ 11.81" (300mm) Label reel: Inner diameter: 2.95" (75mm) Outer Diameter: 11.81" (300mm) Accuracy: ± 1mm Voltage: 220V 50HZ Machine size: 47.25"L x 32.65"W x 20.86"H Intelligent operation panel can help you control the machine easily. It can be set into English version, the working data like counting functions, delay time can be controlled by this panel. Beside two black rotary knobs can be used to control working speed The feeding inlet can be adjusted according to bottle diameter. This machine is suitable for φ≤100mm bottles. The working speed of the conveyor can be adjusted as operators’ need. This help to improve working efficiency. The bottle will be detected by this sensor once they pass by the sensor. Reduce labeling error and ensure the labeling working efficiency. With label sensor and adjusting components, these ensure the sensitivity and accuracy, prevent from missing or wasting label stickers, improve labeling quality These three labeling wheels make bottles rotating and then finish labeling, ensure that there is no bubbles under labels. Ensure the labeling effect. This is suitable for double side labeling. The upgrade variable-speed motor makes the machine work stably and improve labeling speed, ensures the labeling accuracy at the same time.
