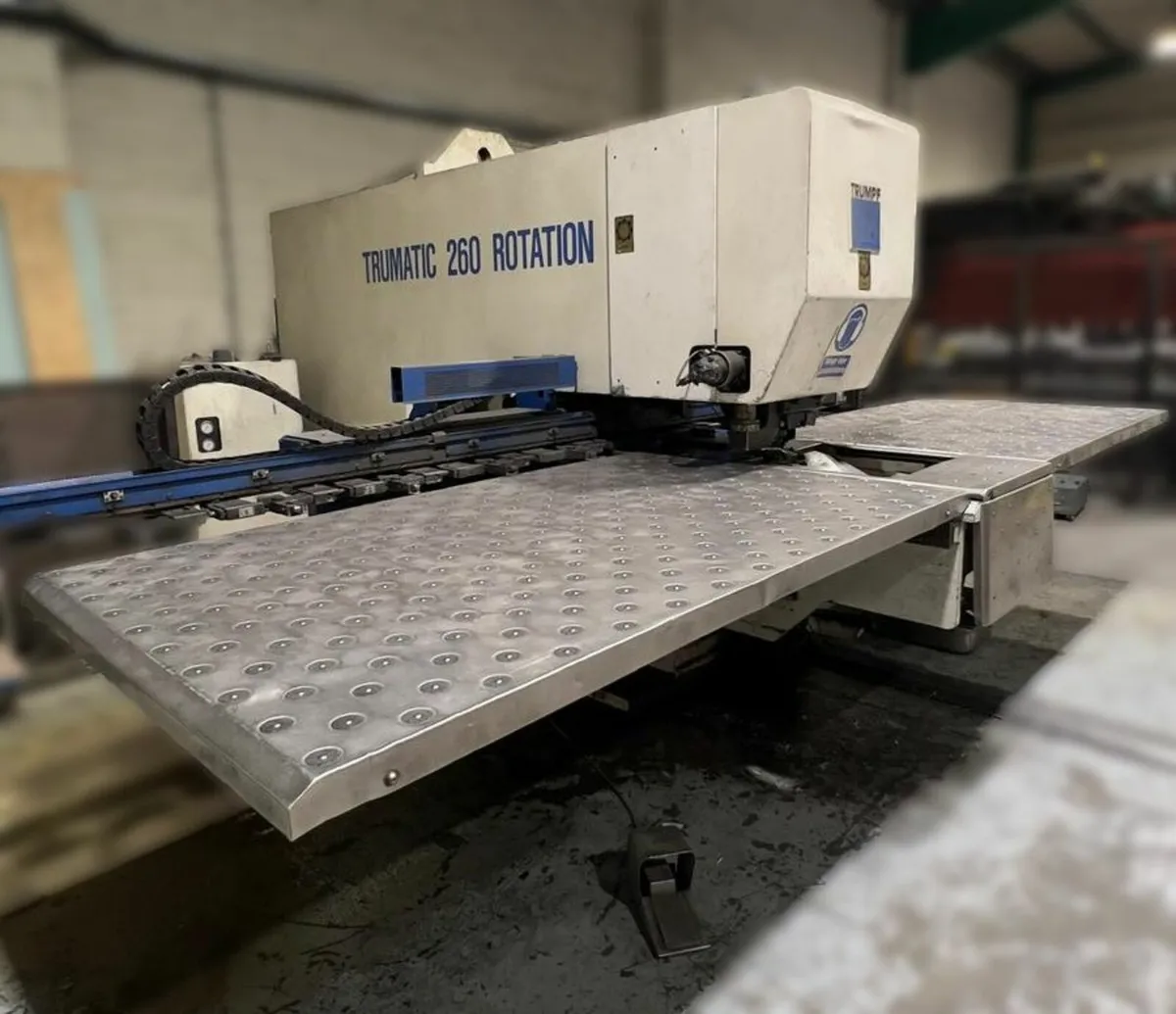

TRUMPF Trumatic 260 Rotation & Quicksharp

TRUMPF Trumatic 260 Rotation & Quicksharp ** ALL TOOLING INCLUDED** • Punching Force: 250 kN (approx. 25-30 tons) • Footprint: L x W x H 5000 x 5000 x 2600 mm • Working Range (X x Y): 2500x1300 mm (plus optional repositioning) • Max Sheet Thickness: 6.4 mm • Max Workpiece Weight: 150-200 kg • Tooling: 10 stations (with 360-degree rotation of all tools) • Max Tool Diameter: 76.2 mm • Max Rotation Speed (C-axis): 360°/sec • Traverse Speeds (X/Y): Up to 90 m/min (X), 60 m/min (Y) • Control: Bosch CC 300 (typical) • Machine Weight: Approx. 16,000-16,800kg • Compressed air requirement: 6 bar • Motor Power Hydraulics: 7,5 Kw • Mains Connection: 380 volts, 50 Hz, 35 kVA
