60W Mixer Amplifier 100V Bluetooth

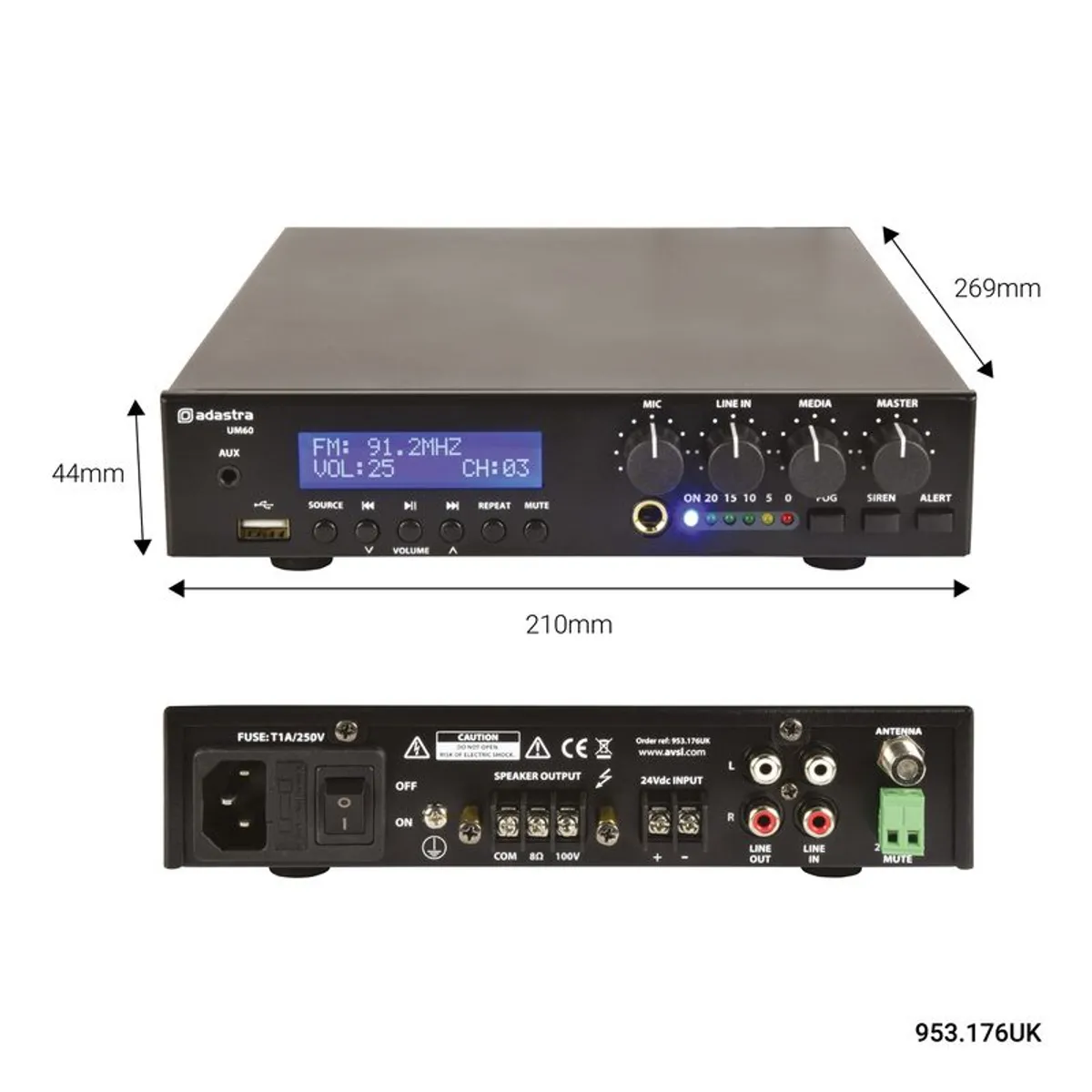

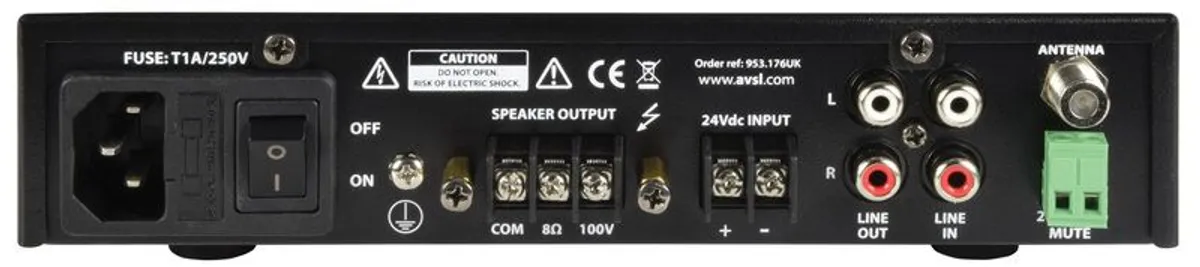

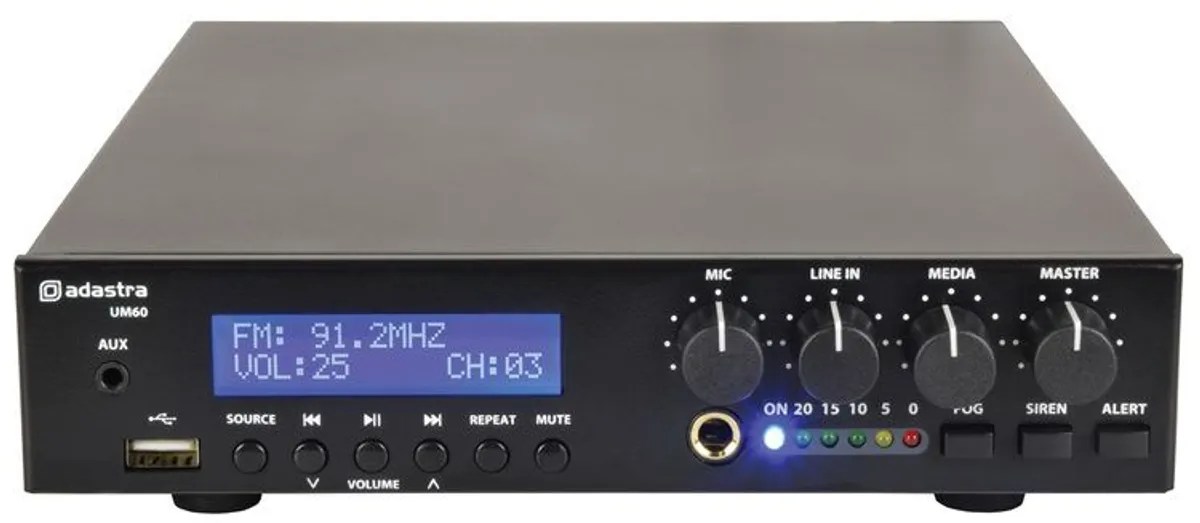

UM Series Ultra Compact Mixer-Amplifiers 100V 60W 953.176UK UM60 100V mixer-amplifiers with USB audio player, FM tuner and BT wireless receiver in an ultra compact housing. Microphone input, line input and USB/FM/BT sections are governed by front panel volume… more Ultra compact form factor Efficient class D amplifier design Internal USB/FM/BT audio player UM Series Ultra Compact Mixer-Amplifiers 100V 100V mixer-amplifiers with USB audio player, FM tuner and BT wireless receiver in an ultra compact housing. Microphone input, line input and USB/FM/BT sections are governed by front panel volume controls and a master volume. Mono output to either 100V line or 8 Ohms speaker load is connected via screw terminals on the rear panel. Supplied with hardware for mounting 2 units side by side in a 1U 19" rack space. Designed as a versatile solution for small to medium PA installations. Ultra compact form factor Efficient class D amplifier design Internal USB/FM/BT audio player 100V line or 8 Ohms operation Bluetooth with programmable ID Weight 2.47kg Dimensions 269 x 210 x 44mm Alarm output Fog, siren & alert generator Output power : rms 60W Power supply 170-264Vac, 50Hz (IEC) or 24Vdc Amplifier : construction Class D + transformer output Audio source Internal USB/FM/BT player Bluetooth version 5.0 Inputs 1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm) Line output 2 x RCA (mono) Speaker outputs Screw terminals - 100V / 8 Ohms / Com DC power 24Vdc screw terminals Mute 24V relay contacts THD <0.4% @ 1kHz Input impedance 1k Ohms (mic/line) Input sensitivity -10dB (line), -45dB (mic) SNR 80dB (line), 75dB (mic) Frequency response 100Hz - 18kHz
