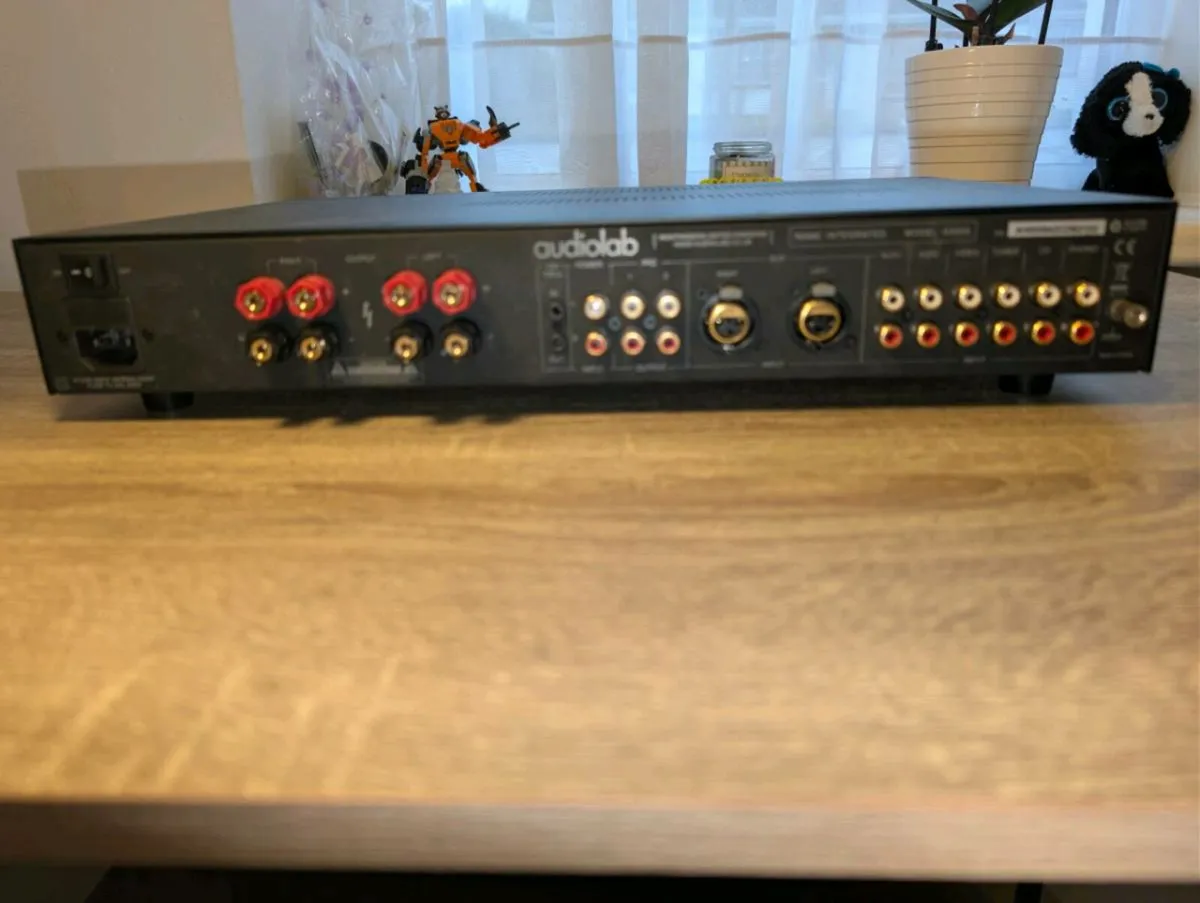

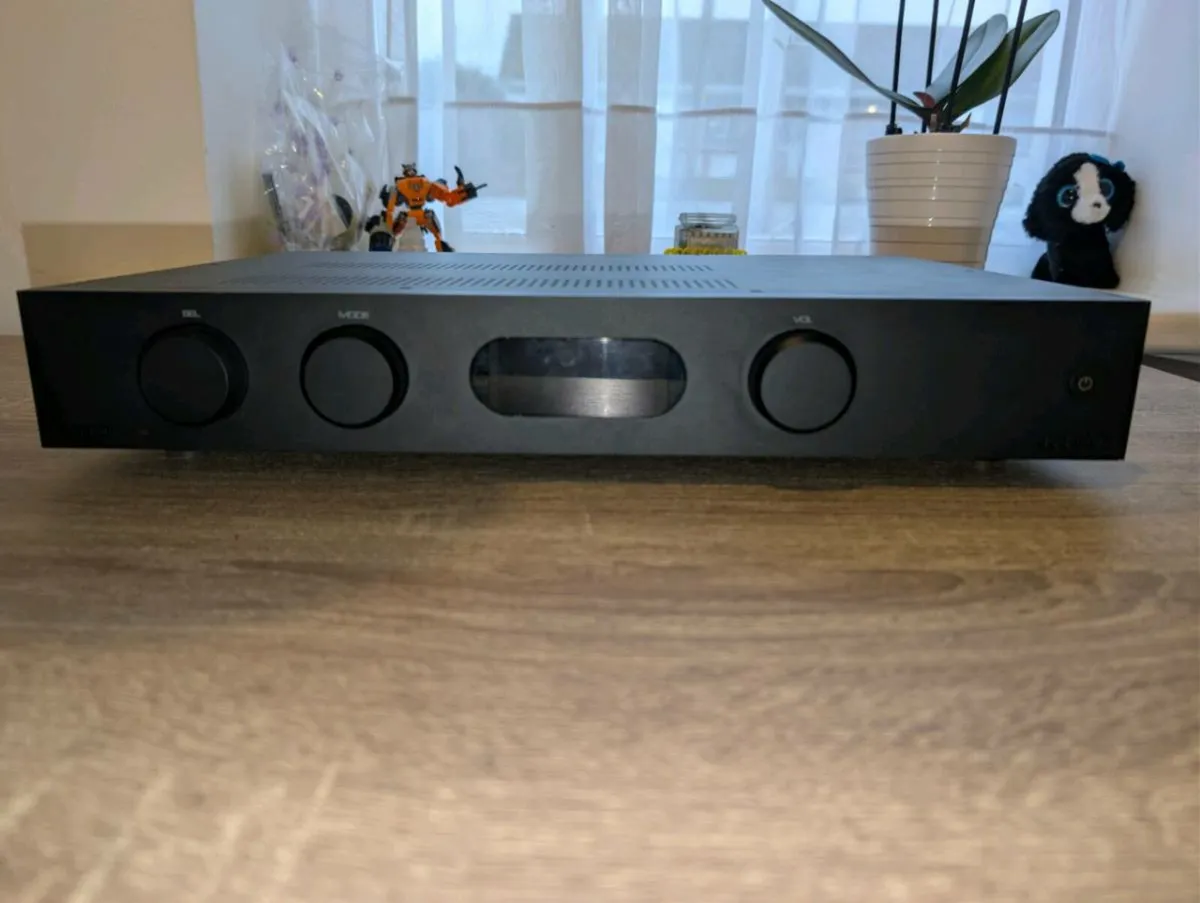

Audiolab 8300A

General descriptionIntegrated AmplifierDesign philosophy and core technologyDual Mono Power Amp DesignDisplayOLED 128x64 pixels 2.7"ControlsLogarithmic Ladder Volume DesignFinishFine Textured Aluminium (Black / Silver)Standby FeaturesYes12V TriggerYesPhonoYes (MM/MC)Balanced XLR InputYesPre-amplifier Section InputsCD, Video, Tuner, Aux 1, Aux 2, XLR (Balanced) & PhonoOutputs2 x RCAInput sensitivity (Phono RIAA)50K // 100pFInput impedance (line inputs)50K // 100pFInput impedance (phono inputs)47K // 100pF (MM), 100R // 1.5nF (MC)Output voltage2.3V max. (< 0.02% THD)Output impedance120ΩFrequency response (Line)+/- 0.1dB (10Hz - 20kHz) +/- 3.0dB (1Hz - 100kHz)Frequency response (Phono RIAA)+/- 1.0dB (20Hz - 20kHz)Channel Imbalance< 0.2dB (10Hz - 20kHz)Total harmonic distortion (THD) Line<0.001%Total harmonic distortion (THD) Phono<0.002%Signal-to-noise ratio (Line)> 107dB >109dB(A-weighted)Signal-to-noise ratio Phono (MM)> 73dB > 78dB(A-weighted)Signal-to-noise ratio Phono (MC)> 68dB > 73dB(A-weighted)Crosstalk< 80dB (L-> R & R->L @10kHz)Power amplifier Section Gain29dB (20Hz-20kHz)Input Sensitivity840mV (Power Out = 70W into 8Ω)Input impedance15K // 100pFRated max power output THD < 1%2 x 75W RMS (8Ω) , 2 x 115W (4Ω) (Vmains = 230V , THD < 1%)Peak output current+/- 15AFrequency response+/- 0.1dB (10Hz – 20kHz) +/- 3.0dB (1Hz – 100kHz)Channel Imbalance< 0.2dB (10Hz – 20kHz)Total harmonic distortion (THD)<0.002% (Power Out= 50W @ 1kHz, BW = 20Hz – 20kHz)Signal-to-noise ratio> 107dB (BW = 20 – 20kHz ) >109dB(A-weighted BW = 20 – 20kHz)Damping factor>100 (8Ω Load @ 1kHz)Inputs1 x RCAOutputsSpeaker Binding Post TerminalsDimensions80 x 444 x 330.3mmNet weight7.8kg
