Heat Alarm Heat Detector Mains Battery Back Up

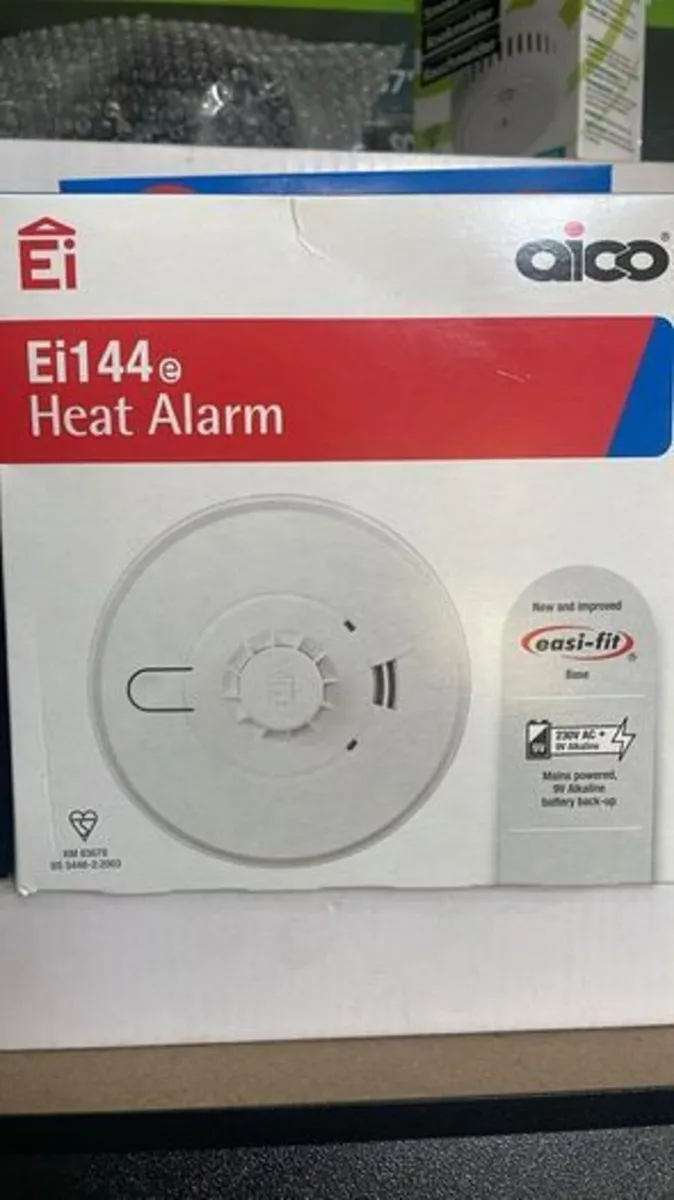

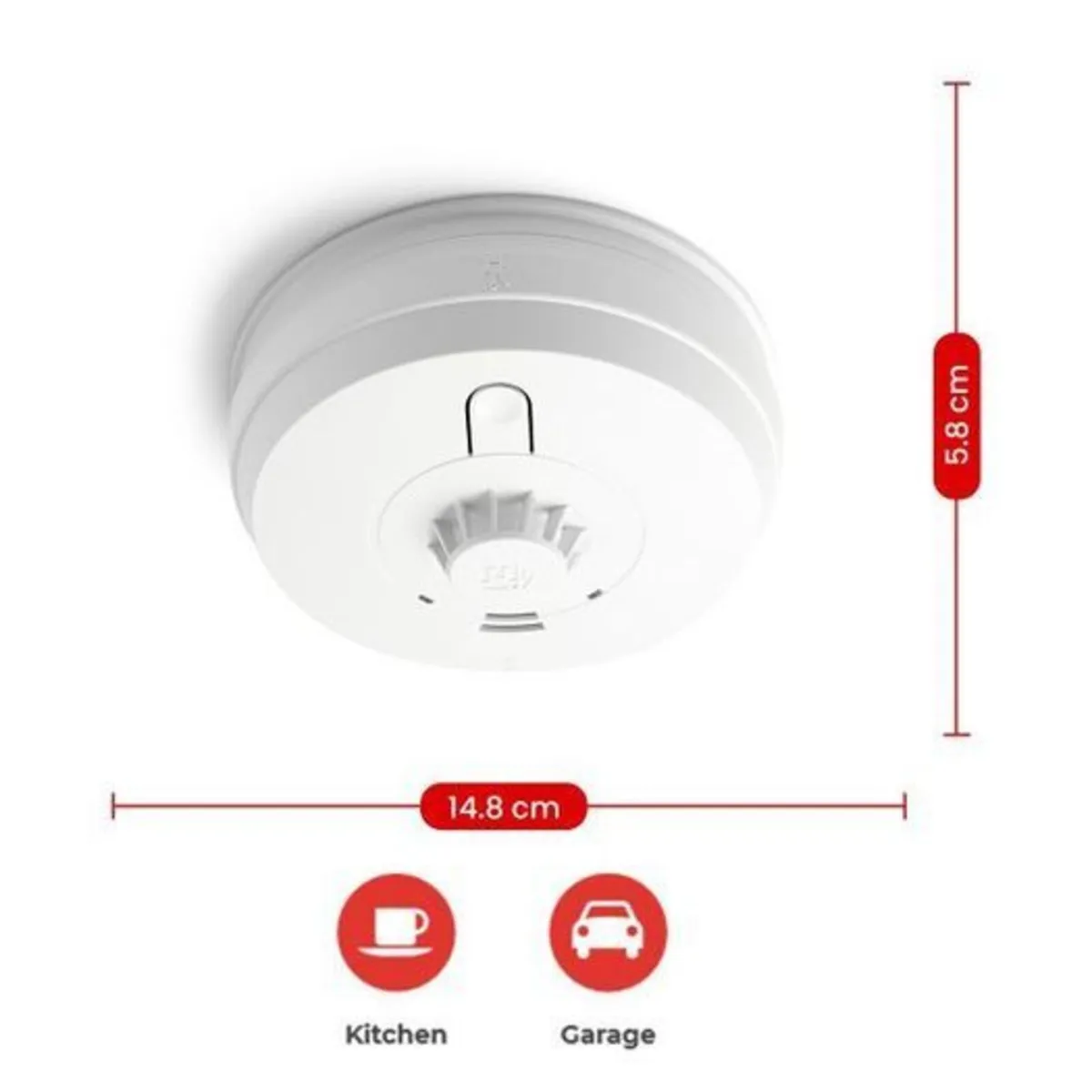

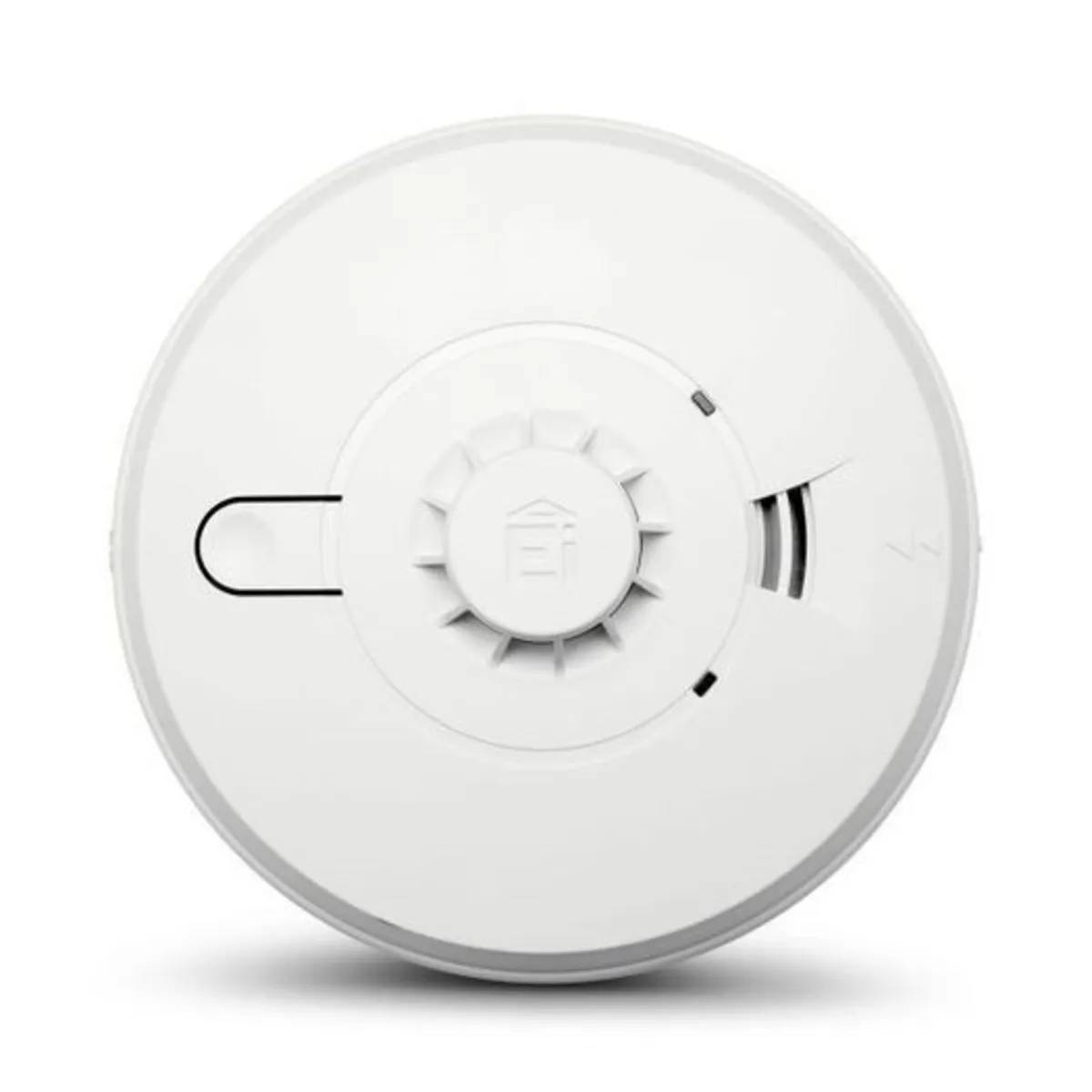

Ei144e Heat Alarm The Ei144e Heat Alarm is a mains powered unit and can be interlinked with other Ei smoke alarms through either a hard wired or wireless interconnection. Heat sensor – responds to heat build-up from large flaming fires (triggers at 58°C) Mains powered with 9V Alkaline battery back-up Easi-fit base for quick and simple installation Grade D and compliant with Irish legislation Kitemarked to BS 5446-2:2003 5 year guarantee Power and Battery Back-up The Ei144e Heat Alarm is a mains powered alarm with a 9V Alkaline battery back-up and contains a thermistor that triggers when the temperature of 58ºC is reached. As this alarm contains a 9V Alkaline battery back-up, this battery will need changing over the course of its 10-year life. Alarm Siting Different alarms sensors work best at detecting different types of fire and so should be sited in appropriate rooms throughout a property. Heat alarms are best at detecting large, fast flaming fires which are commonly caused by kitchen fires. The Ei144e is suitable for: Kitchen and Garage The Heat alarm will react to the heat in the Kitchen or Garage rather than smoke, making it more resistant to fumes, such as burnt toast and therefore less likely to false alarm. easi-fit base The alarm is supplied with an easi-fit base to make it as quick and simple to install. RadioLINK Technology As with the rest of the 140e Series alarms the Ei144e Heat alarm can be interconnected with other alarms and accessories through hard wire connection or, for less mess and disruption, by RadioLINK wireless interconnection. Technical Specification Sensor Type: Thermistor – Operates at 58°C Supply Voltage: 230V AC, 50Hz Battery Back-up: 9V Alkaline Replaceable Power Consumption (W): 0.75 Sound Level: 85dB(A) at 3m Indicators: Green – Power / Red – Alarm or fault Operating Temperature: -10°C to 40°C Humidity Range: 15% to 95% relative humidity Button Test: Simulates a high temperature to check the Thermistor, electronics and horn
