Hikvision Wired LCD Panel

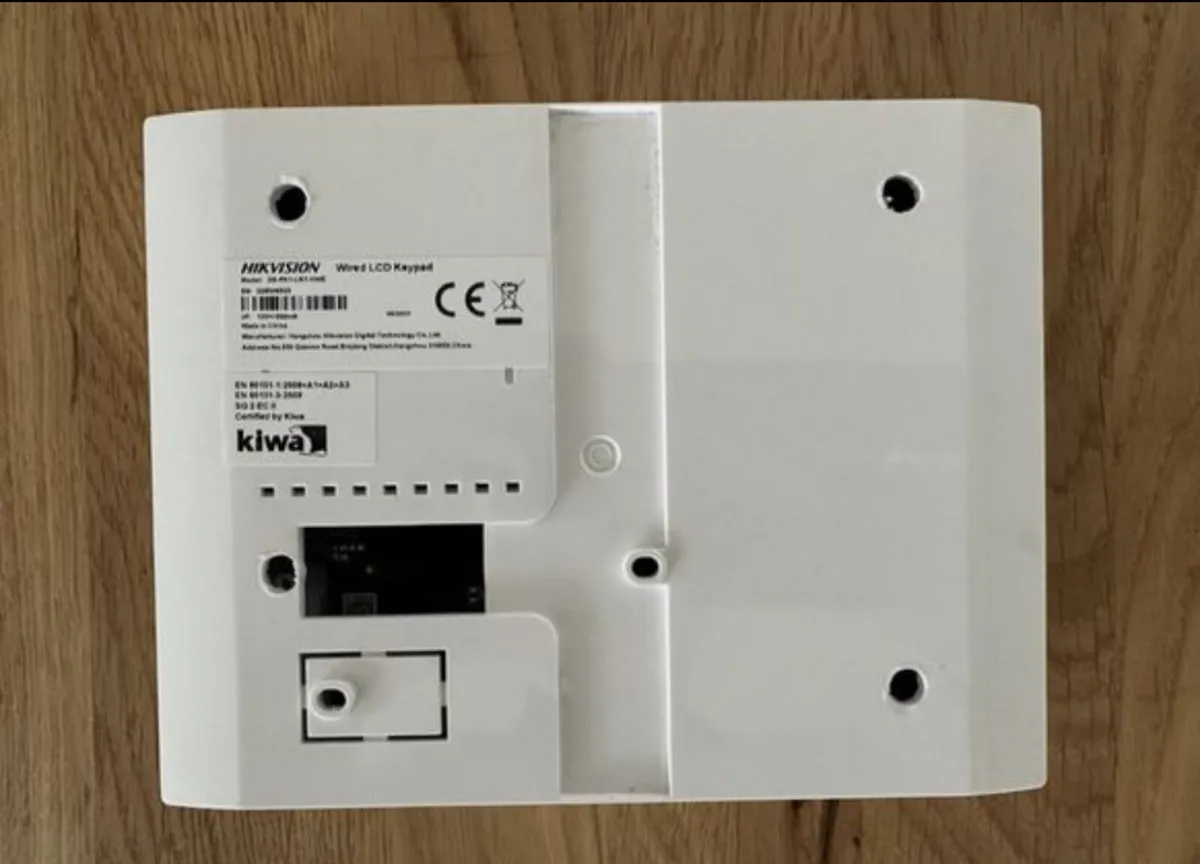

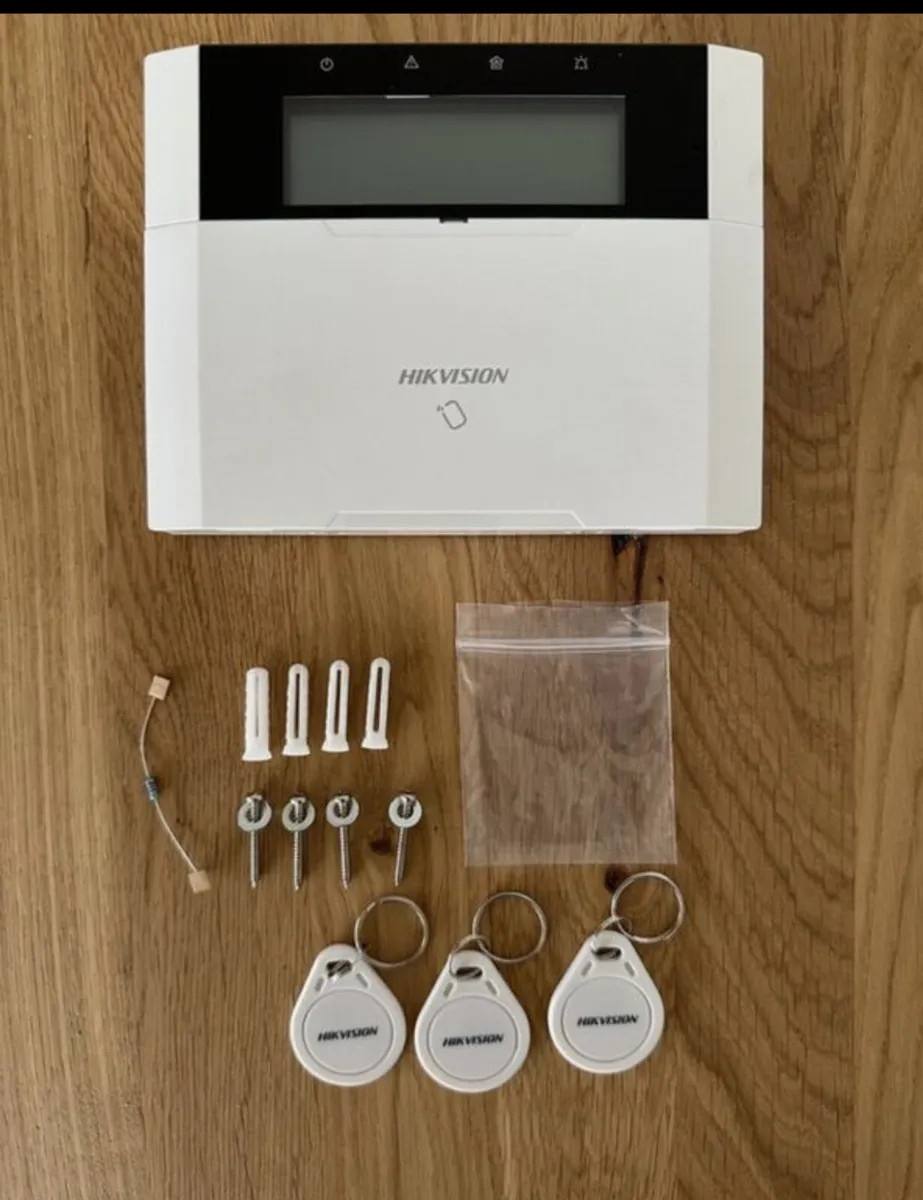

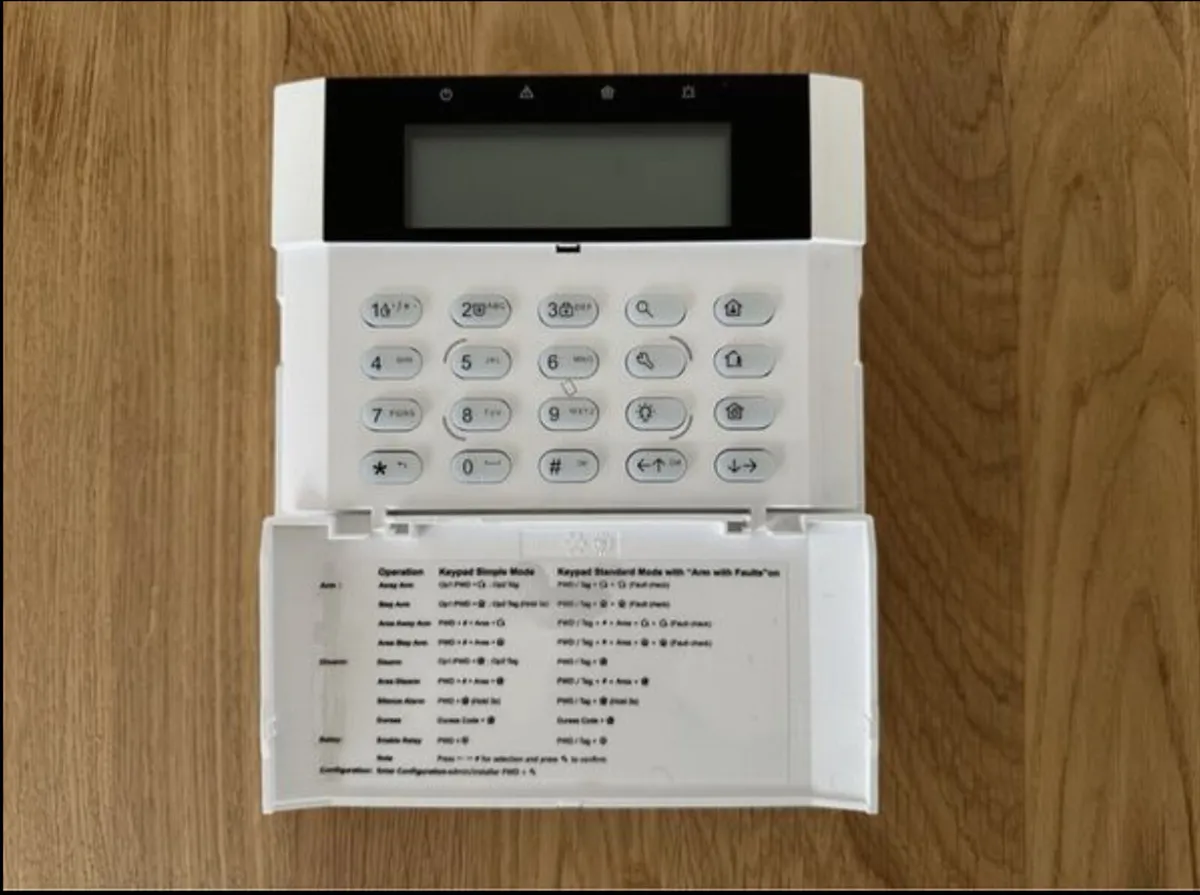

Up for sale is the Hikvision Wired LCD Panel Part number: DS-PK1-LRT-HWE In the used, but very good condition 4-wire connection to the control panel needed (the compatible control panel is for instance DS-PHA64-LP) Comes with complete mounting accesory Will be packed in the unoriginal box Please note! diameters of 4 holes for wall mounting were increased. Therefore 4x washers were added to the original screws Hardware features Tag reader built in 1 Built-in Tag Reader Serial port 1 TTL Serial Port Tamper-Proof 1 Back-cover Tamper-switch（Will be damaged when tamper triggered） Buzzer 1 On-board Buzzer Function key 8 Function keys：Query，Away Aram，Stay Arm，Disarm，Alarm Output，Project，Left，Right RS-485 1 Speed-X bus Alarm input 2 On-board Alarm inputs Alarm output 1 On-board Alarm output Electrical characteristics Power supply 10.2 to 14.4 VDC Typical voltage 12 VDC Power consumption Maximum current：150mA @12VDC Quiescent current： 72mA @12VDC Wireless transmission RF frequency 868MHz Display Numeric key 0 to 9，*，# Display screen LCD Screen Indicator 4 indicators and 1 backlight： 1. Power：Green 2. Faults：Fault-Orange / Alert-Flashing orange / Find me mode-flashing green 3. Armed：Blue 4. Alarm：Red 5. Keypad button backlight：White General Dimension(WxHxD) 150mmx115mmx28mm Color White Operation temperature - 10 °C to + 55 °C (14 °F to 131 °F) Operation humidity 10%～90% Device management Keyfob 64
