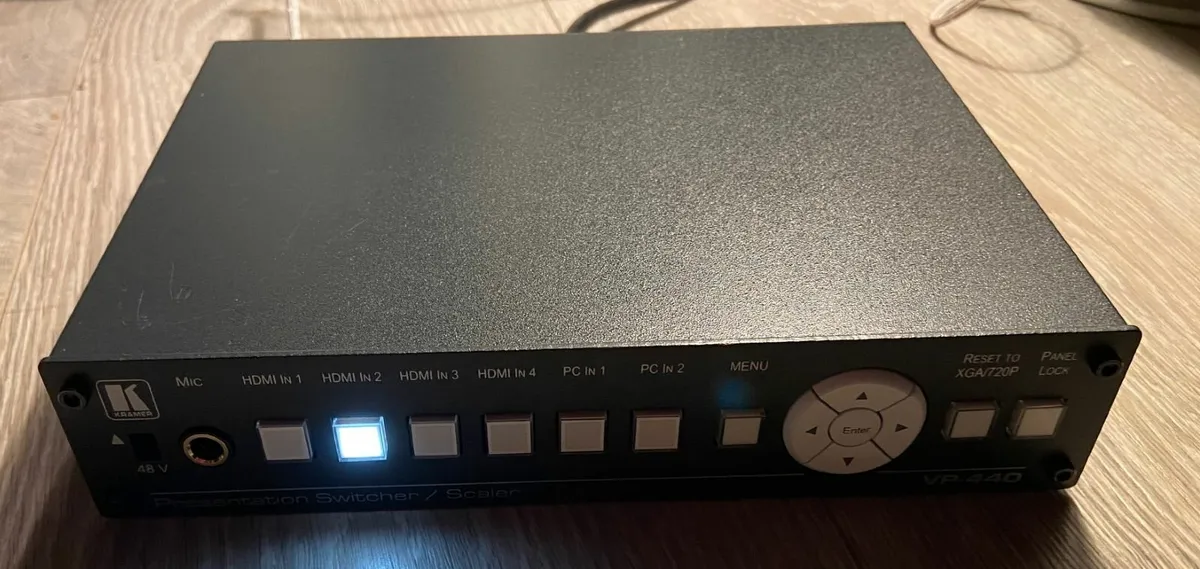

Kramer VP-440

The VP−440 is a high−performance presentation scaler/switcher with four HDMI and two computer graphics (VGA) inputs. The unit scales the video, embeds the audio and outputs the signal to an HDMI output and an HDBaseT output simultaneously. The unit includes analog and embedded audio inputs and outputs. • PixPerfect™ Scaling Technology — Kramer’s precision pixel mapping and high–quality scaling technology. High–quality 3:2 and 2:2 pull down de–interlacing and full up — and down–scaling of all video input signals. • HDTV Compatible. • HDCP Compliant. • HDBaseT Certified. • System Range — For the HDBT inputs and outputs, up to 70m (230ft). • Cables — For optimum range and performance using HDBaseT™, use Kramer's BC–UNIKat cable. Note that the transmission range depends on the signal resolution, source and display used. The distance using non–Kramer CAT 6 cable may not reach these ranges. • Max VGA Resolution — 1920 x 1200 @60Hz. • Output Resolutions — Up to UXGA/1080p output resolutions. • Multiple Aspect Ratio Selections — Full, best fit, overscan, underscan, letter box and panscan. • Built–in ProcAmp — Color, hue, sharpness, noise, contrast and brightness. • Color Sampling — Supports 4:4:4 (RGB and YUV) as well as 4:2:2 (YUV) color sampling in native mode. • Constant Output Sync — No output disruption while switching between inputs when no video is detected. • Powerful Audio Features — Via DSP technology including audio equalization, mixing, delay, etc. • Auto Input Switching — Last connected & auto–scan, selectable. • Audio — Unbalanced stereo and embedded audio for HDMI/HDBT with individual input level controls. • Companion AFV (Audio–Follow–Video) — Stereo audio for every input, on terminal blocks. • Microphone Input — For mixing, switching or talk–over. • Dedicated RS–232 Port — For bidirectional data tunneling via HDBaseT. • Front Panel Lockout. • Non–Volatile Memory — Saves final settings. • Flexible Control Options — Front panel buttons, Ethernet with built–in
