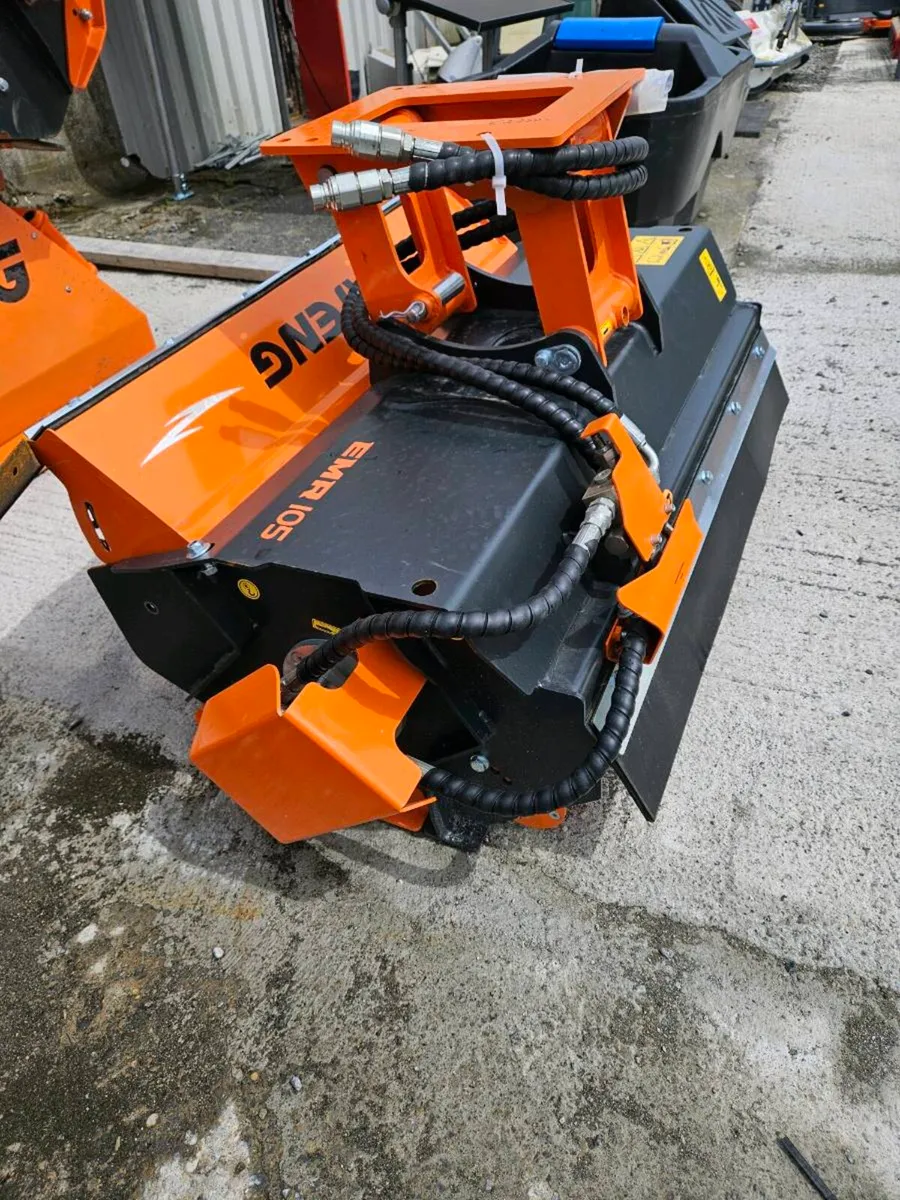

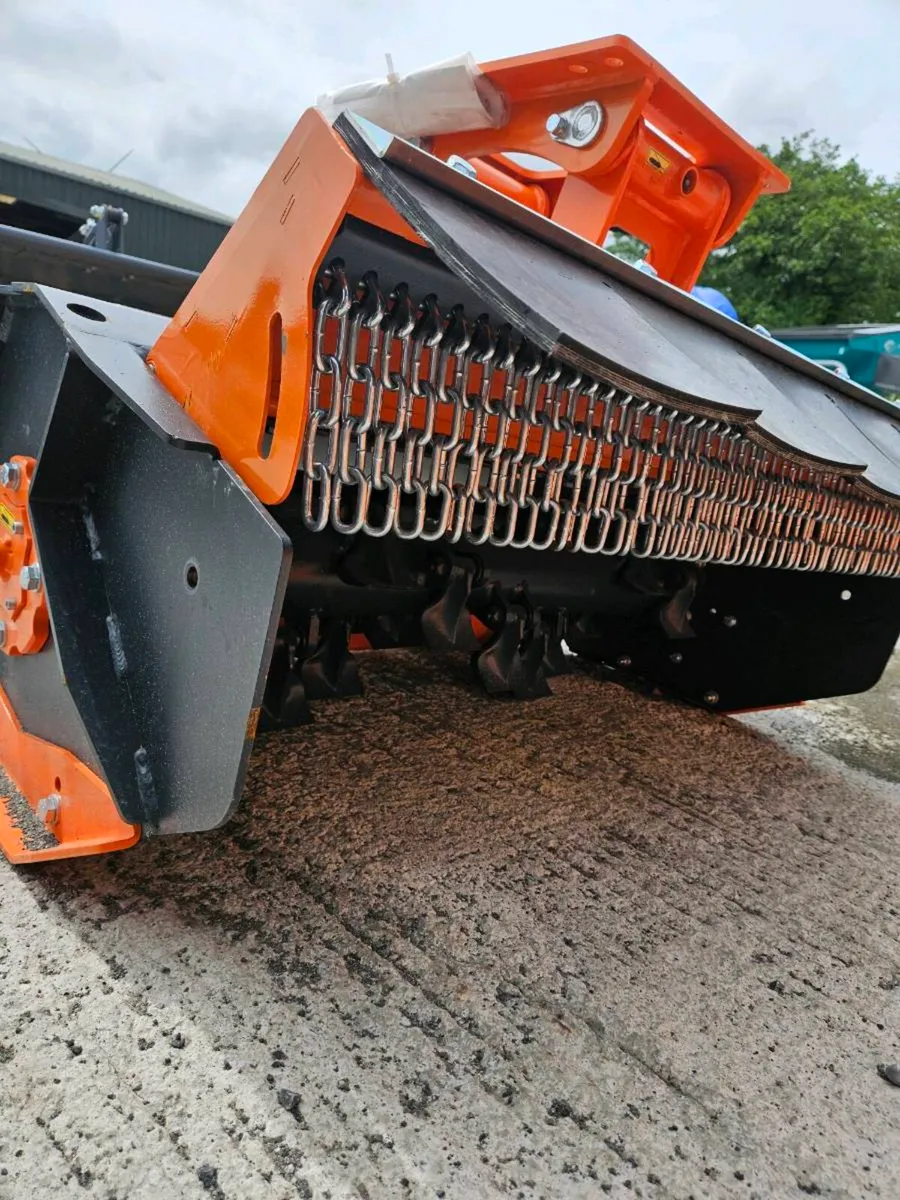

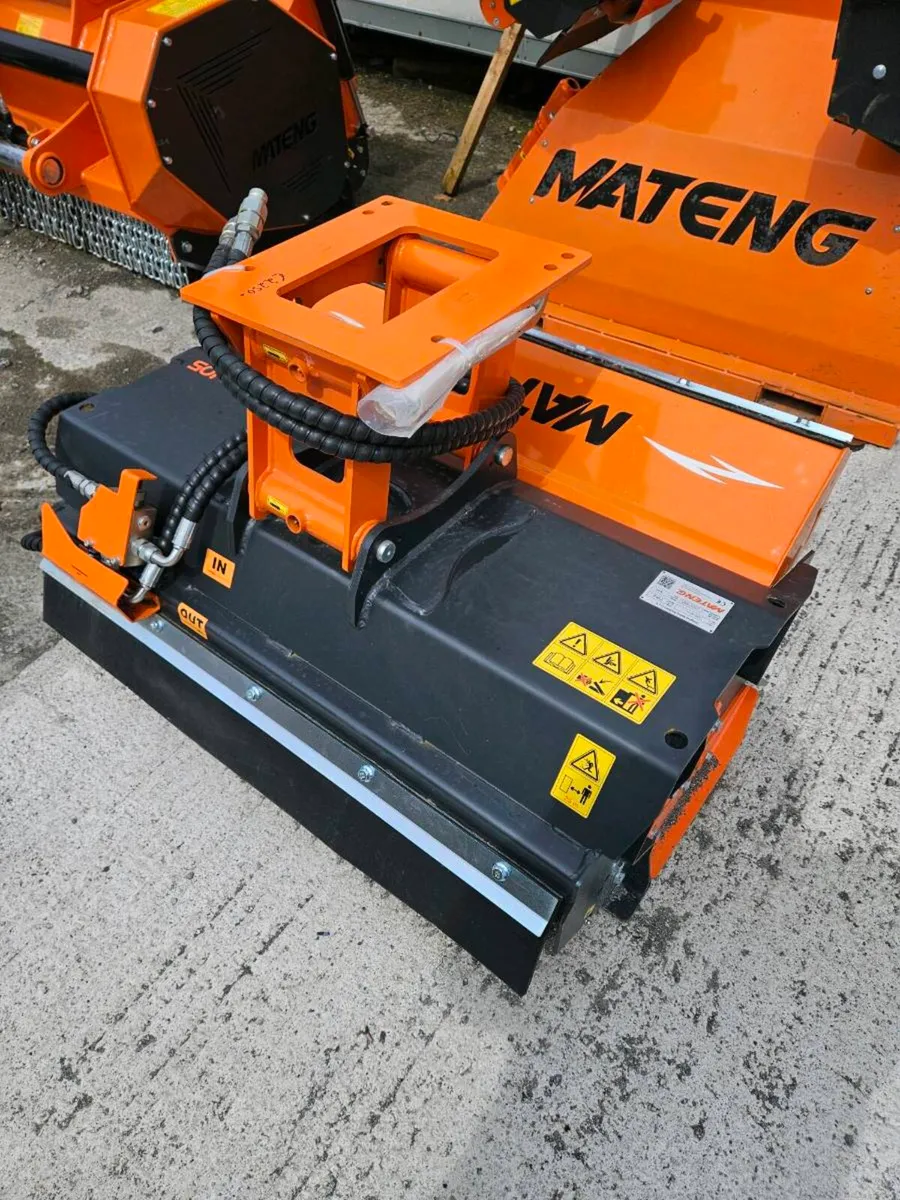

1.05mtr Digger flail mulcher Head

Flail mulcher head for 2 to 6 tonne digger. EMR 105CM working width. €2250+vat 2 year warranty Features of EMR85/105 light flail heads Standard： 1.Frame with internal and external reinforcements. 2.Self-leveling parallelogram device，mechanically lockable. 3.Pressure relief and anti-cavitation valve. 4.3 ways flow control valve-pressure Features: (1) Italian, gear motor with high working pressure and high speed (3500rpm); (2) High-performance shaft seal, high temperature resistance, surface linear speed rotation up to 6m/s, can make the motor housing pressure 30bar, effectively reduce the oil leakage failure of the motor shaft seal; (3) The motor directly drives the cutter shaft for mowing, with compact structure and beautiful layout. Flow speed control valve Features： (1) A pressure-compensated flow control valve composed of a logic valve and a throttle valve, the output flow of the R port is stable, and the flow rate is set before the factory to match the motors with different speeds and marked with a range of ±1; (2) The valve block is integrated with an oil replenishment relief valve, which sets the maximum working pressure of the motor and supplies oil to the motor during shutdown. Connector floating device Features: (1) The floating device is composed of a parallel four-bar linkage mechanism. During the mowing operation, when encountering high-slope and low-pit terrain, it can not only allow the mowing head to float with the terrain without changing the mowing angle, but also protect the mowing. The machine can prevent damage from impact, and can also prevent missed cutting and avoid secondary operations; (2) Lock the latch, and lock the floating mechanism for straight work when needed, such as pruning fence branches. SKF bearing-Knife Shaft Rotary Support Bearing The rotary support bearing of the mower shaft adopts imported brand (SKF), which has higher rated load and lower noise, which greatly increases the service life of the machine.
