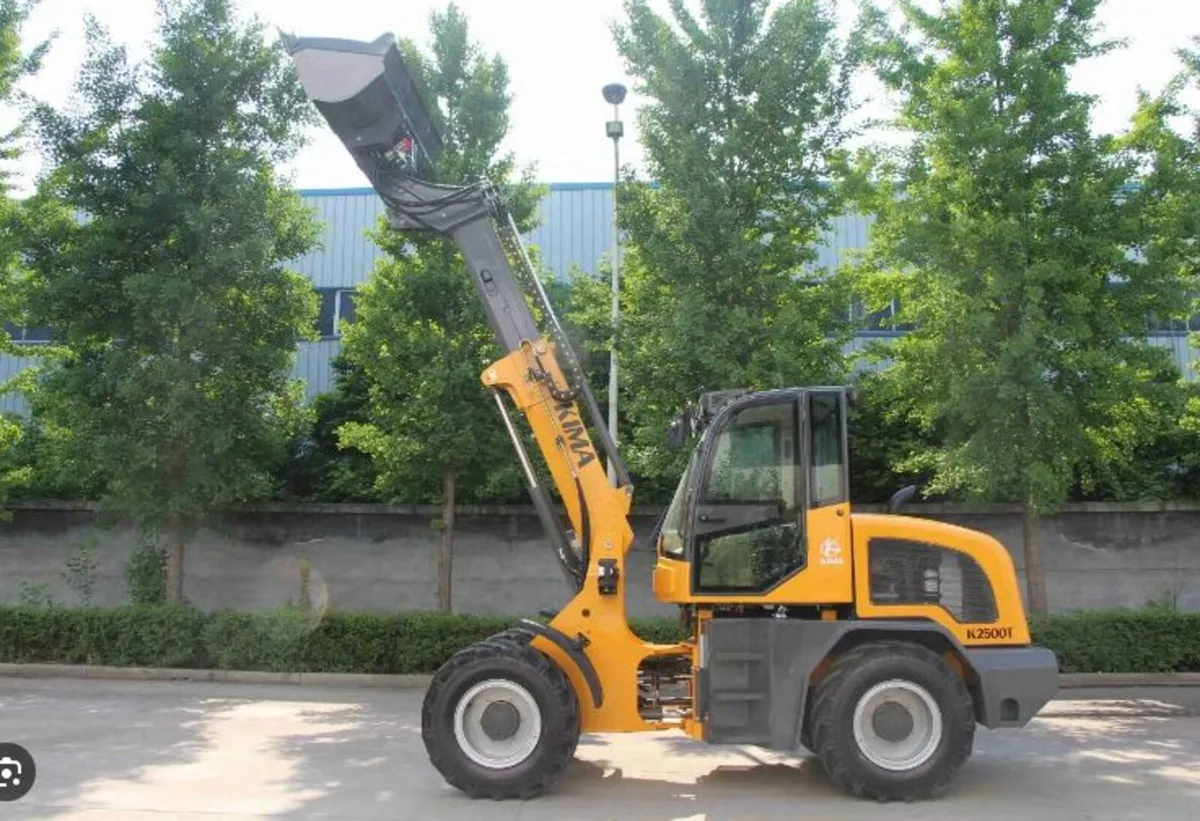

Kima 2500T Loader

Engine Options: Available with either a 55 kW (74 hp) Yunnei Euro V diesel engine or an upgraded 85 hp Yanmar engine.Emissions Standard: Fully compliant with Euro Stage V and EPA Tier 4 requirements.Drive System: Four-wheel drive (4WD) with a torque converter hydraulic transmission.Travel Speed: Stepless speed control ranging from 0 to 19 km/h.Axles: Oil-immersed wet braked axles for heavy-duty stopping power.Loader & HydraulicsBoom Design: Heavy-duty telescopic arm with internally routed hydraulic lines to prevent external mechanical damage.Maximum Dump Height: 3,766 mm when fully extended.Hydraulic Flow: Rated up to 125 L/min, configured with 4 hydraulic lines and an auxiliary pressure release button.Forces: 35 kN maximum tractive force and 25 kN maximum breakout force.Hitch System: Equipped with a hydraulic quick hitch (available in Pin & Cone or Euro headstock configurations).Dimensions & StructureOverall Dimensions: 5,631 mm (Length) x 1,870 mm (Width) x 2,736 mm (Height).Tire Size: Large 16/70-20 agricultural/construction traction tires.Body Design: Heavy-duty molded steel covers with an easy-to-open engine hood for simplified maintenance.
