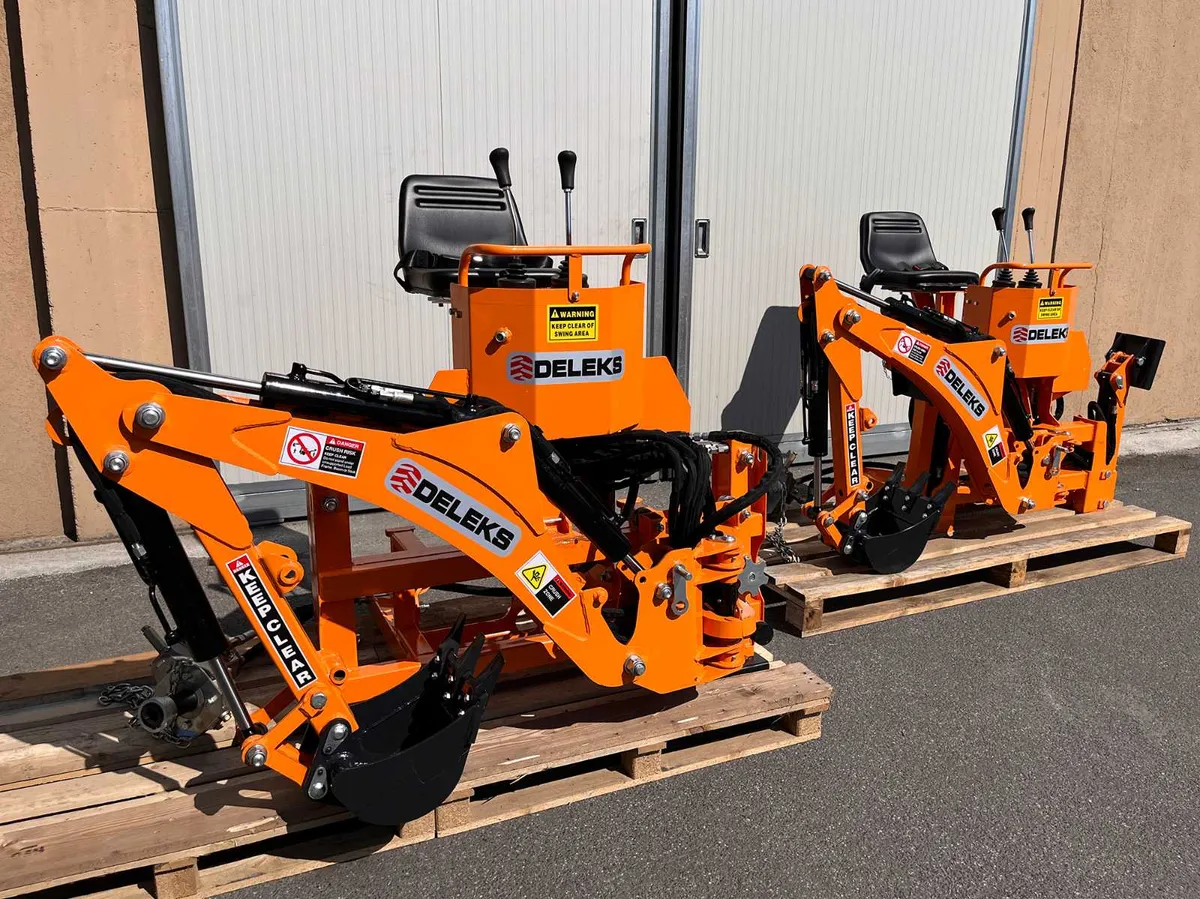

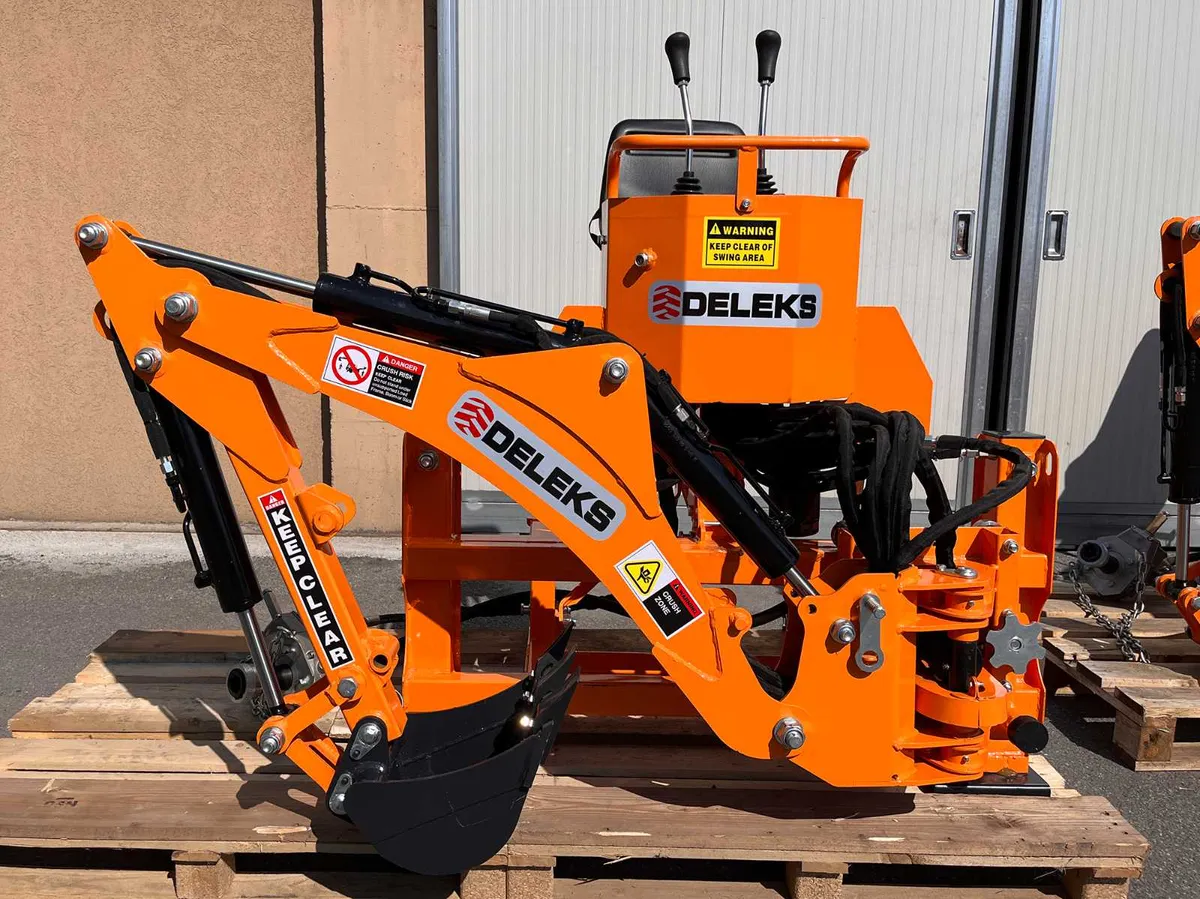

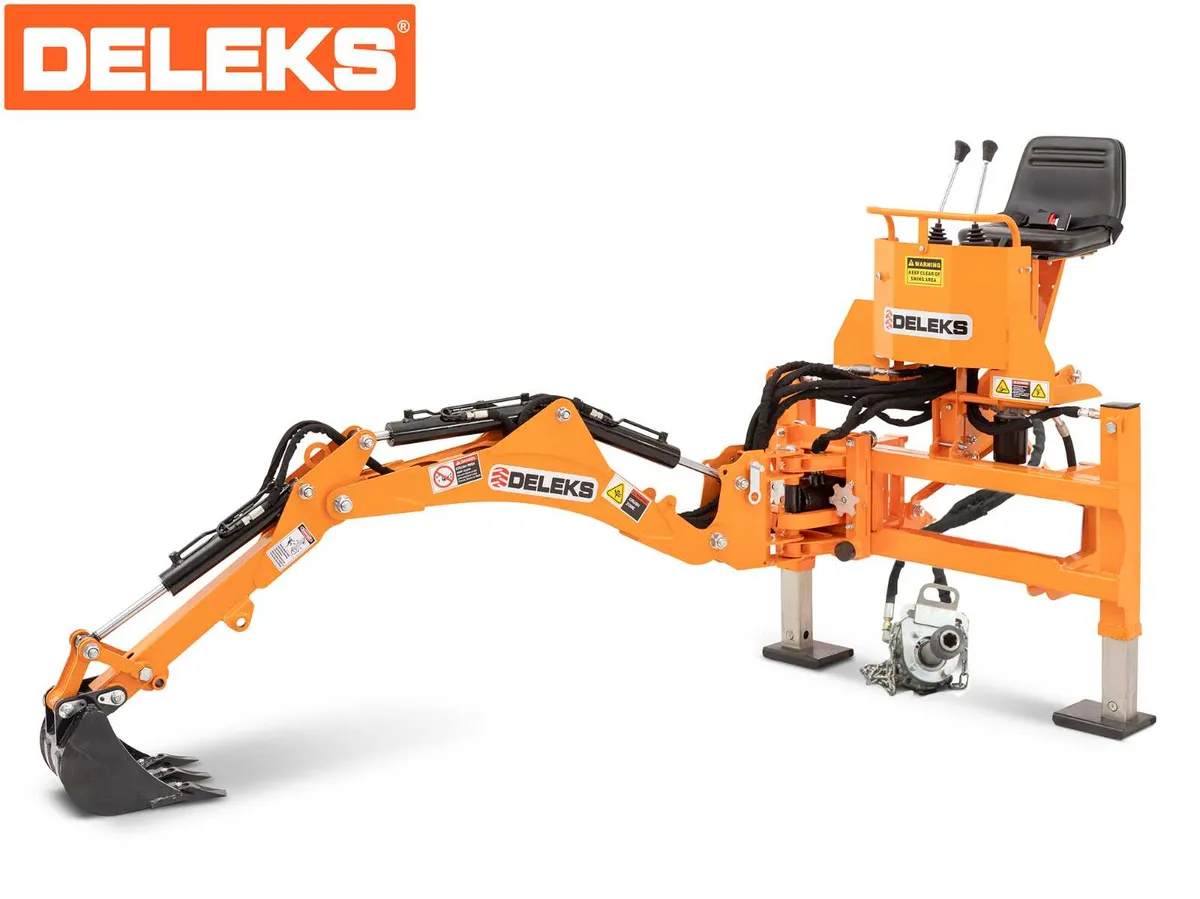

Mini Backhoe for tractor - Side shift frame

VAT INCLUDED TRANSPORT INCLUDED Italian brand DELEKS® Mini backhoe for universal compact tractors - DELEKS® DRS-1000T - 270kg - Side shift frame with manual locking - Oil system. OVERVIEW Dig ditches, dig soil, trench plumbing lines, haul piles of dirt or rocks. Suitable for mounting on all types of tractors 18-45 hp with 3-point attachment cat. 1. Arm digging force: 1100 kgf Bucket digging force: 150kgf BENEFITS AND FEATURES Side shift frame with manual locking. Oil system. Practical deign, comfortable seat and foldable. Ergonomic control position. Stabilizing legs individually steerable. Hook lock for safe transport. Bucket (11.5 in - 29cm). Simple to connect to the tractor even by a single person, pins and bushings on seams of high quality guarantee long durability. Supplied with a two year warranty. Weight 270.0 kg / 550.0 lb 3 point linkage Cat. 1 (ø 19.0-22.0mm) Bucket Width 290.0 mm / 11.5 in Spacing between the 2 lower points 590.0 - 680.0 mm / 23.0 - 27.0 in Hydraulic Pipes (2) WP-400 bar Min./Max. Relief Pressure 120 - 200 bar Min./Max. Flow 25 - 40 l/min Slewing Angle 180° HP min 18 Hp Arms cylinders diameter 63.0 - 25.0 mm / 2.5 - 1.0 in Independent Stabilizers 2 Digg Depth (B) 950.0 mm / 3.12 ft Loading Height (A) 1690.0 mm / 5.54 ft Unload Height (E) 1800.0 mm / 5.90 ft Max Height (C) 2280.0 mm / 7.48 ft Digging Width (D) 2440.0 mm / 8.00 ft Leg Spread 1150.0 mm / 3.77 ft ————————————————————— Price VAT and TRANSPORT included ———————————-—————————— For more information or to order please visit our new website, or send us an email to [email protected] www.deleks.eu
