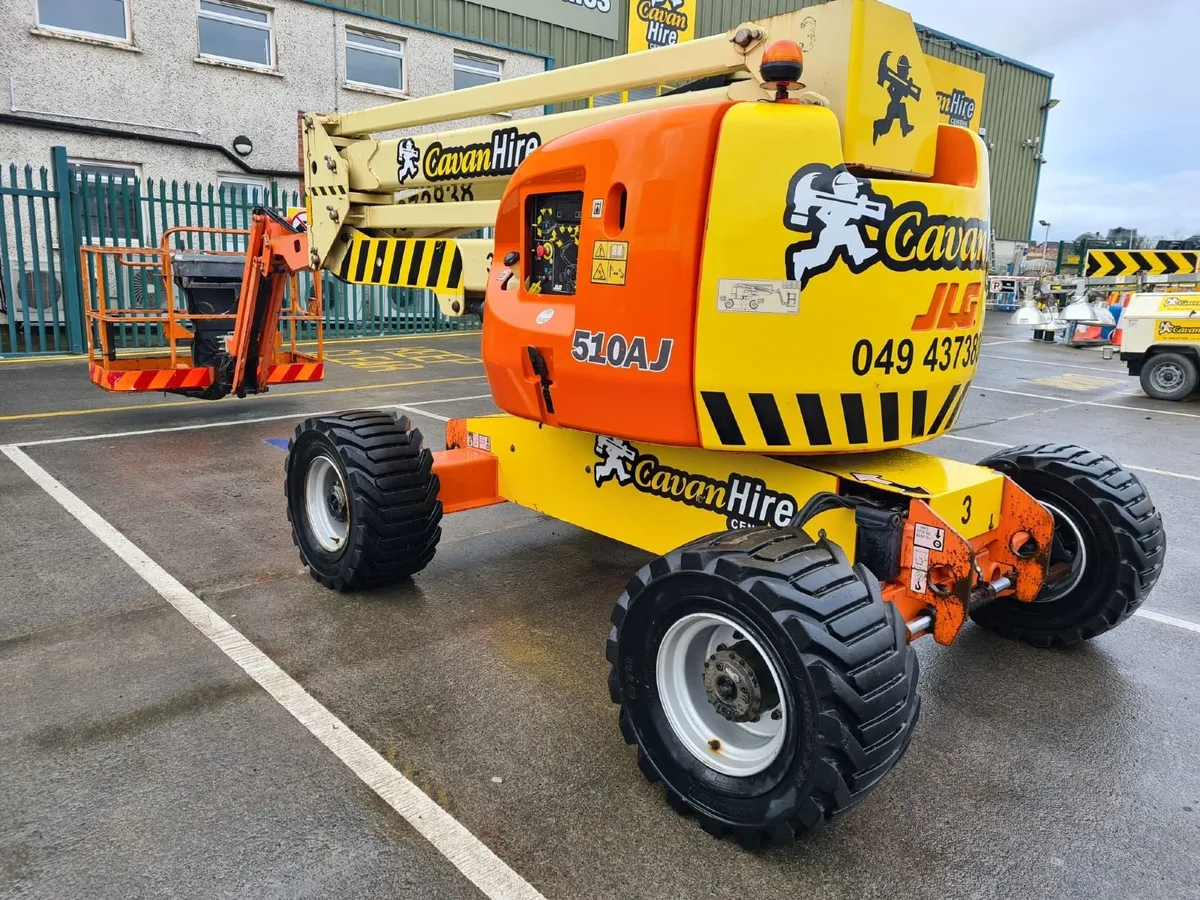

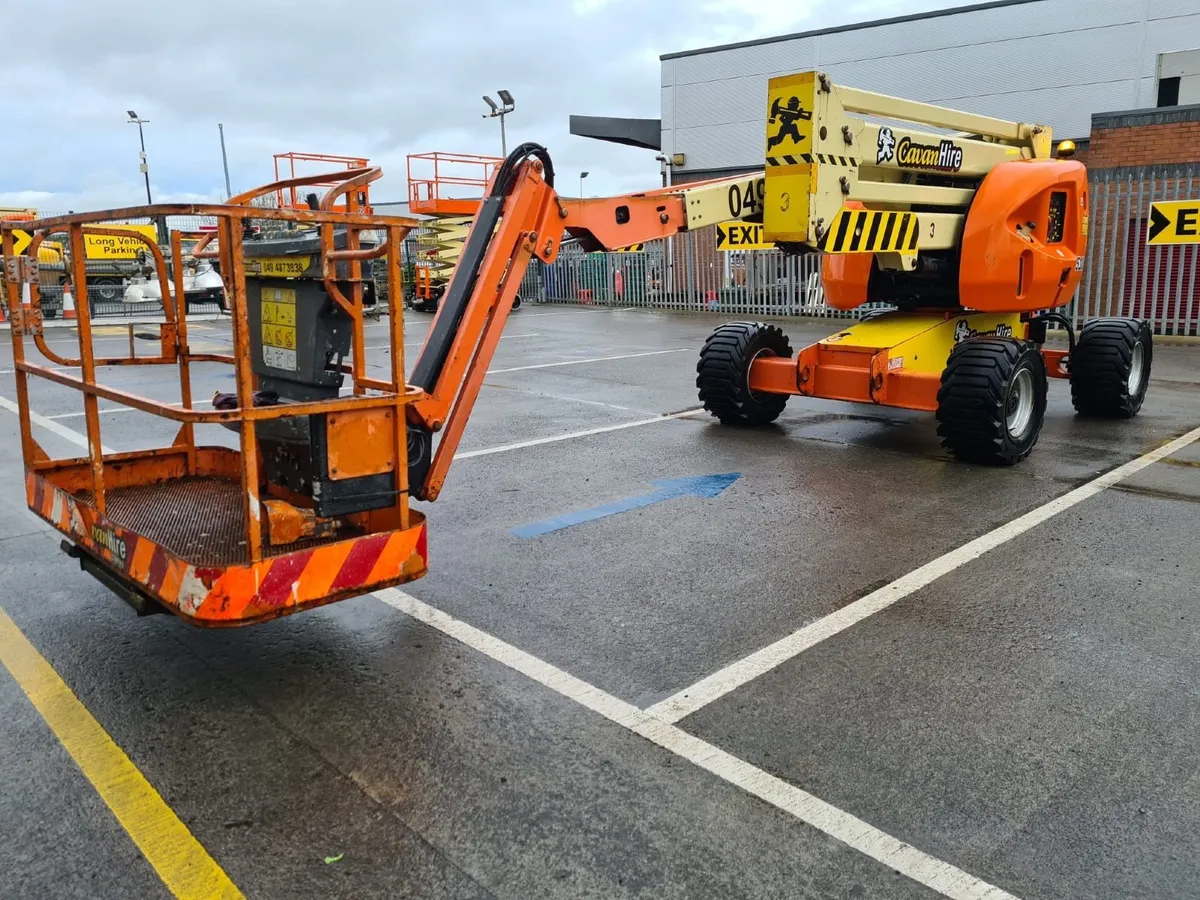

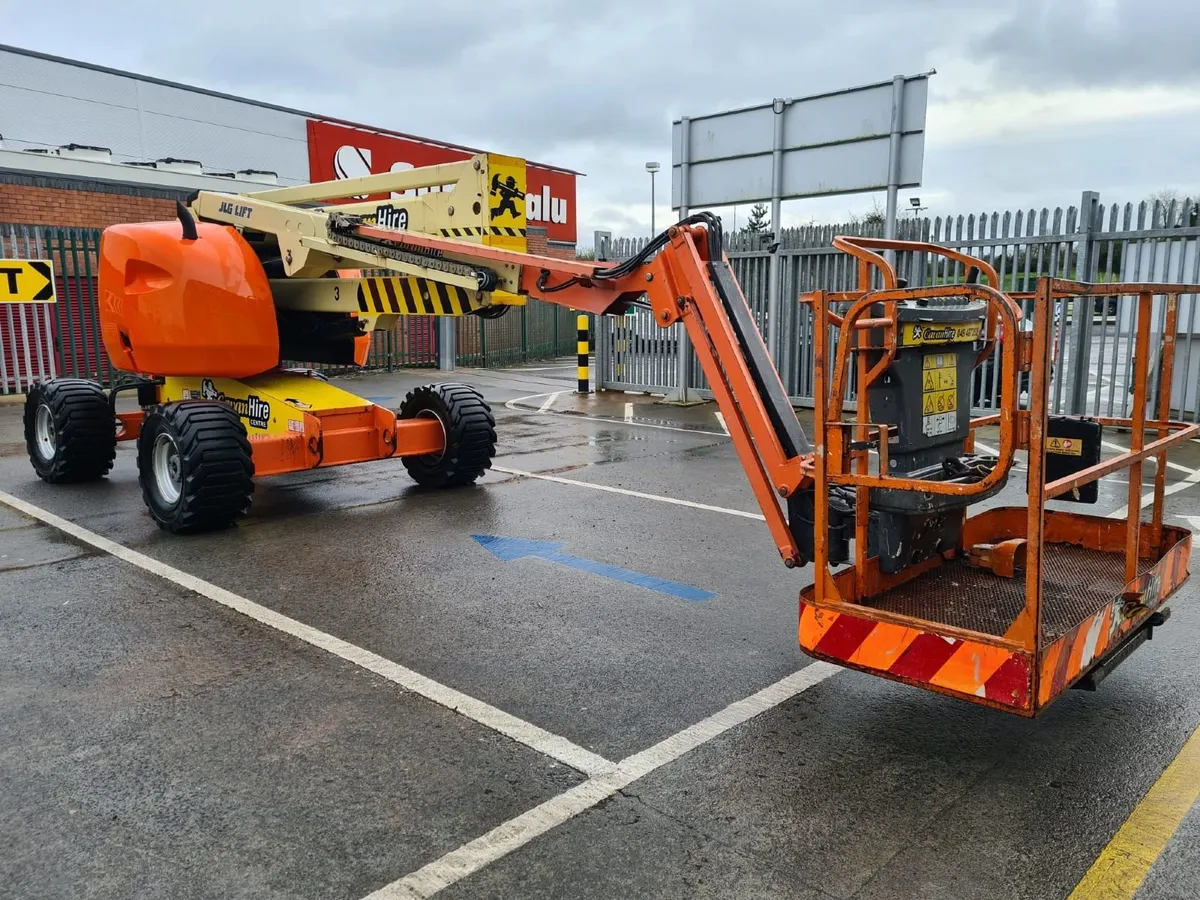

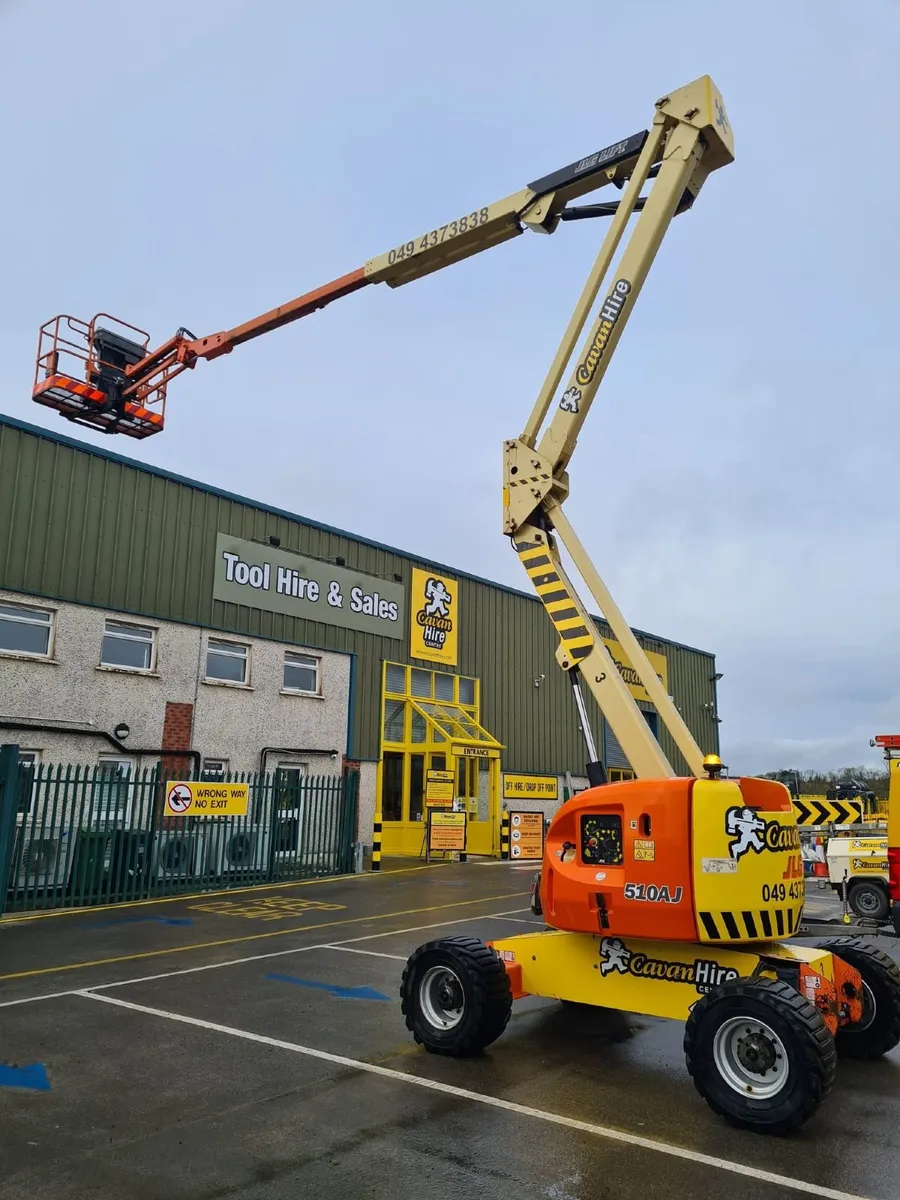

Articulated boom hoist JLG 510 AJ, 51ft platform

Articulated boom hoist JLG510 AJ 51ft platform height Machine hours 4620 y/m 2014 Deutz diesel engine Foam filled tyres Serviced regularly Certified 6 monthly One owner from new All controls and safety are working as it should PRICE - €16950+vat * Full proportional drive/steer joystick control Full proportional main boom and swing joystick Variable speed dial control for lower boom, telescope and platform rotate, 1.24 m (4 ft. 11 in.) 180 degree powered platform rotator AC power cable to platform Engine distress warning system Swing-out engine tray Spark arresting muffler Control ADE™ – Advanced Design Electronics System Hydrostatic transmission Four wheel drive 4 degree tilt alarm and indicator light Rim protector foam filled lug tread tyres 12 x 16.5 Oscillating axle Lifting/tie down lugs Hour meter Ground control selector switch with key lock Platform tool tray * Power Source Diesel Engine (Deutz F3M1011) 35kW Fuel Tank Capacity 62.5 L / 16.5 gal Hydraulic Reservoir 113.6 L / 30 gal Auxiliary Power 12V DC * Reach Specifications Platform Height 15.81 m / 51 ft 10 in Horizontal Reach 9.48 m / 31 ft. 1.5 in Up and Over Height 7.63 m / 25 ft. 0.5 in Turntable Rotation (non continuous) 360° Platform Capacity – Unrestricted 230 kg / 500 lbs Platform Rotator (Hydraulic) 180° Jib – Overall Length 1.24 m / 4 ft. 1 in Jib – Range of articulation 145° / +75°/ -70° * Dimensional Data A. Platform Size 0.76 m x 1.83 m / 30 in. x 72 in B.Overall Width with 33/1550 x 16.5 tyres 2.34 m / 7 ft. 8 in C. Tailswing (working condition) Zero D. Stowed Height 2.26 m / 7 ft. 5 in E. Stowed Length 7.68 m / 25 ft. 2.5 in F. Wheelbase 2.34 m / 7 ft. 8 in G. Ground Clearance 0.36 m / 1 ft. 2 in Gross Vehicle Weight* 7,300 kg / 16,100 lbs Maximum Ground Bearing Pressure 3.37 kg/cm2 / 47 psi Drive Speed 7.2 km/h / 4.5 mph Gradeability 45% * Chassis Tyres - Foam Filled 33/1550 x 16.5 Axle Oscillation (standard) 0.10 ***** Search Genie Skyjack Manitou Niftylift Snorkel, jlg510aj boom self drive
