Electric Lithium Battery Pallet Stacker 1.5ton

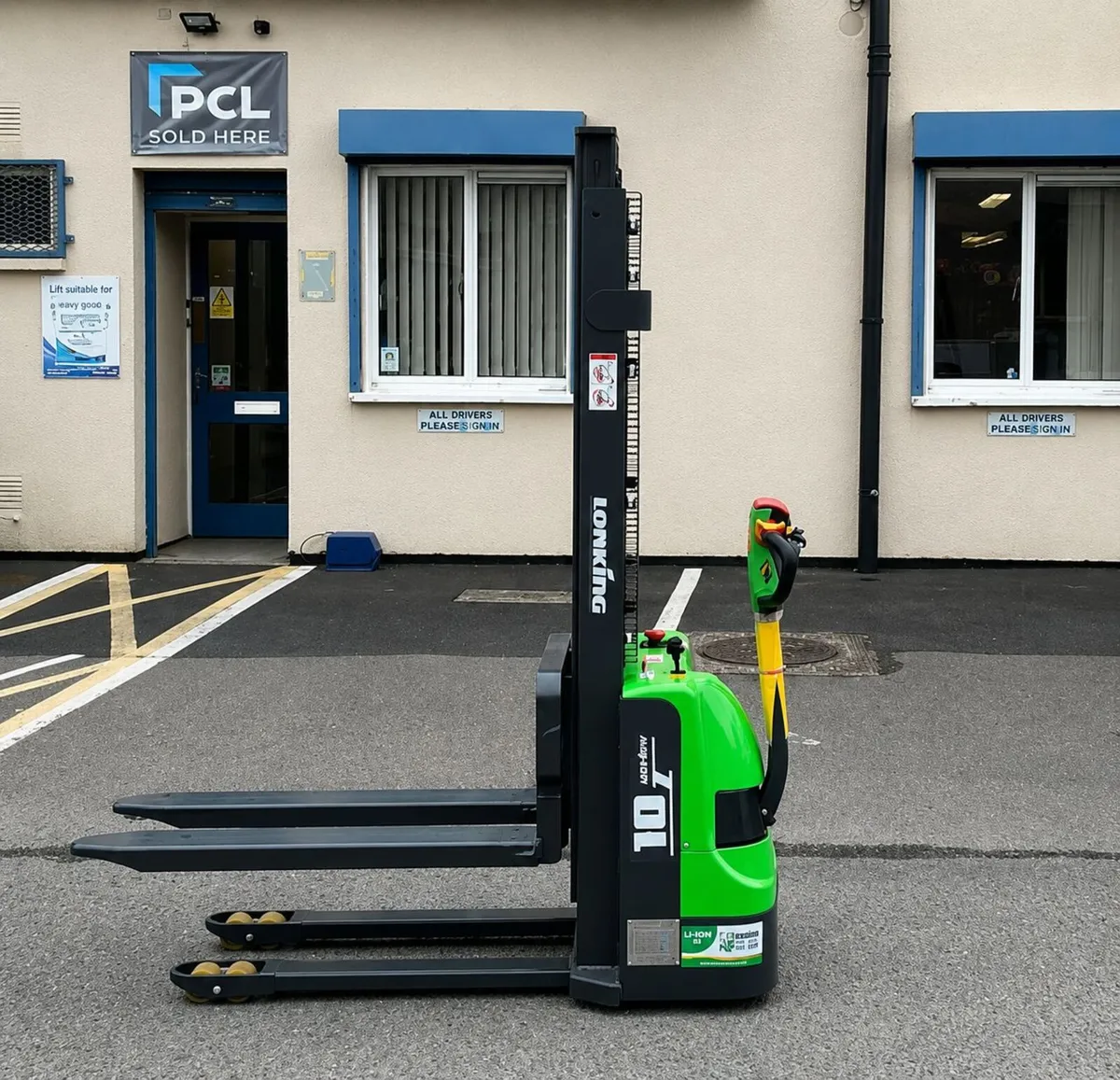

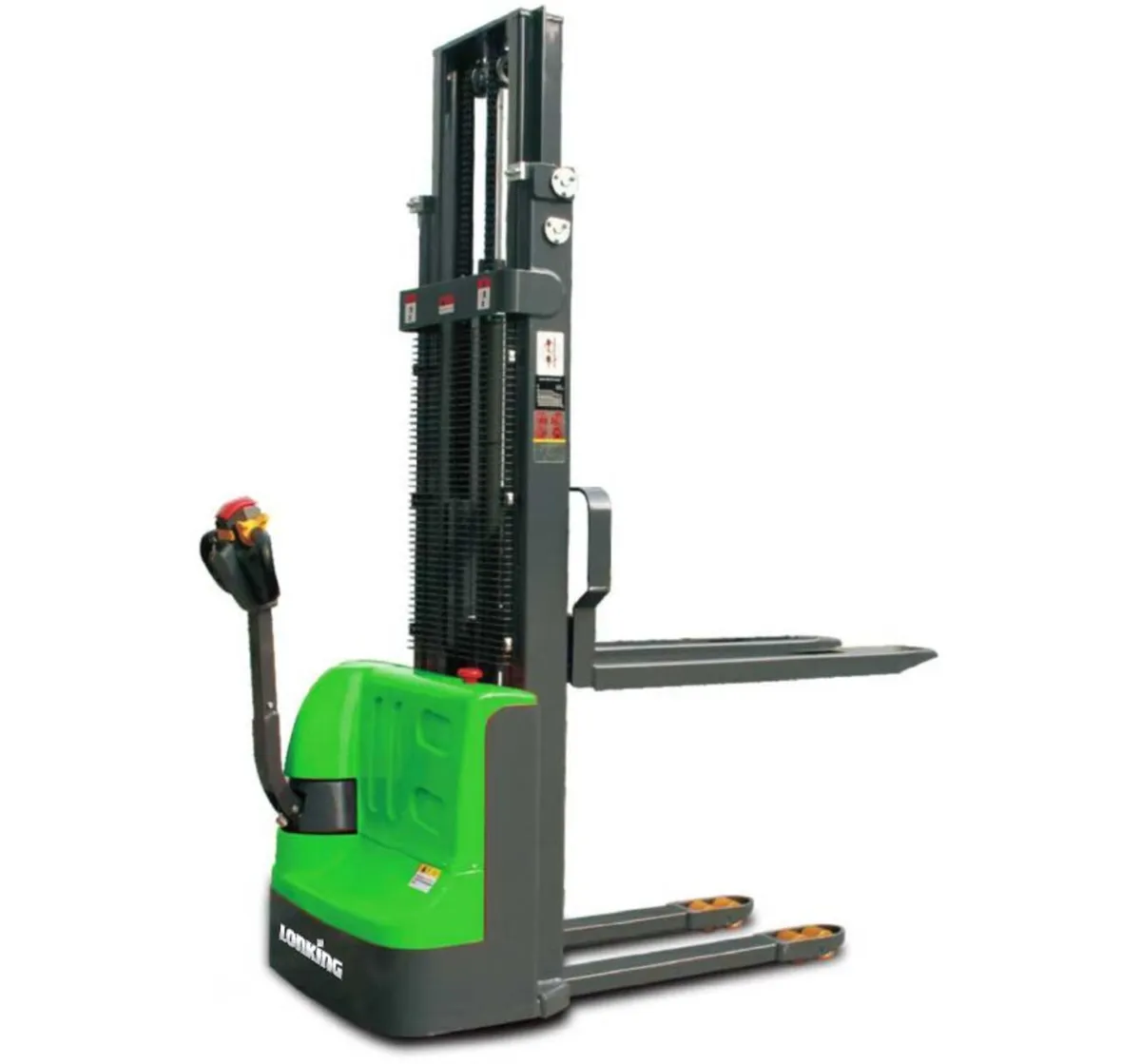

Lonking CL15JB Electric Lithium Battery Pallet Stacker 1.5ton The Lonking CL15JB Electric Pallet Stacker is a versatile and reliable solution for lifting and stacking tasks. Built with advanced lithium battery technology, it offers efficient performance, smooth operation, and minimal maintenance—making it ideal for warehouses, distribution centres, and industrial storage applications. The CL15JB combines strength, efficiency, and compact design, making it an excellent choice for businesses that need dependable stacking performance without high maintenance costs. With full warranty coverage on both the machine and battery, it’s a smart investment for improving productivity. Full Specifications Type – CL15JB Driving Mode – Electric Operating Mode – Pedestrian Rated Load Capacity – 1.5 ton Load Centre – 600 mm Size Front Overhang – 720 mm Wheelbase – 1167 mm Weight(Including Battery) – 430 kg Total Body Height When Lowered to the Lowest Point – 1995 mm Maximum Lifting Height – 3000 mm Total Body Height When Rising to the Highest Point – 3424 mm Minimum Fork Height – 86 mm Vehicle Length – 1740 mm Body Length – 590 mm Vehicle Width – 795 mm Fork Size – 1150/160/50 mm Outer Width of Fork – 570/695 mm Ground Clearance of Wheelbase Centre – 26 mm Aisle Width: 1000×1200 Pallet (1200 Placed across the Fork) – 2074 mm Aisle Width: 800×1200 Pallet (1200 Placed along the Fork) – 2040 mm Turning Radius – 1342 mm Battery Battery type – Lithium-ion Battery Voltage/Capacity – 24V/100Ah Battery Weight(±5%) – 54 kg Drive Control Type – DC Speed Control 2 Stage Mast Adjustable Legs Curtis controller Braking Type – electromagnetic DC System Warranty – 2 years
