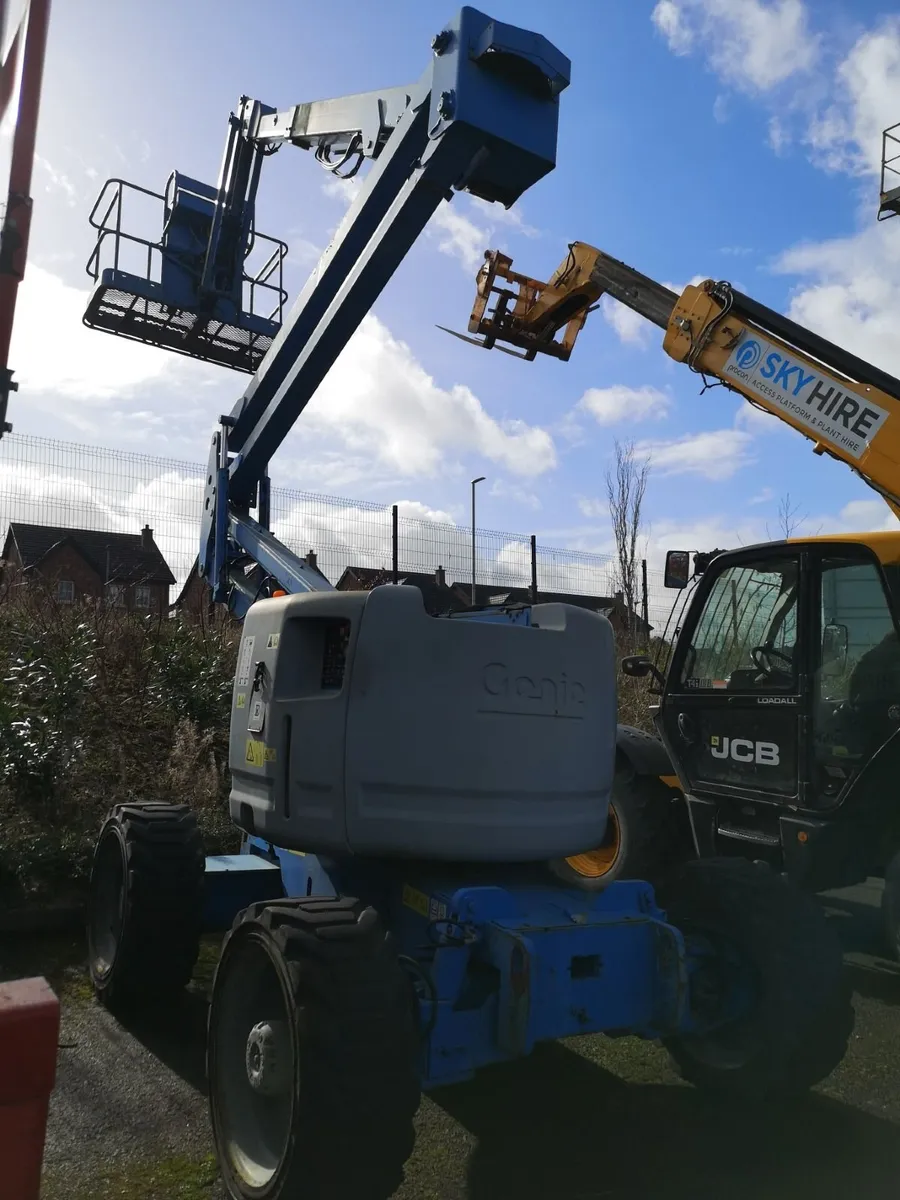

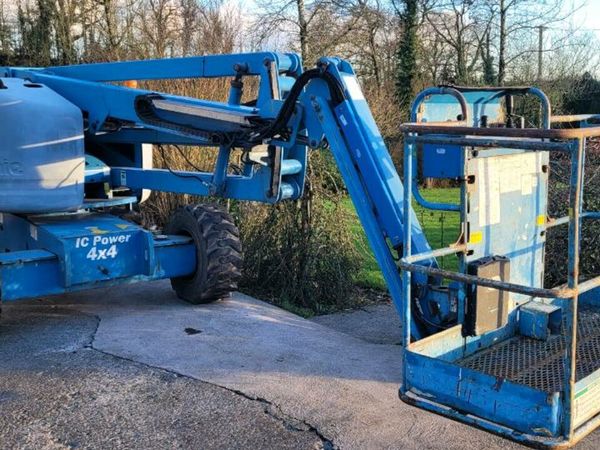

Genie Z45 4WD

Description Everything working as it should 6 months Loler & GA1 certs Price £15000+vat Measurements US Metric Working height max.(1) 51 ft 6 in 15.86 m Platform height max. 45 ft 6 in 13.86m Horizontal reach max. 24 ft 8 in 7.52 m Up and over clearance max. 23 ft 7 in 7.14 m A Platform length 2 ft 6 in 0.76 m B Platform width 6 ft 1.83 m C Height - stowed 7 ft 2.13 m D Length - stowed 21 ft 10 in 6.65 m E Width 7 ft 6 in 2.29 m F Wheelbase 6 ft 8 in 2.03 m G Ground clearance - center 1 ft 3 in 0.37 m Productivity Lift capacity max. - unrestricted 500 lb 227 kg Platform rotation 160° Jib length 5 ft 1.52 m Vertical jib rotation 135° Turntable rotation 355° Turntable tailswing 0 in 0 cm Drive speed - stowed(2) 3.1 mph 5 km/h Drive speed - raised 0.68 mph 1.1 km/h Gradeability - stowed(2) 45 % Tilt sensor activation (front to back/side to side) 2.5°- 4.5° / 4.5° Turning radius - inside/outside 5 ft 6 in / 14 ft 9 in 1.68 m / 4.50 m Tires (solid, non-marking) 315 / 55 D20 Power Power Diesel Auxiliary power unit 12 V DC Hydraulic tank capacity 22 gal 83 L Fuel tank capacity 17 gal 64 L Weight(3) and Floor Loading(4) Weight 14,363 lb 6,515 kg Tire contact pressure 60 psi 414 kPa Occupied floor pressure (tires) 190 psf 9.12 kPa Sound and Vibration Levels Sound Pressure level (ground workstation) 87 dBA Sound Pressure level (platform workstation) 82 dBA Vibrations 8 ft 2 in/s² 2.5 m/s2 Call: 00353 87 4422170
