McCloskey Screening and Recirculating System

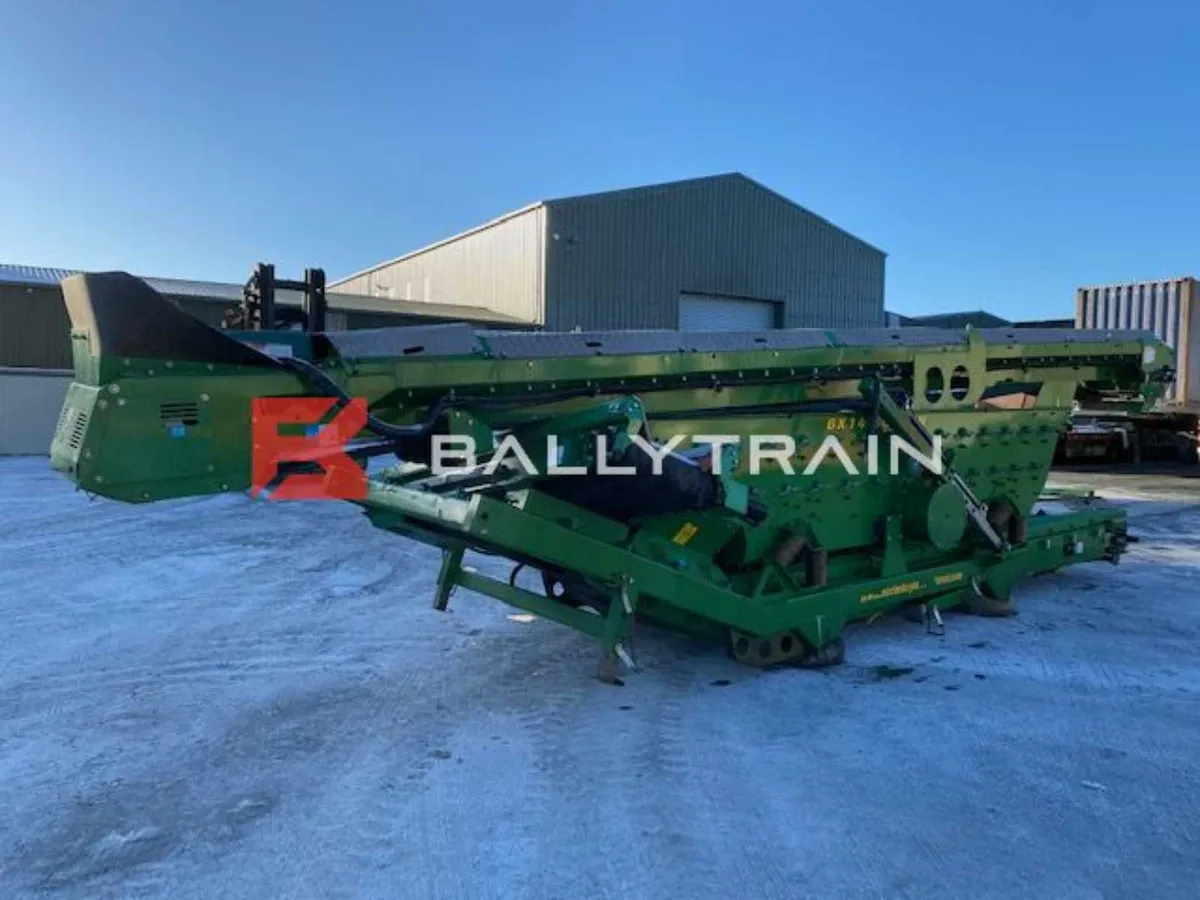

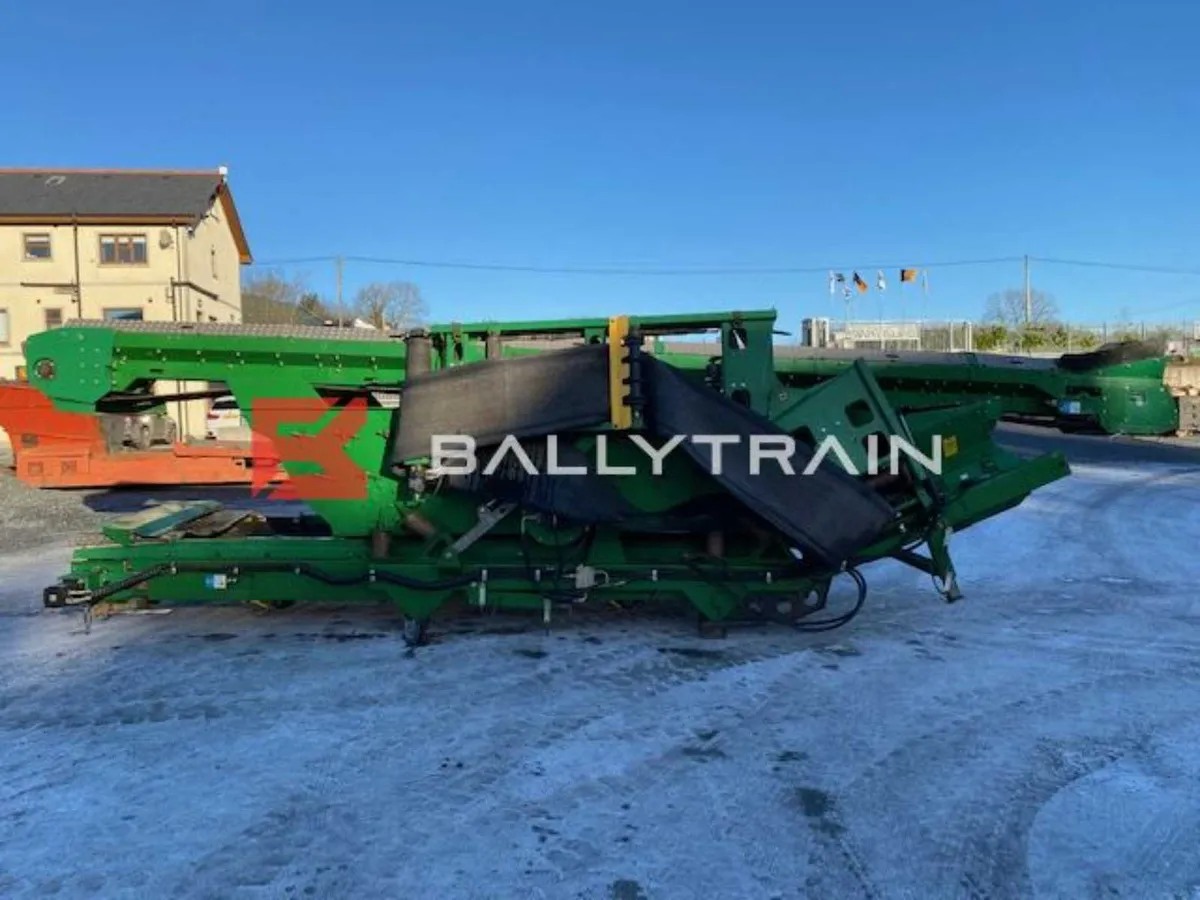

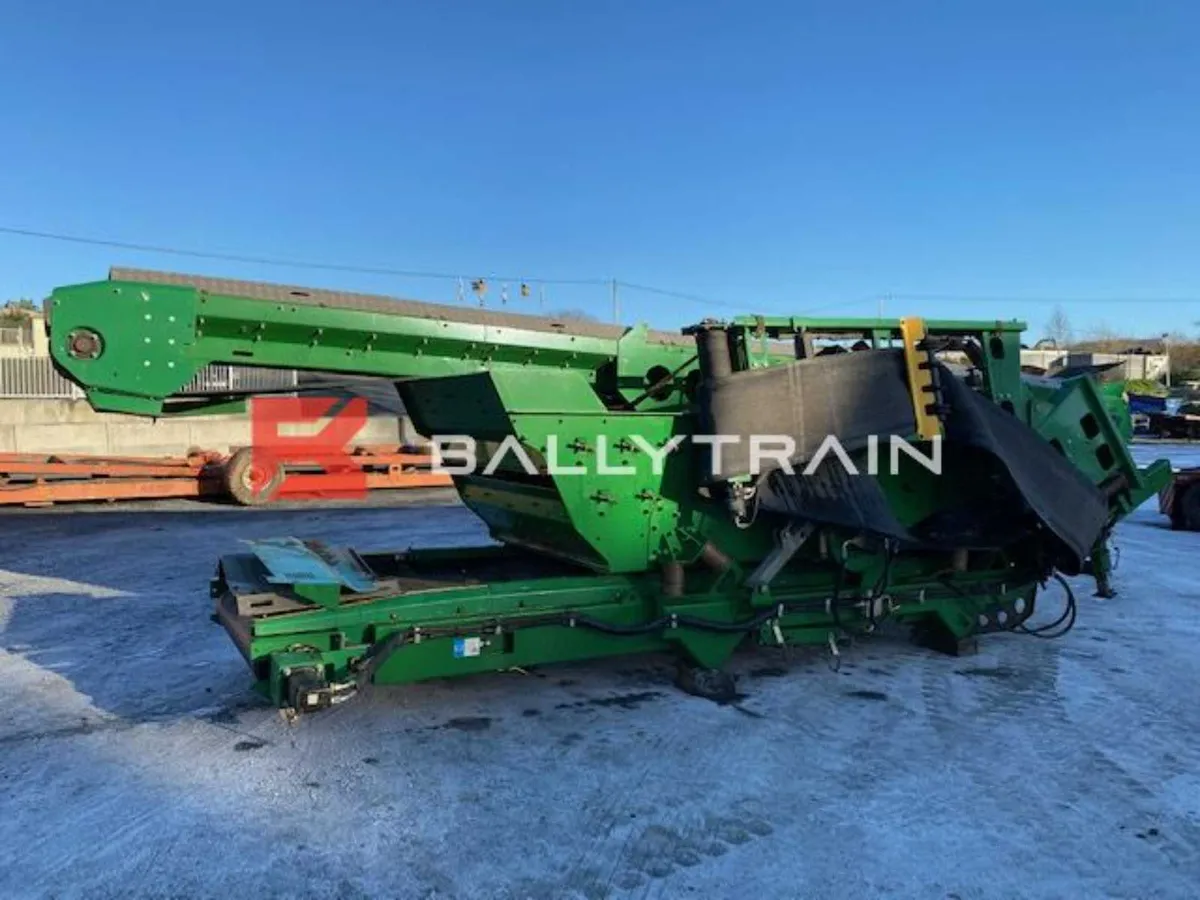

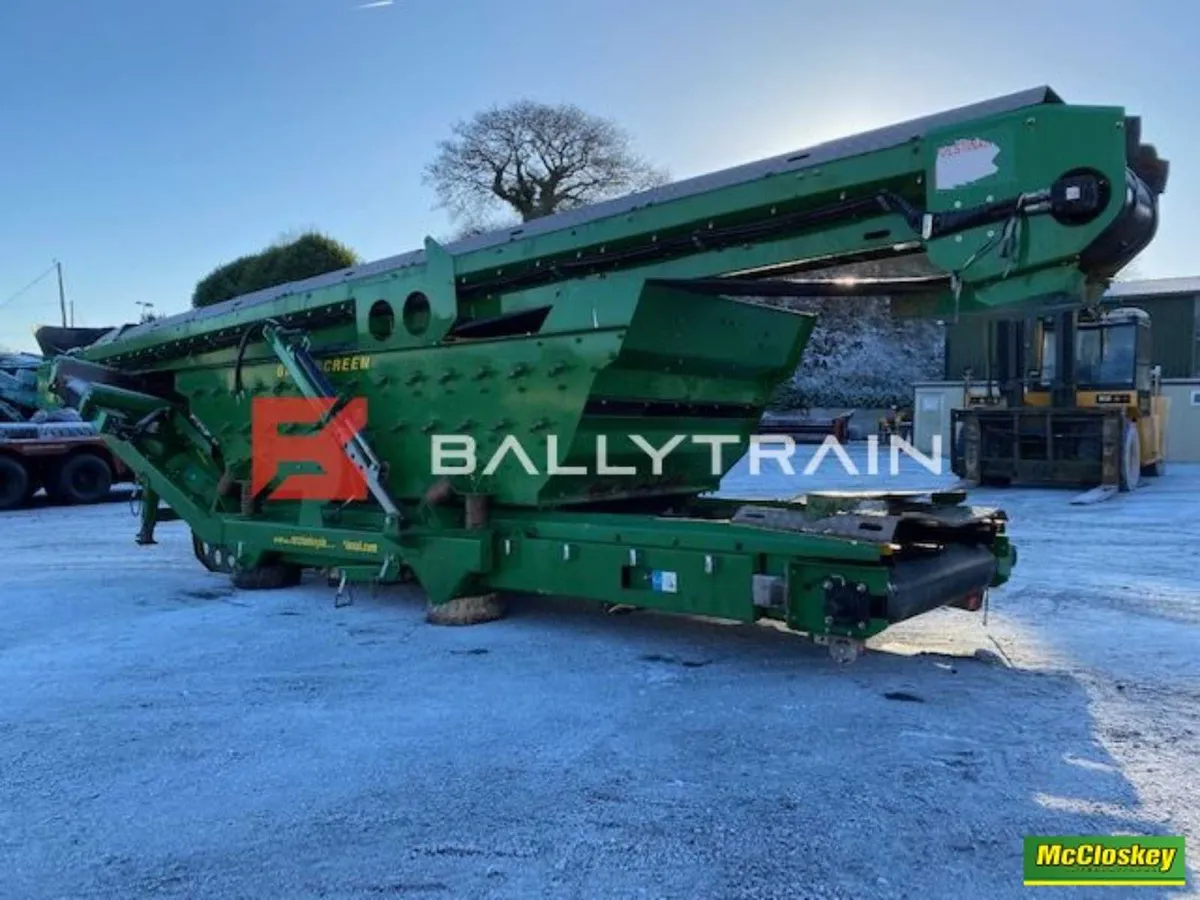

McCloskey Screening and Recirculating System for sale, Recirc, Full Screening and Recirculating System. This is a McCloskey Recirculating System but WILL ALSO FIT any other brand or machine, it can be made to suit a range of crushers etc. This Recirc comes complete with 14ft x 4ft (4.26m x 1.21m) Screenbox, Discharge Conveyor, Recirc Conveyor, Transfer Conveyor and Side Conveyor. 14ft x 4ft 2 deck vibrating static screenbox which will produce 3 x grades of material in one pass, 80mm mesh currently fitted on top deck and 40mm mesh on bottom deck. Different sizes of mesh can be obtained and installed at extra cost. 3 way split, closed circuit recirc. Under the screenbox is a 1500 wide discharge belt which has steel dust cover fitted, Also has support legs. The transfer conveyor feeding onto recirc conveyor is 600mm wide and side conveyor is 600mm wide. Side conveyor is Hydraulic folding so it can fold along side the screenbox for transport etc. The Recirc conveyor is 36ft / 11m Long x 660mm wide chevron belt, this conveyor also has steel dust cover fitted. All hydraulic drive with Danfoss and Hydreco Motors. Recirculating Conveyor. For the images we have stacked the recirc conveyor on top of the screenbox. McCloskey Screening and Recirculating System (Closed Circuit Recirc) This full recirc is like new and has done very little work as you can see from images. It can be used on a range of different application e.g Install on Jaw Crusher, Cone Crusher, Impact crusher or can be used in static plant. The applications to use this system on is endless. Comes as per images below nothing more and nothing less. We have 2 complete McCloskey Recirculating systems in stock currently. We believe this was designed for The McCloskey C3R recirculating cone crusher, we have a spec of this cone available on file. McCloskey Screener in excellent condition and ready to go into work. You can purchase this recirc today. Static screenbox, Static Recirc, Can be used for screening Stones, Chippings, Pebbles, Aggregates, Sand, Soil etc Get a quote on shipping to your nearest port or site by contacting us today. This will be loaded onto truck or Container in this price. If you require more information please contact us. Please inquire for more details and Photos on this Recirc which is available immediately from stock. Check our full range of New Jaw Crushers, Screeners, Stackers, Conveyors and Magnets on roco9
