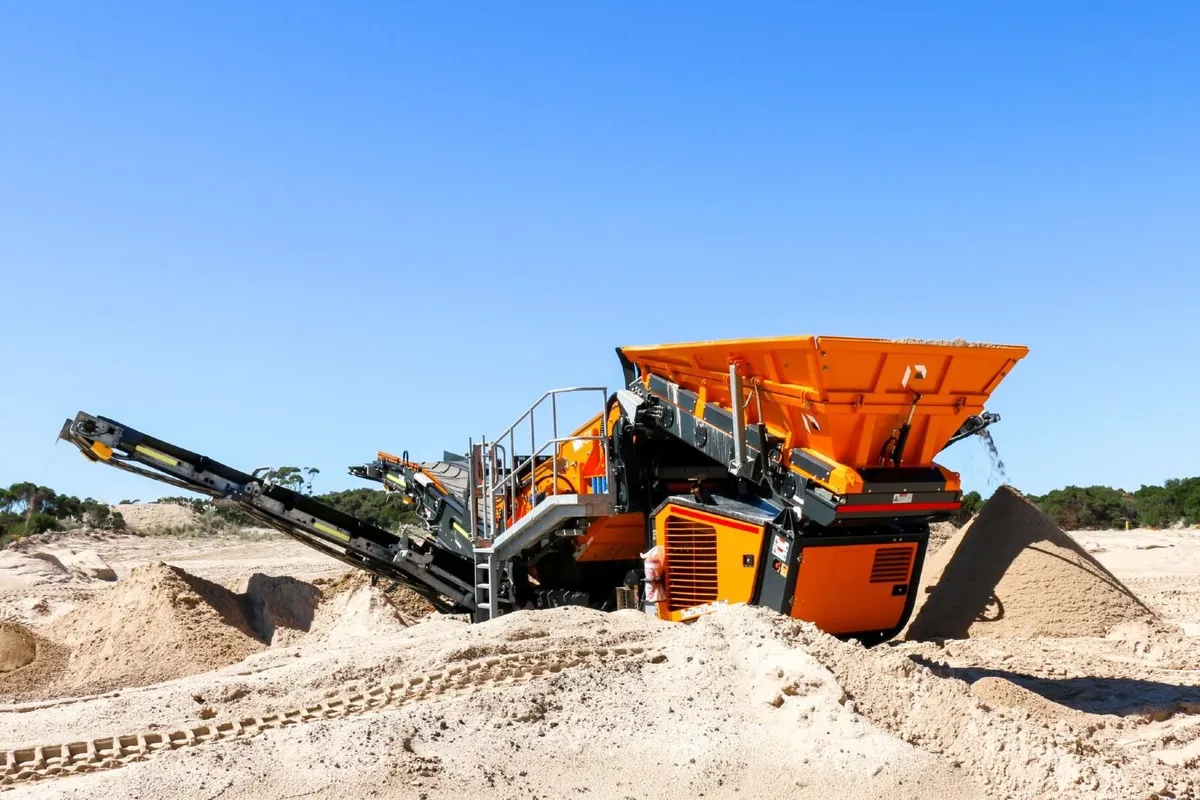

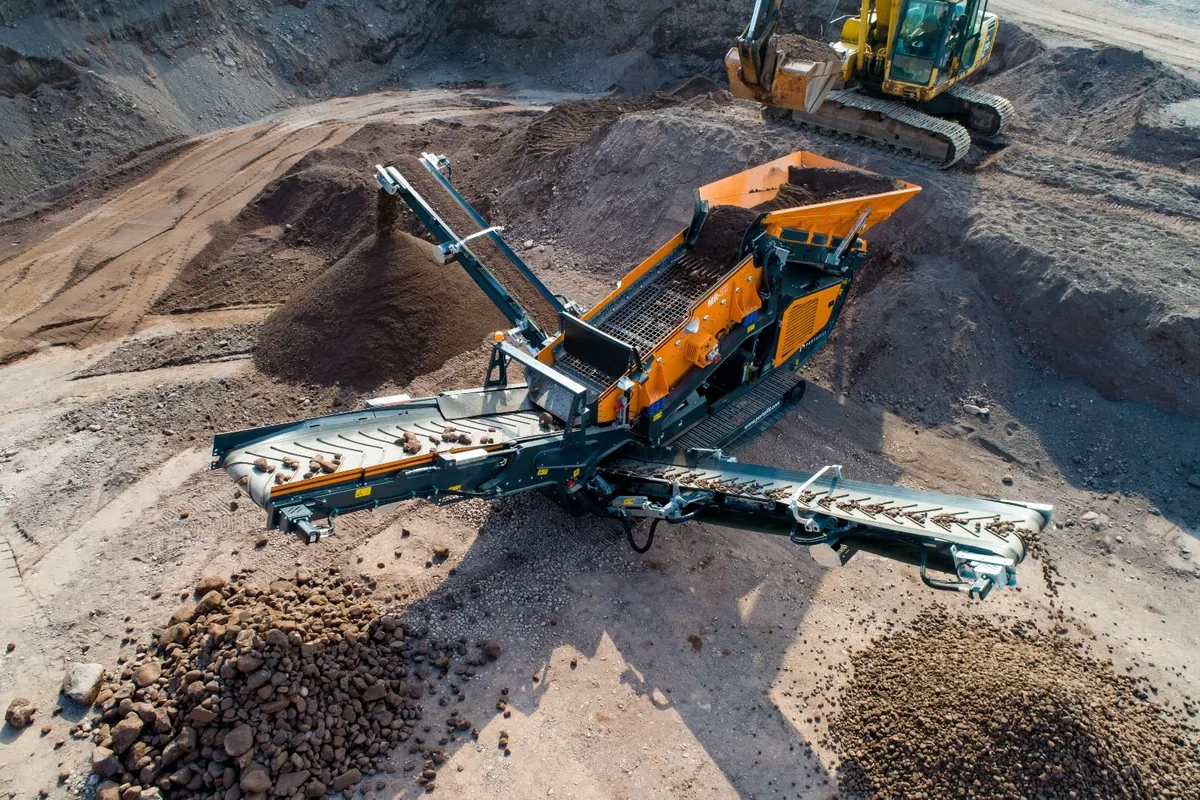

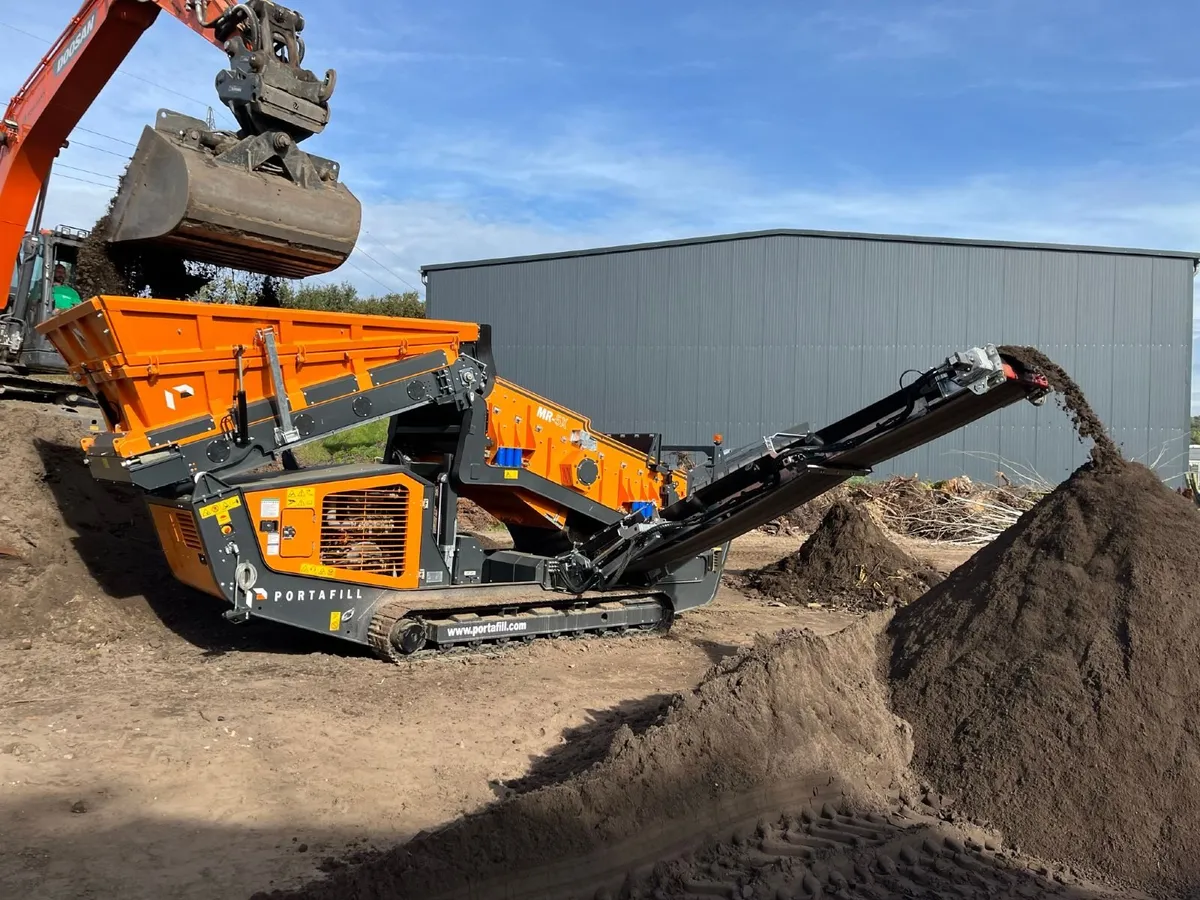

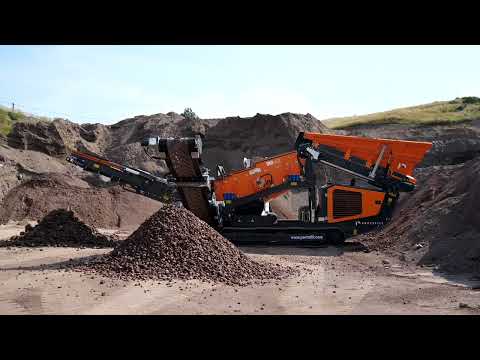

Portafill MR5X Scalper Scalping Screen

The Portafill MR5X as a unique feature from producing two products to three products in a few seconds. Putting the mid size fraction and oversize together. 2 IN 1 CONVEYOR In the standard configuration the screened material is split 3 ways. With the Oversize, Mid-size and Fines all stockpiled into three separate piles of material.TECHNICAL SPECIFICATION 2 IN 1 CONVEYOR In the standard configuration the screened material is split 3 ways. With the Oversize, Mid-size and Fines all stockpiled into three separate piles of material. However with 5 seconds and without the need to de-assemble any part of the machine, the oversize conveyor can be retracted so that this conveyor captures both the midsize and oversize product. The combined product is then stockpiled out the front oversize conveyor. POWER Engine Engine Engine Fuel Tank Capacity Hydraulic Tank Capacity Deutz D2011 L04i (EPA Tier 3) 36kw (49HP) Deutz TCD2.2 L3 (EU Stage V, EPA Tier 4) 55kw (74HP) Deutz TD2.9 L4 (EU Stage V, EPA Tier 4) 55kw (74HP) 100L 300L TECHNICAL SPECIFICATION SCREEN BOX Screen Box Type Overall Screen Box Size Maximum Feed Size Bolted, 2 Deck, 2 Bearing, High Speed, High Vibration Screen 2900mm (9’6”) x 1200mm (4’) 400mm (depending on material) Portafill,powerscreen, finlay, terex finlay, scalping screen, screener, grizzly, tesab, sanvik, edge, annaconda, doppstadt, kentek, ecotec, recycling, mcloskey,roco, top soil, topsoil screener, stockpiler, stacker
