SCREENER

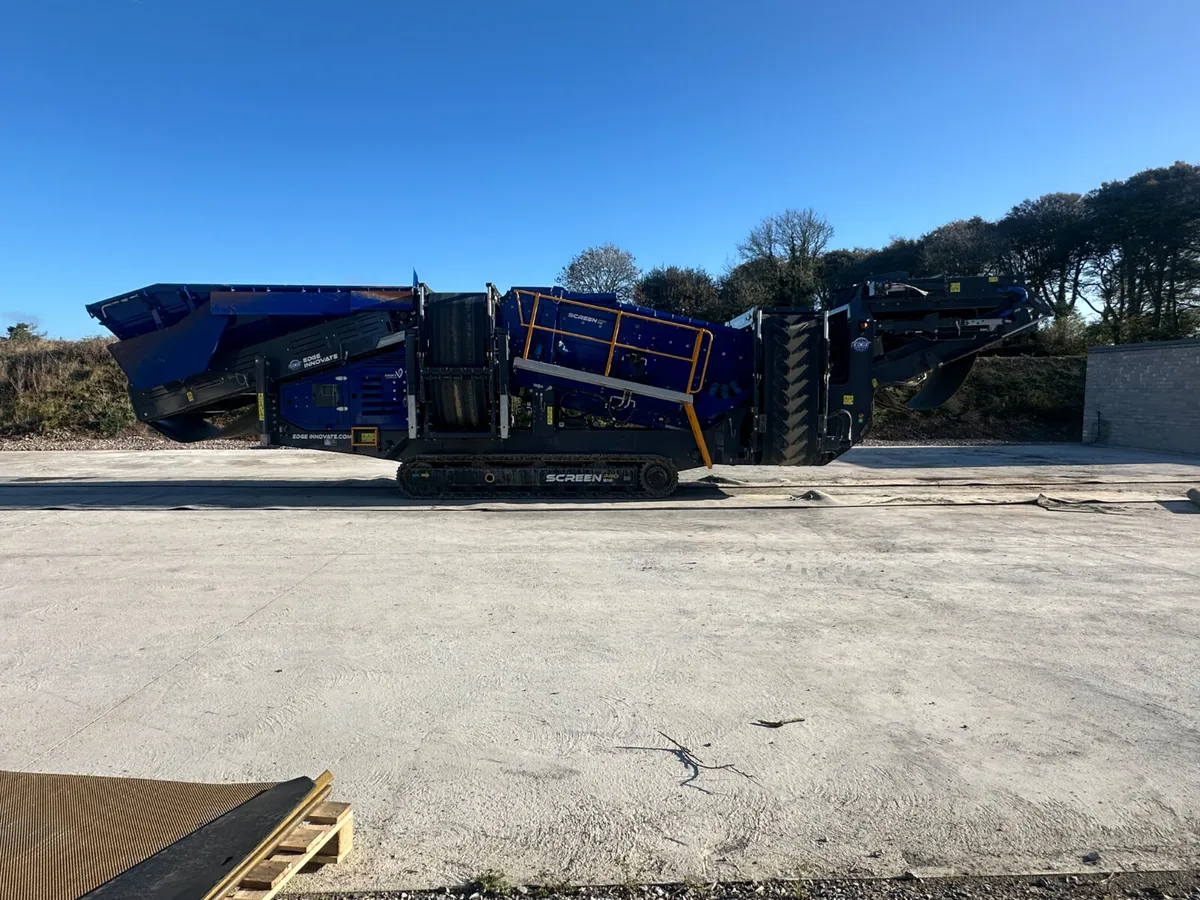

EDGE SCREENPRO S16 SCALPING SCREEN YEAR 2025 OPERATIONAL DIMENSIONS Length: Width: Height: TRANSPORT DIMENSIONS 16495mm (54’ 1”) 13337mm (43’ 9”) 4879mm (16’) Length: Width: Height: Gross Weight: HOPPER DATA 16275mm (53’ 5”) 3000mm (9’ 10”) 3400mm (11’ 2”) Approx 30000kg (33.6UST) Hopper Capacity: Hopper Capacity: Minimum Feed In Height: Maximum Feed in Height: FEED CONVEYOR DATA 10m³ (13yd³) without extensions 13m³ (17yd³) with extensions 3046mm (10’) 3548mm (11’ 8”) Belt Width: Belt Type: Belt Speed: SCREEN BOX DATA 1200mm (48”) Apron Feeder/TOUGHFLEX 630/2 9+3 Variable Top Deck Top Deck Screen Size: Top Deck Screen Area: Scalping Screen Bottom Deck: Bottom Deck Screen Size: Bottom Deck Screen Area: Variable Screen Angles: COLLECTION CONVEYOR DATA Various side tension screen media 4.9m x 1.5m (16’x5’) 7.35m² (8.8yrd³) Fixed End Tension Screen Media 4.5m X 1.55m (14’9”X5’) 6.97m² (8.3yd²) 14-20° working adjustable Belt Width: Conveyor Length: Belt Type: Belt Speed: OPTIONS 1200mm (48”) 4300mm (14’1”) Plain 400/3 4+2 Variable MID SIZE CONVEYOR DATA Belt Width: Conveyor Length: Belt Type: Max. Discharge Height: Min Discharge Height: Operating Angle: FINES CONVEYOR DATA 900mm (36”) 7900mm (25’10”) Chevron 400/3 4+2 3950mm (13’) @ 28° 2570mm (8’5”) @ 14° 14°-28° Belt Width: Conveyor Length: Belt Type: Max. Discharge Height: Min Discharge Height: Operating Angle: OVER-SIZE CONVEYOR DATA 900mm (36”) 7900mm (25’10”) Plain 400/3 4+2 4269mm (14’) @ 28° 3483mm (11’ 5”) @ 20° 20°-28° Belt Width: Conveyor Length: Belt Type: Max. Discharge Height: Min. Discharge Height: Operating Angle: POWERUNIT DATA 1400mm (55”) 6500mm (21’3”) Chevron 500/3 4+2 4129mm (13’ 7”) @ 24° 2855mm (9’4”) @ 12° 12°-24° Engine Type: Electric Hybrid: Hydraulic Tank Capacity: Fuel Tank Capacity: CHASSIS DATA CAT 3.6 100kW (134hp) T4F/S5 Aux Diesel Engine 400 Litres (106 USG) 375 Litres (99USG)
