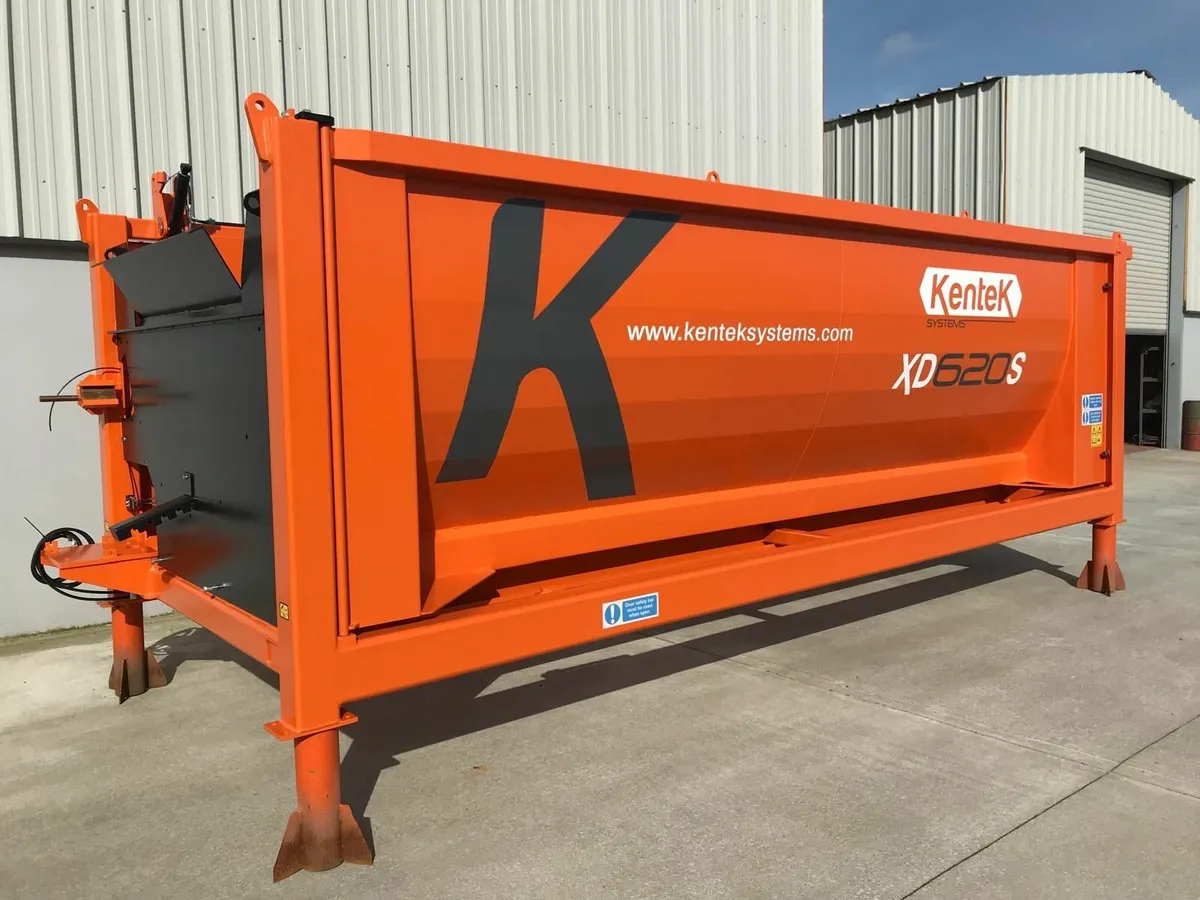

Trommel Screen XD620S

XD620 S Trommel Screen Opening door on Left hand side for quick change of drum Trommel Screen: Motor Nord 22KW – Direct Drive Gearbox Nord 1390 NM Torque. Support Wheels 8 x Heavy Duty Polyurethane Retention & Centre Wheels 2 x Heavy Duty Polyurethane Trommel diameter: 2000 mm Trommel length: 5430 mm Trommel thickness: 6mm-12mm Trommel mesh: on Request Trommel bearing: 4 radial tandem rollers (pu coated), 2 axial rollers Speed: Variable (only with optional machine control panel) Hebncyljwzvm Nj Etjnp Drum: Smooth outside with helix scroll on inside Features: - Easy access greasing manifolds - One door on trommel for changing drum and maintenance - Hydraulic adjust cleaning brush - Cleaning tines on brush - Individual Replaceable heavy-duty brush segments. - Heavy Duty FYH Bearings. Finish & Structure: - Steel grade S275 S355 - 2 pack epoxy primer, polyurethane topcoat. Electrical Specification: - Control Panel mounted on machine with frequency controls - Variable speed screen drum - Invertek Variable speed drive - Emergency stop circuit Finish & Structure: - Steel grade S275 S355 - 2 pack epoxy primer, polyurethane topcoat. Kentek Sytems,portafill, powerscreen, komptech, Terex ecotec, mccloskey, finlay, edge, ezystak, metberg, pronar, doppstadt, trommel screen, trommel screener
