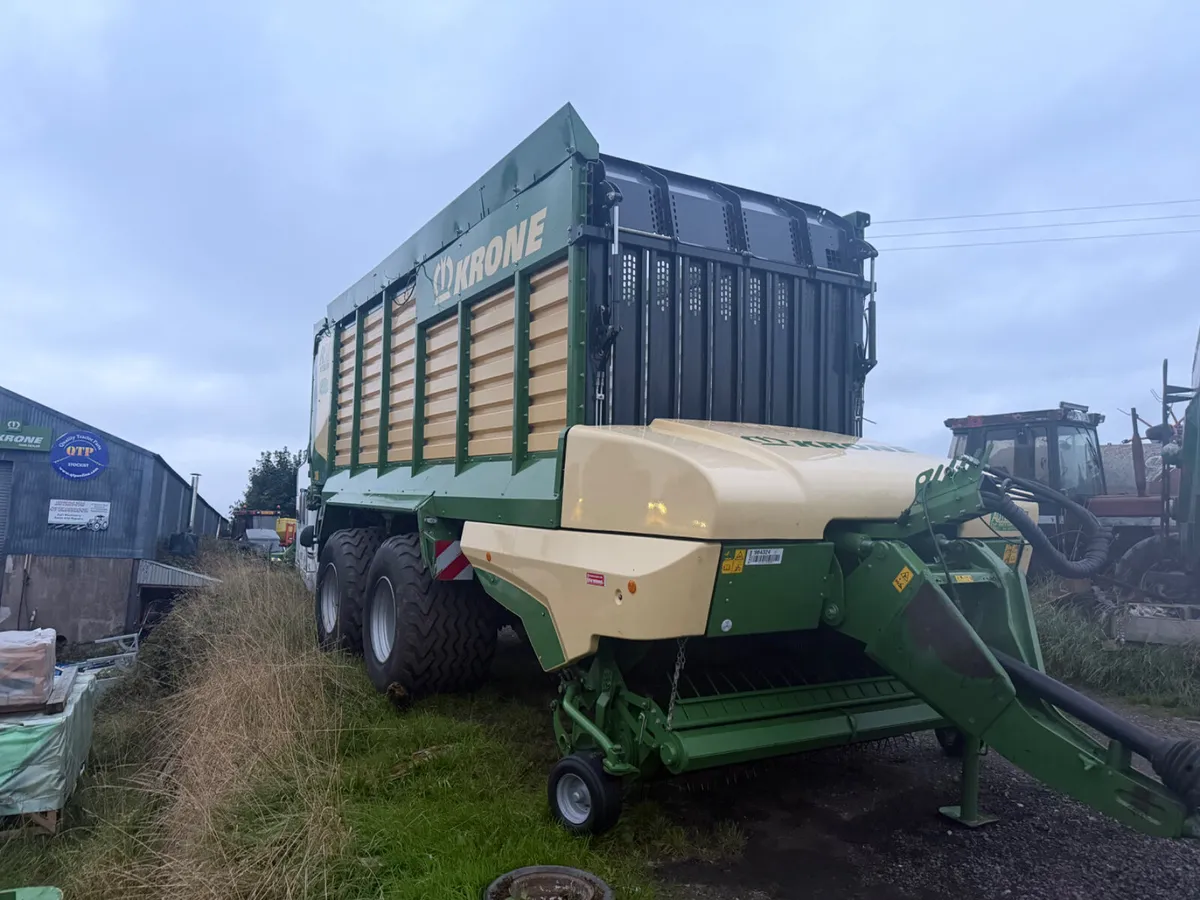

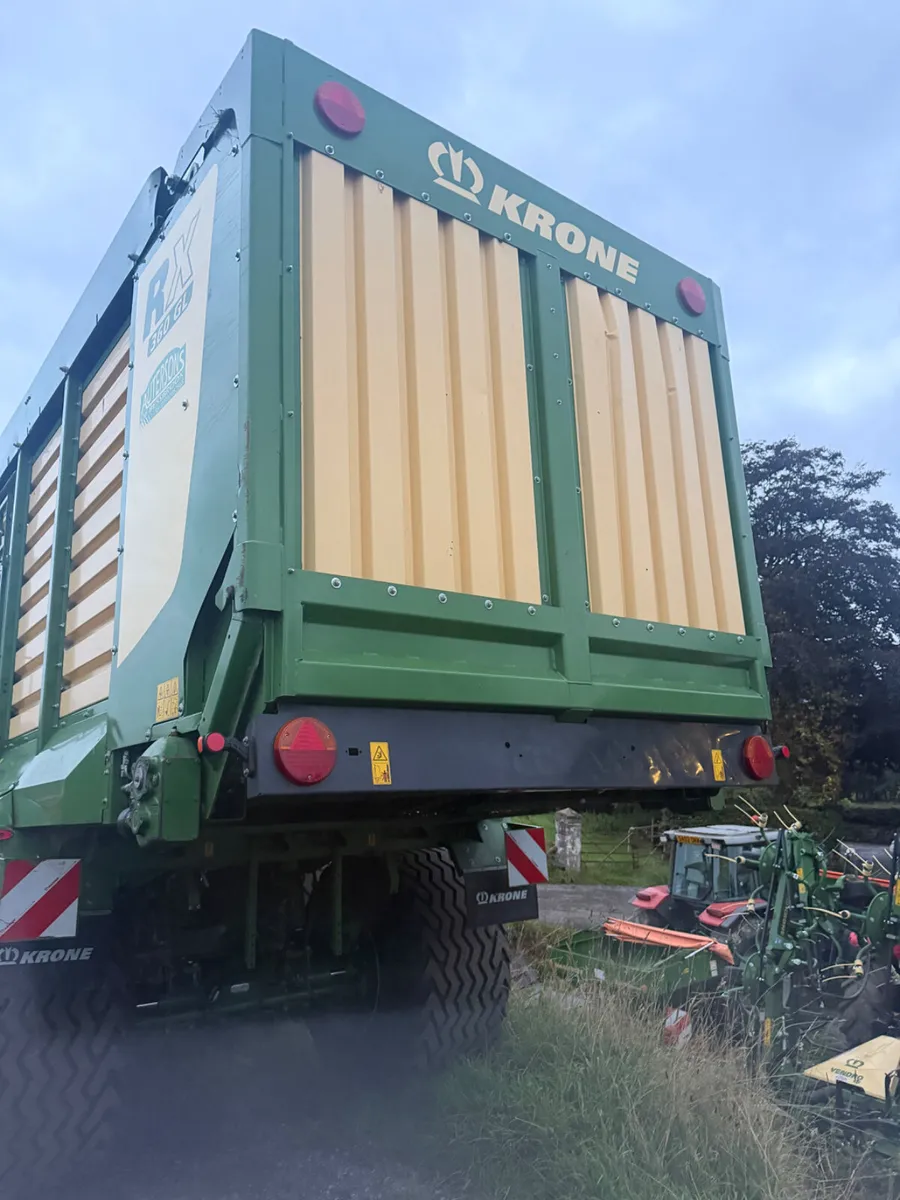

Krone silage wagon

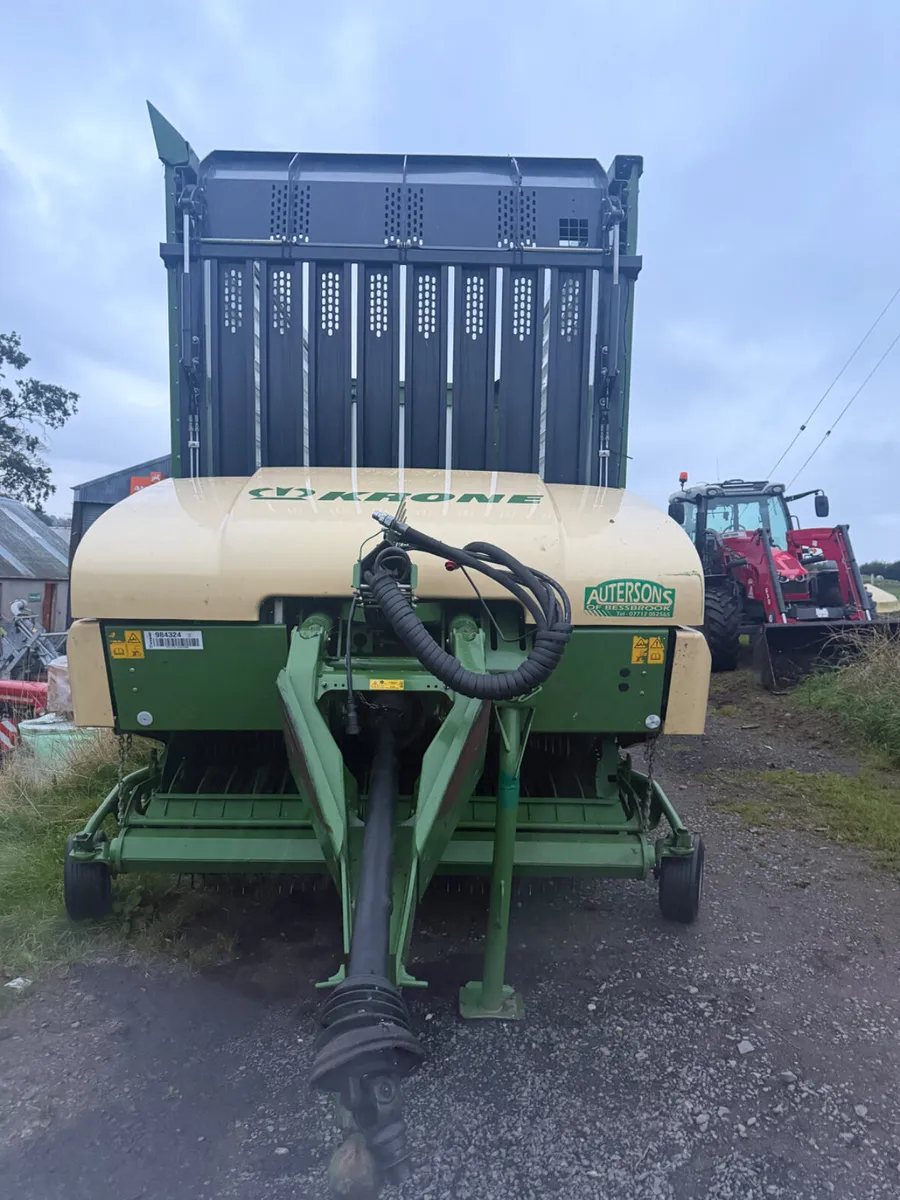

• The Cutting System: A standard swing-out cutterbar fitted with 46 knives, delivering a precision theoretical chop length of 37 mm. • Intake Mechanism: The standard 2.015-meter wide camless EasyFlow pick-up featuring the W-aligned tine layout. • Running Gear: Built on a robust tandem axle chassis rated for a 20-tonne gross vehicle weight, complete with a standard steered rear axle for tight headland maneuvering • Vertical Structure: The front bulkhead remains in a permanent, fixed vertical position. It does not pivot forward to compress or expand the payload space like its larger counterparts. • Fixed Loading Volume: It provides a static, reliable 36 m³ loading capacity (DIN 11741 valuation). • Hydraulic Headboard Hatch (Top Flap): To compensate for the rigid front wall when working with a forage harvester, the RX 360 features a hydraulic top hatch/flap on the headboard. This hatch can fold down or adjust to provide a wider opening, ensuring a clean fill with zero crop loss when a tractor is loading from the front. • Sloping Steel Floor: A double chain-and-slat floor that slopes downward at the front (350 mm slope) to reduce power input and protect crop structure. • Articulated Drawbar: Features standard hydraulic drawbar suspension to absorb shock loads, improve operator comfort, and raise the chassis for extra ground clearance on the clamp. Rear Steering Integration: The 800/45 R26.5 setup works seamlessly with the RX 360 GL's steered rear axle • 37 mm Theoretical Chop Length: When all 46 knives are engaged, the distance between the blades delivers a precise, short-cut length of 37 mm. This provides the tight compaction density needed in the clamp to reduce oxygen and improve silage fermentation. • 4-Stage Blade Group Switching: You do not have to run all 46 knives at once. The standard Krone selector system allows you to mechanically shift between four distinct knife groups from the side of the machine: • 0 knives (for straight transport or zero-grazing) • 23 knives (Left side bank - for a longer ~74 mm chop) • 23 knives (Right side bank - alternative set) • 46 knives (Full engagement for the shortest 37 mm chop)
