Aberlink CMM

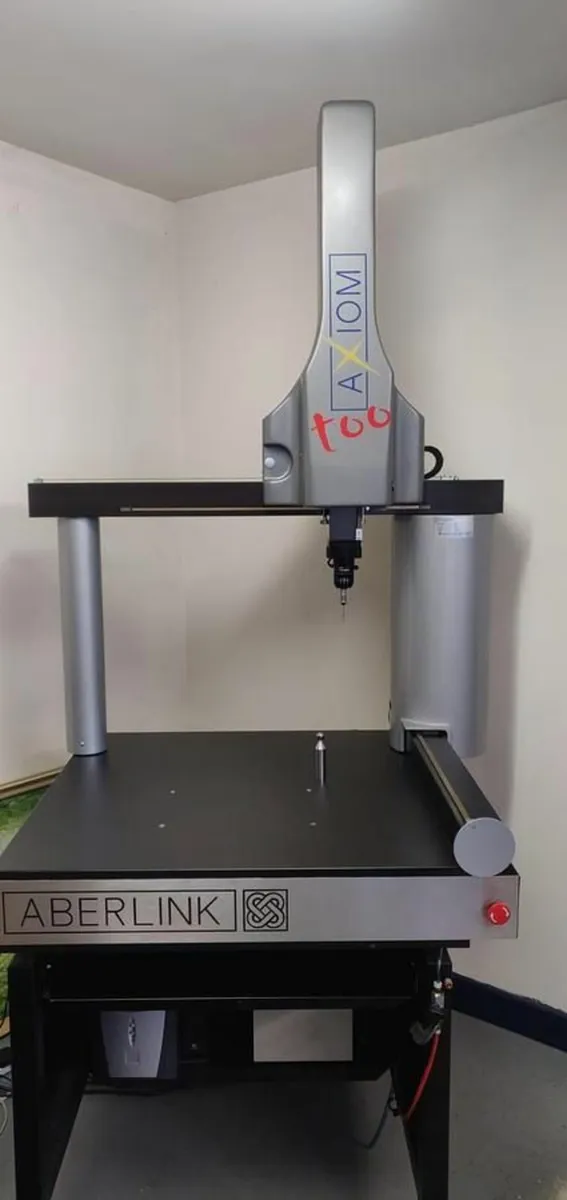

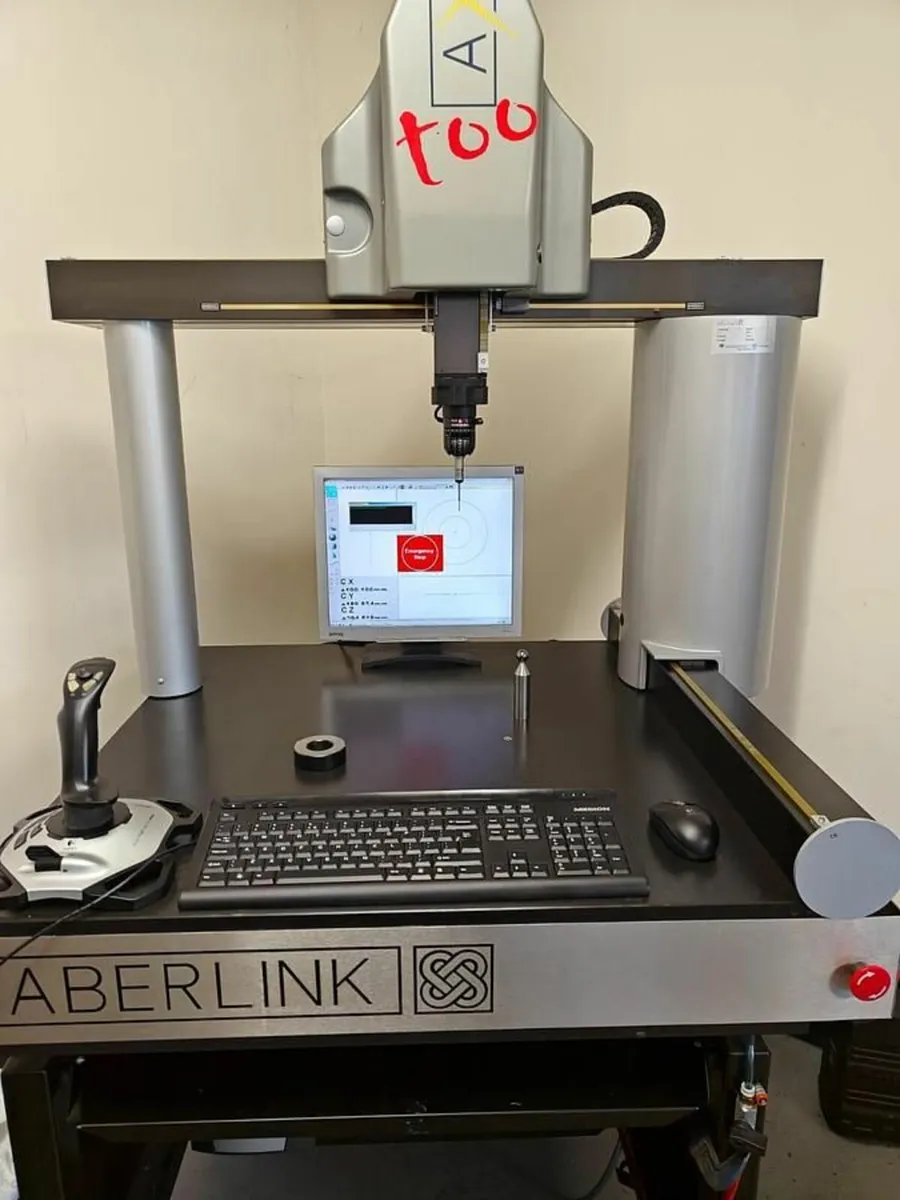

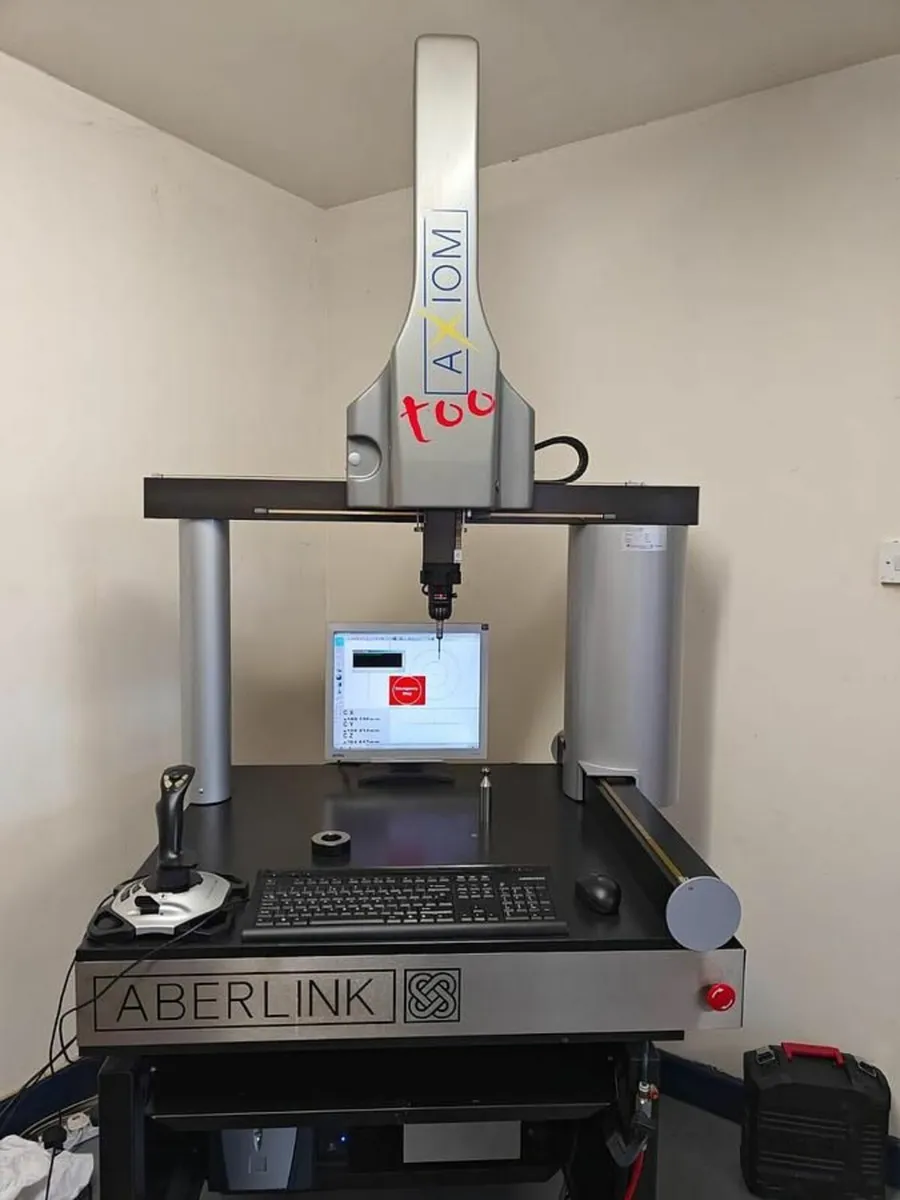

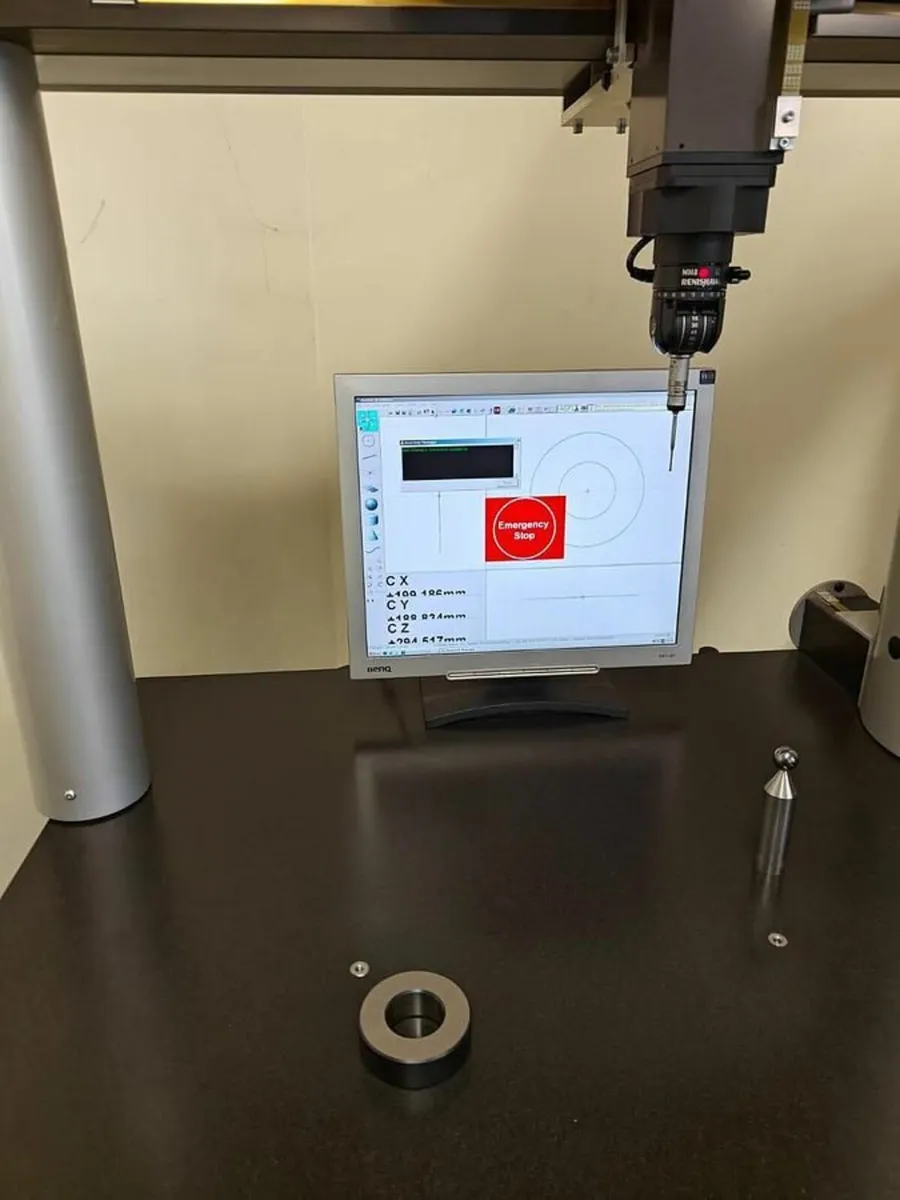

Aberlink Axiom too 600 CNC CMM Machine Type: CNC Co-Ordinate Measuring Machine Version: Axiom too 600 Year: 2007 Condition: Like New Includes Upgrade to full CNC Auto Temperature Compensation SMC Refrigeration Air Dryer Aberlink Software PC & Monitor Description When the original Axiom CMM was released in 1997 it revolutionised CMM design utilising extremely innovative CMM technology. The Axiom was hugely successful but now Aberlink have taken all the best features from the original model and improved upon them. The Axiom too offers a larger measurement volume and higher accuracy than its predecessor, incorporating the very latest in materials technology. This Axiom too is the 600 size and is full the CNC version. Technical Specifications Measuring Volume: 640 x 600 x 500mm Accuracy: B89 0.008/300mm (VDI (U3) 0.0035 + L/250mm) Measuring System: Renishaw readheads and tape scale Resolution: 0.0005mm Probe System: Renishaw Max Velocity Vector: 500mm/sec Max Acceleration Vector: 1000mm/sec2 Bearings: Air Bearings on all axes Z Axis: Pneumatically counterbalanced Max Balance Weight: 1kg Air Consumption: 23 I/min (0.8 cfm) @ 4 bar Required Air Pressure: 4 bar (60psi) Software: Full Graphical Interface designed for Windows Dimensions: 1130 x 920 x 2320mm Price: €7,250.00 + Vat More information and video available at www.usedmachinetoolsireland.com
