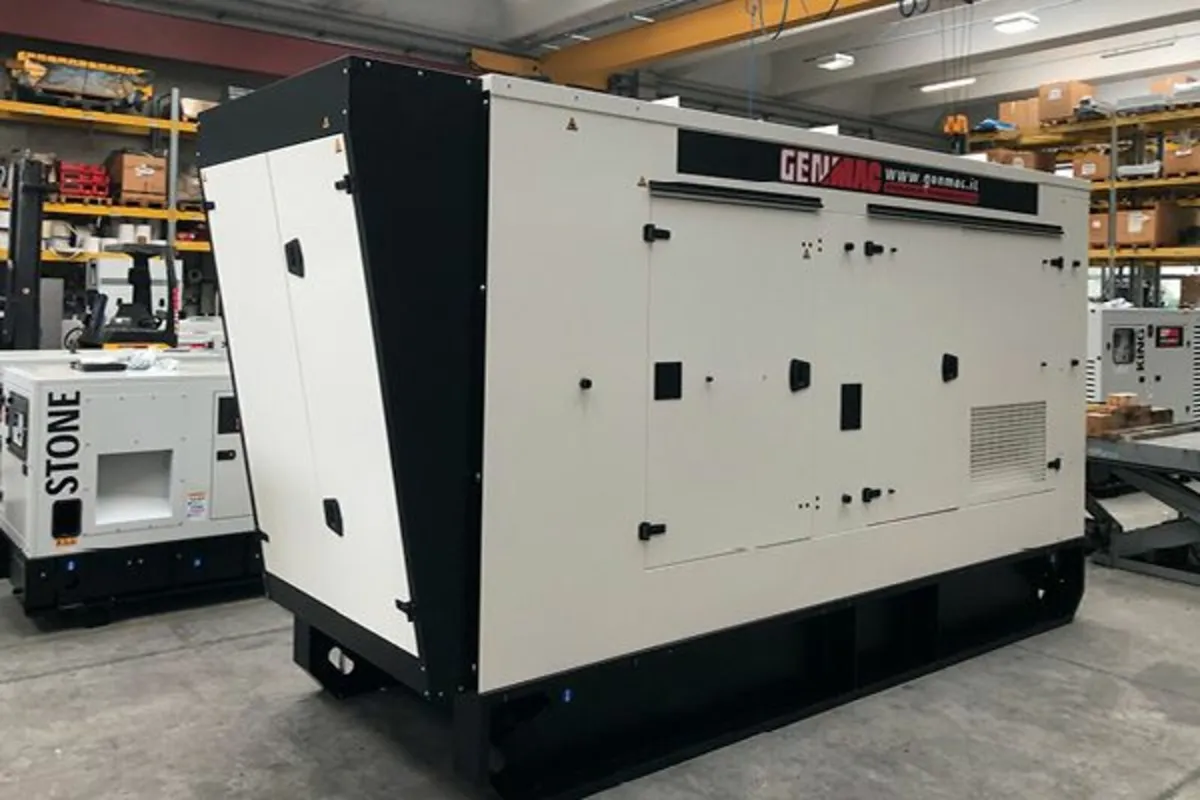

APOLLO G550SS 3Ph Generator

General Specification Silent generator with following specifications: Frame: Heavy duty fabricated welded base plate with high quality steel UNI S235 JR Heavy duty, bell type, rubber anti-vibration mountings Fuel tank with drain plug and retention basin Feet and four lifting holes on the base Canopy: Large doors for easy access for service and maintenance Electro-galvanized sheet DC01+ZE25/25 (EN 10152: 2009) High precision sheet cutting with nitrogen laser technology to avoid oxidation Sandblasting and cataphoresis treatment of intake / exhaust grids Weatherproof sealed joints Lockable handles in each door Grey RAL 7035 “orange peel” specific powder coat paint for outdoor usage Rain cap on exhaust outlet Coolant refilling specific hatch Fuel filler outside enclosure Central lifting hook Ecological Sound foam: 100% Recyclable, 35mm thickness, fire-proof self- extinguishing, class1, fire-reaction compliant washable, mechanically fixed to the frame Muffler: Supersilent, Residential type integrated in the canopy Exhaust manifold insulation jacket With high heat paint coating Control Panel: Self-standing control panel tower made with metal structure and components to grant IP65 protection, easily removable for maintenance Easy access to control panel through a canopy’s door, equipped with lexan window Control panel is divided in two independent and insulated boxes separating Controls (Controller and numbered terminal board) from Power connection (circuit breaker and cable inlet) External dedicated area to make easier the electrical connection to the load Power connection between circuit breaker and alternator made with high resistance neoprene cables (H07RNF) and using cable glands for waterproof connections All units and components are prototype tested, factory build and production tested. A specific control procedure during the several stages of production ensures long life and reliability. Alternator general data PRP Continuous power kVA 550 PRP Continuous power kW 440 LTP Stand-by power kVA 605 LTP stand-by power kW 484 Power factor cos fiφ 0.8 Voltage VAC 400/230 Frecuency Hz 50 Ampere PRP/LTP 795 / 874 Speed RPM 1500Dimensions and noise level Length mm 4810 Width mm 1600 Height mm 2460 Net Weight kg 5000 Gross Weight kg - Sound pressure at 7 mt dBA -
