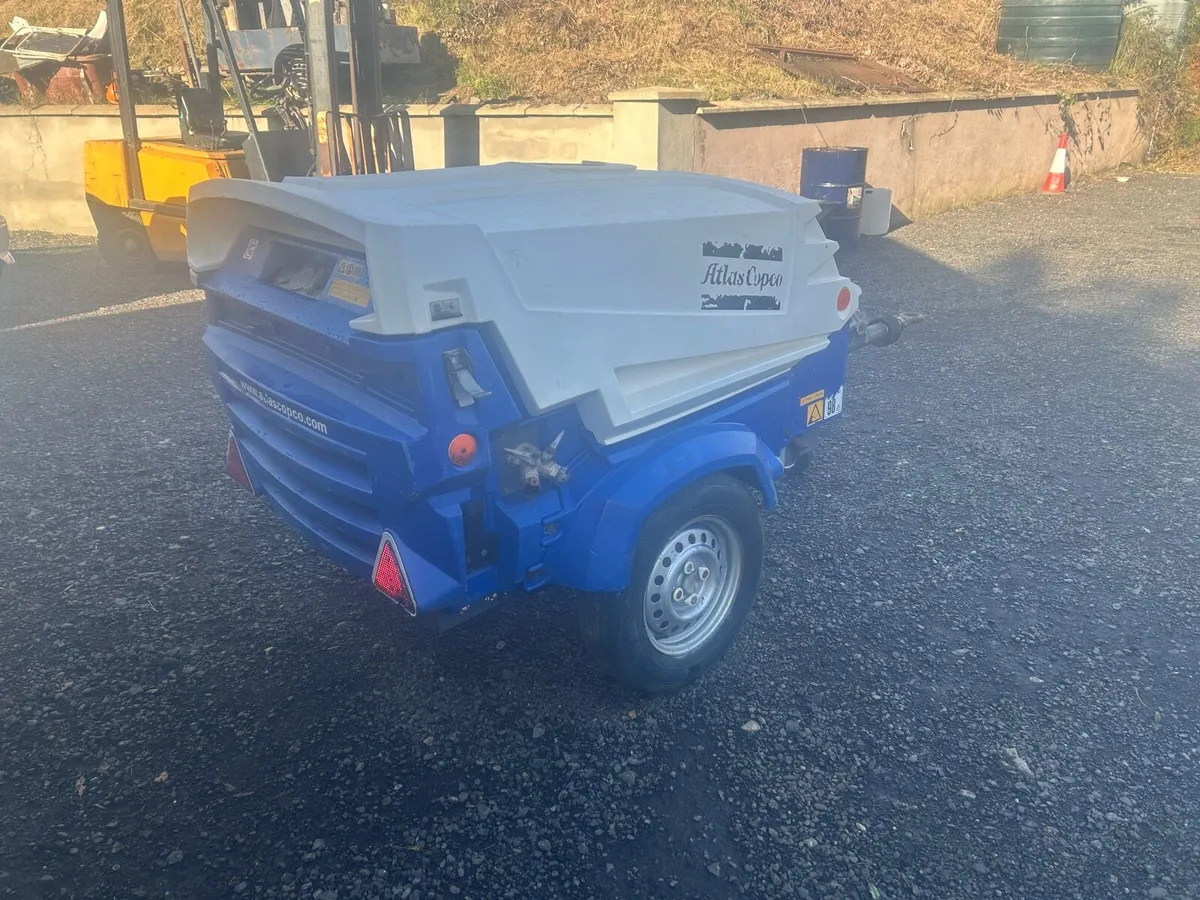

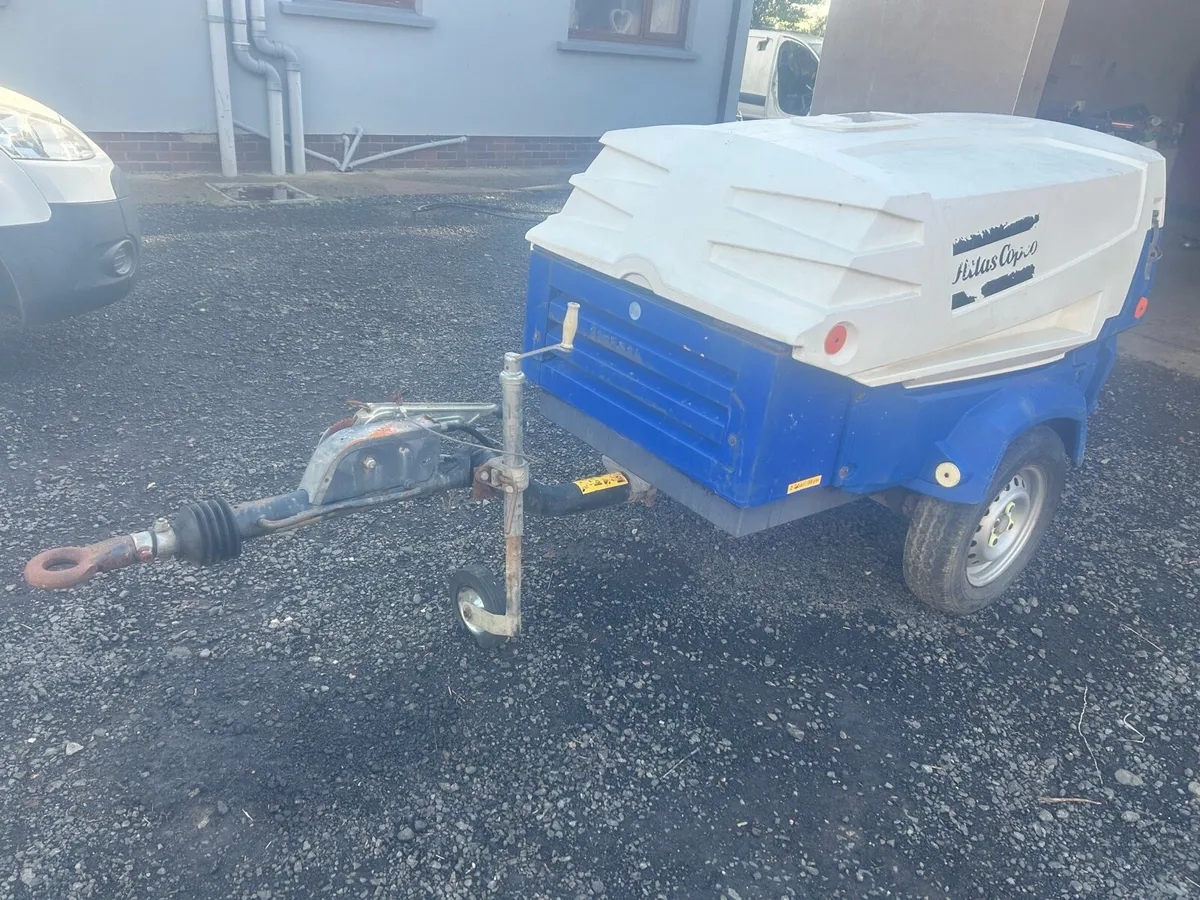

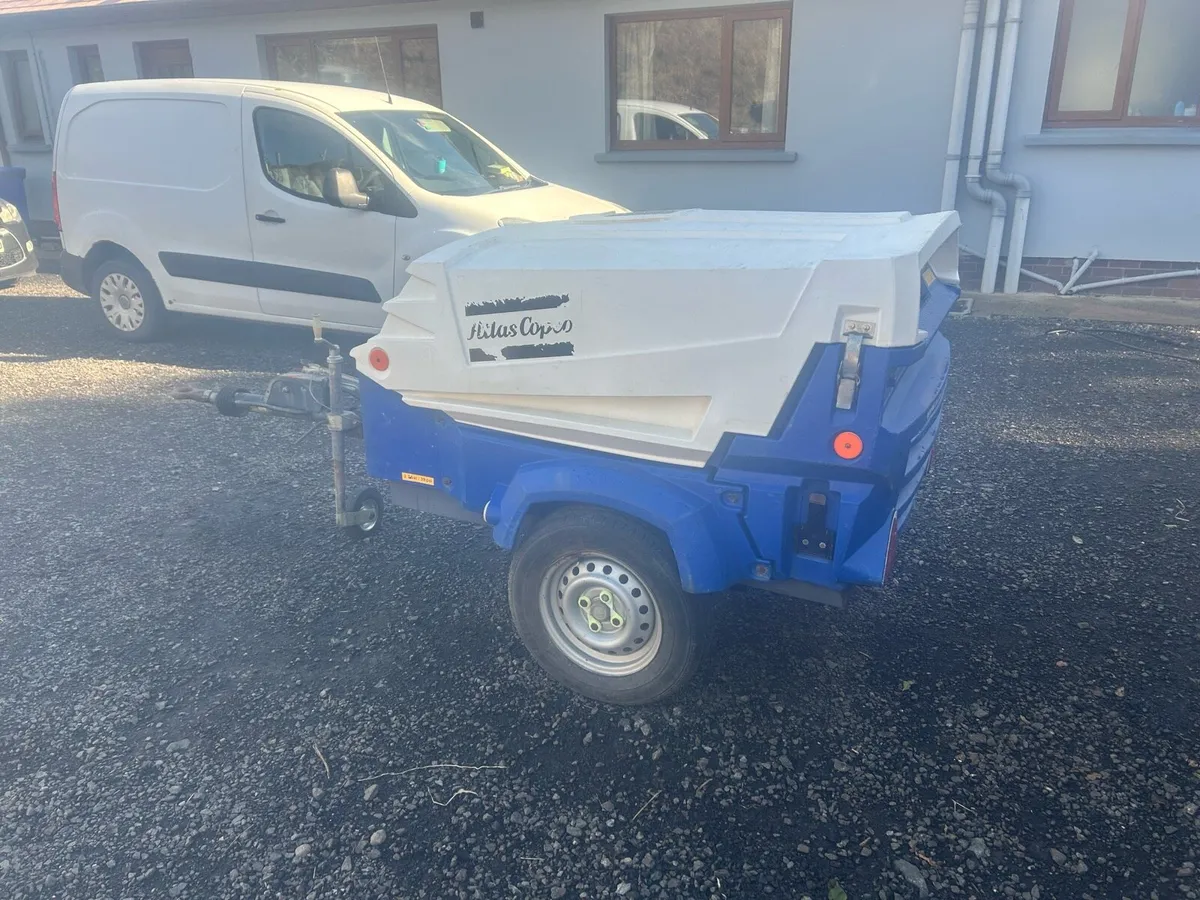

Atlas Copco XAS 47 KD Compressor 1174 Hours 90CFM

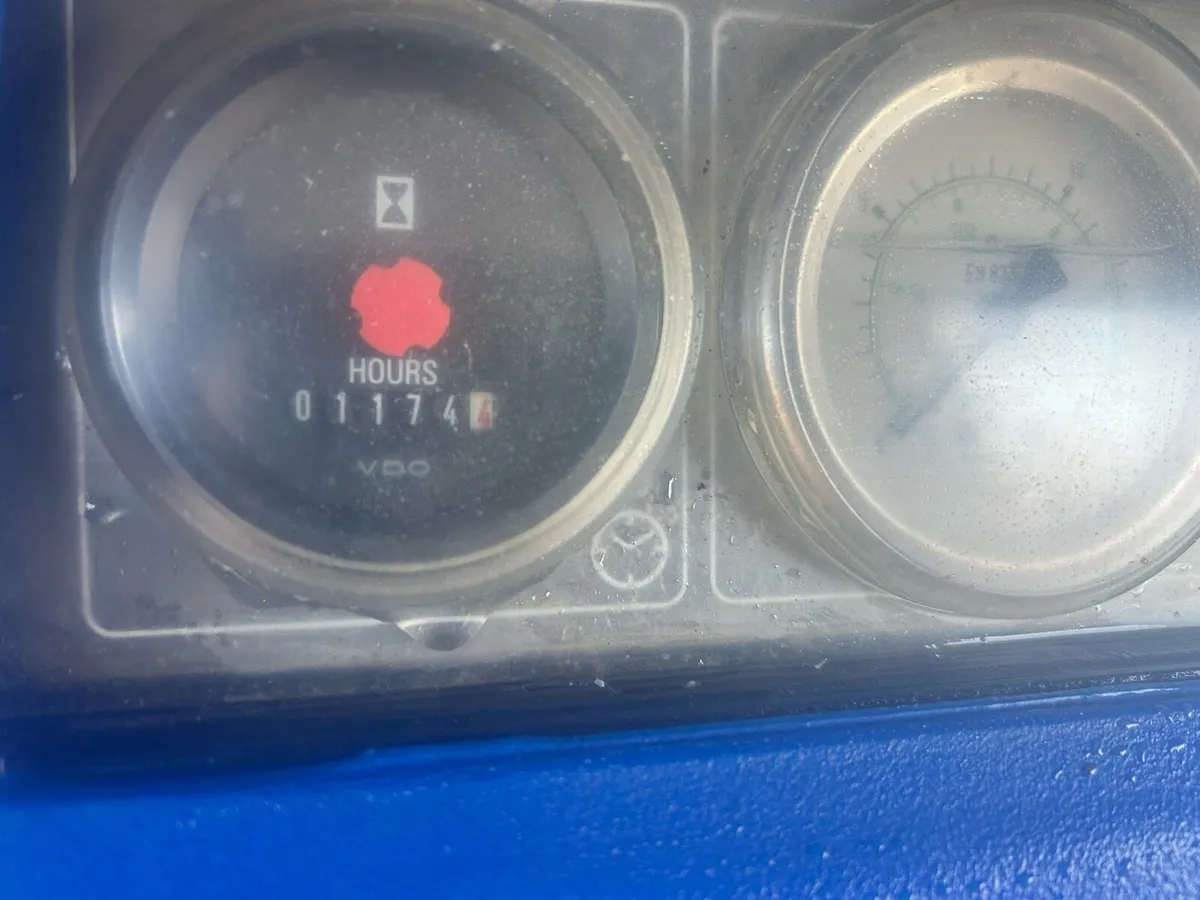

Main specifications * Portable diesel air compressor * Atlas Copco rotary-screw compressor system * Normal working pressure: 7 bar / approximately 100 psi * Free-air delivery: 2.5 m³/min * Air output: 42 litres per second / approximately 89 cfm * Kubota D1105 three-cylinder diesel engine * Engine output: 19.4 kW * Full-load engine speed: 3,000 rpm * Fuel-tank capacity: 32 litres * Maximum sound-power level: 98 dB(A) * Full-option dry weight: approximately 565 kg * Full-option operating weight: approximately 585 kg Standard design features * Strong, impact-resistant Atlas Copco HardHat canopy * Corrosion-resistant bodywork * Compact, single-axle design * Diesel-powered and fully portable * Easy-access service layout * Spin-on oil separator for easier maintenance * Controls and air outlets grouped together * Suitable for breakers, chipping hammers, jackhammers, grinders, nut runners, rammers and other pneumatic equipment * Designed for demanding construction and plant-hire work * Low towing weight—under 750 kg * Hour meter * Pressure gauge * Electric start * Emergency and warning indicators Atlas Copco describes the HardHat canopy as impact-resistant and designed to avoid the dents, cracking and corrosion commonly suffered by steel canopies. Dimensions * Compressor body: approximately 1,963 × 1,342 × 1,032 mm * With fixed towbar: approximately 2,603 × 1,342 × 1,280 mm * With adjustable towbar: approximately 2,800–3,038 × 1,342 × 1,280 mm
