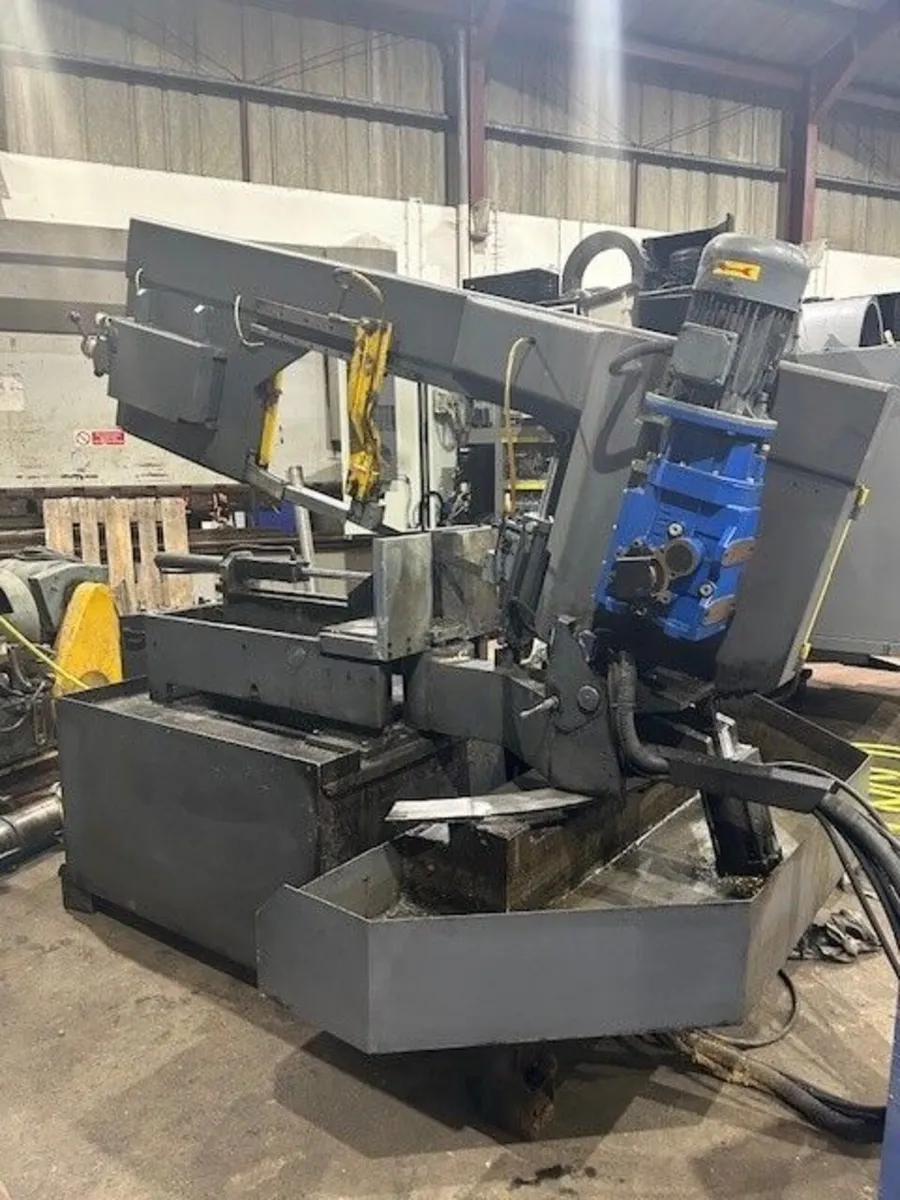

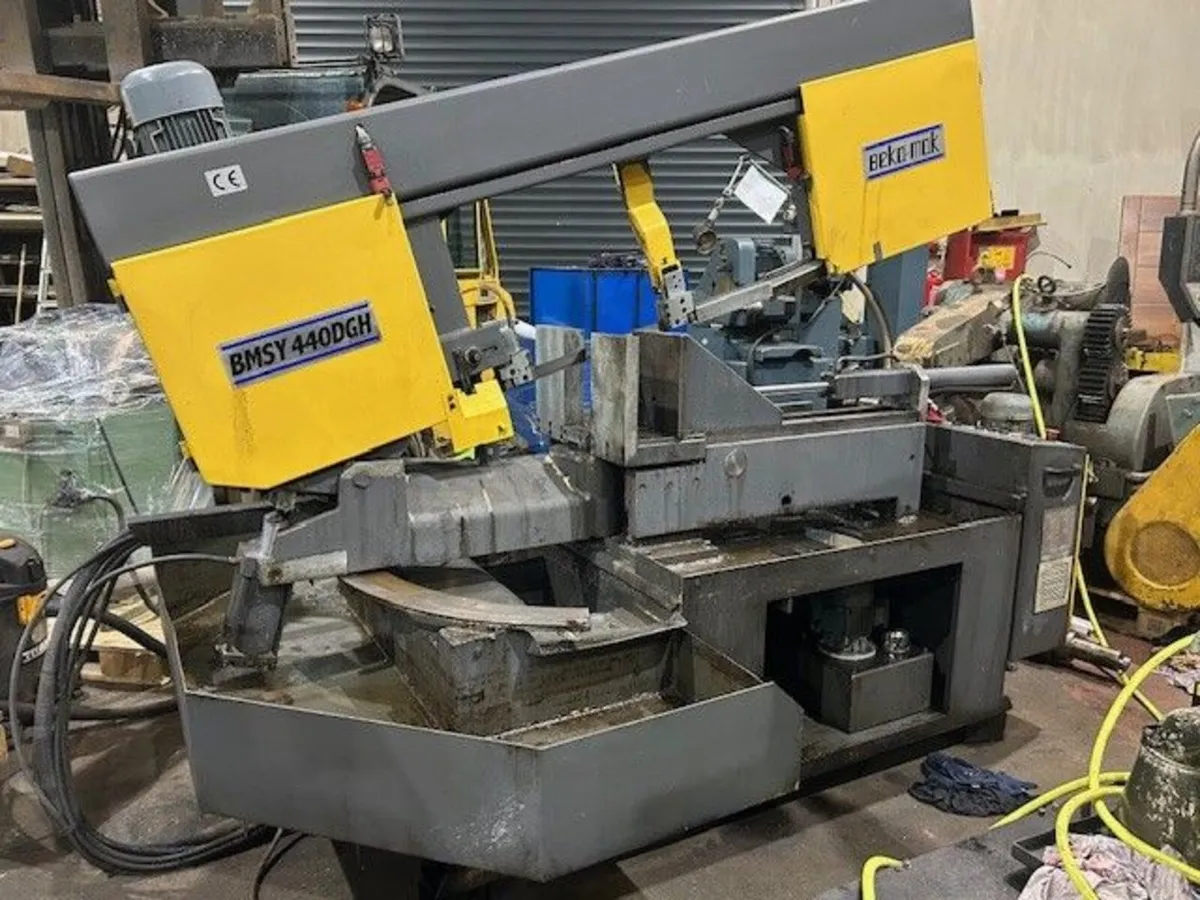

BEKA MAK DOUBLE SWIVEL BANDSAW

BEKA MAK BANDSAW MODEL BMSY 440 DGH DOUBLE SWIVEL SEMI AUTO HYD VICE / CLAMPING DIGITAL DISPLAY FOR ANGLE On the straight cuts its 610 x 440 mm This machine is a double swivel, capacity is as shown below . Cutting Capacity -60° 320 mm 285 x 440 mm 285 mm -45° 410 mm 410 x 440 mm 410 mm -30° 440 mm 500 x 440 mm 440 mm +60° 320 mm 250 x 440 mm 250 mm +45° 410 mm 410 x 440 mm 410 mm +30° 440 mm 500 x 440 mm 440 mm 0° 440 mm 610 x 440 mm 440 mm Main Drive Motor 3 kW Hydraulic Motor 0,55 kW Coolant Pump 0,12 kW Blade Speed 15 - 120 m/min. Blade Dimensions 5200x34x1,1 mm Working Height 860 mm Weight 1540 kg Length 2800 mm Width 1210 mm Height 1870 mm
