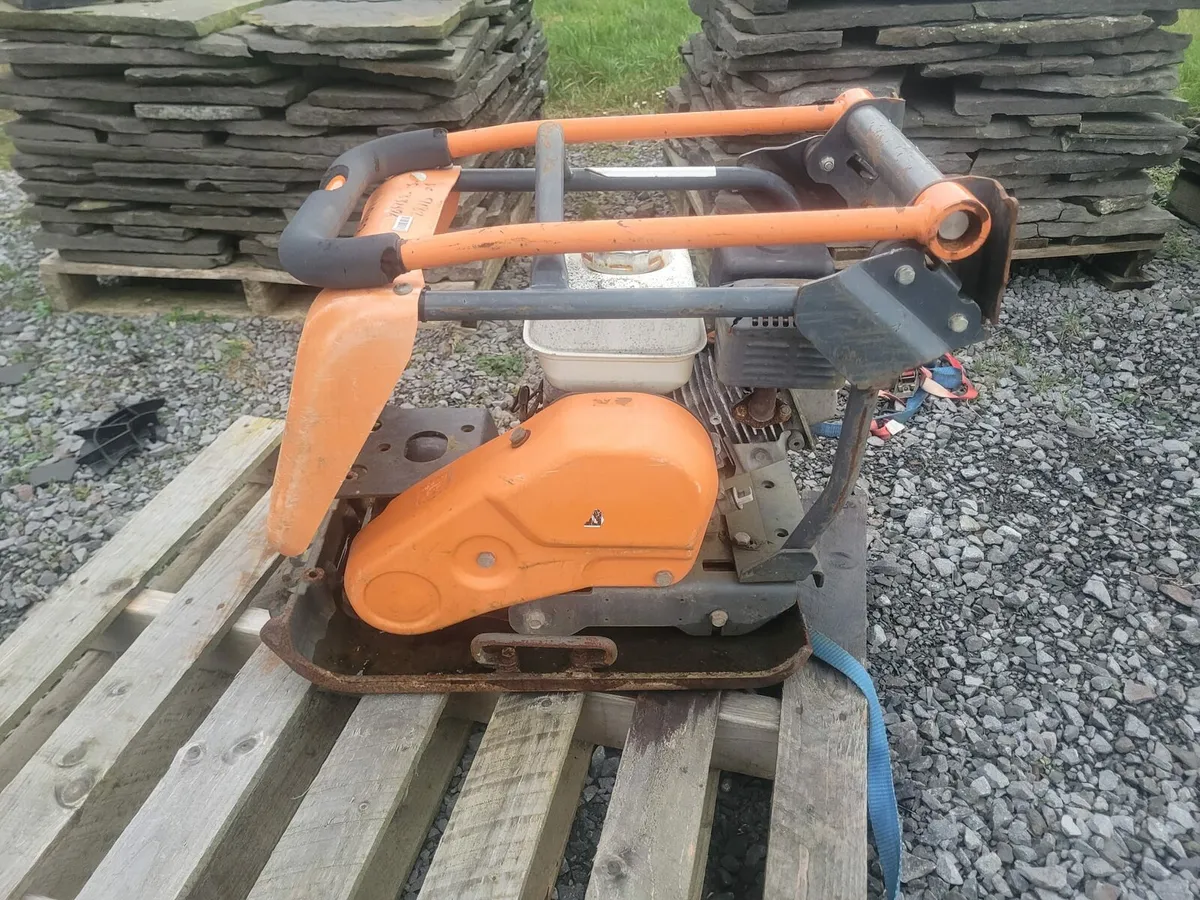

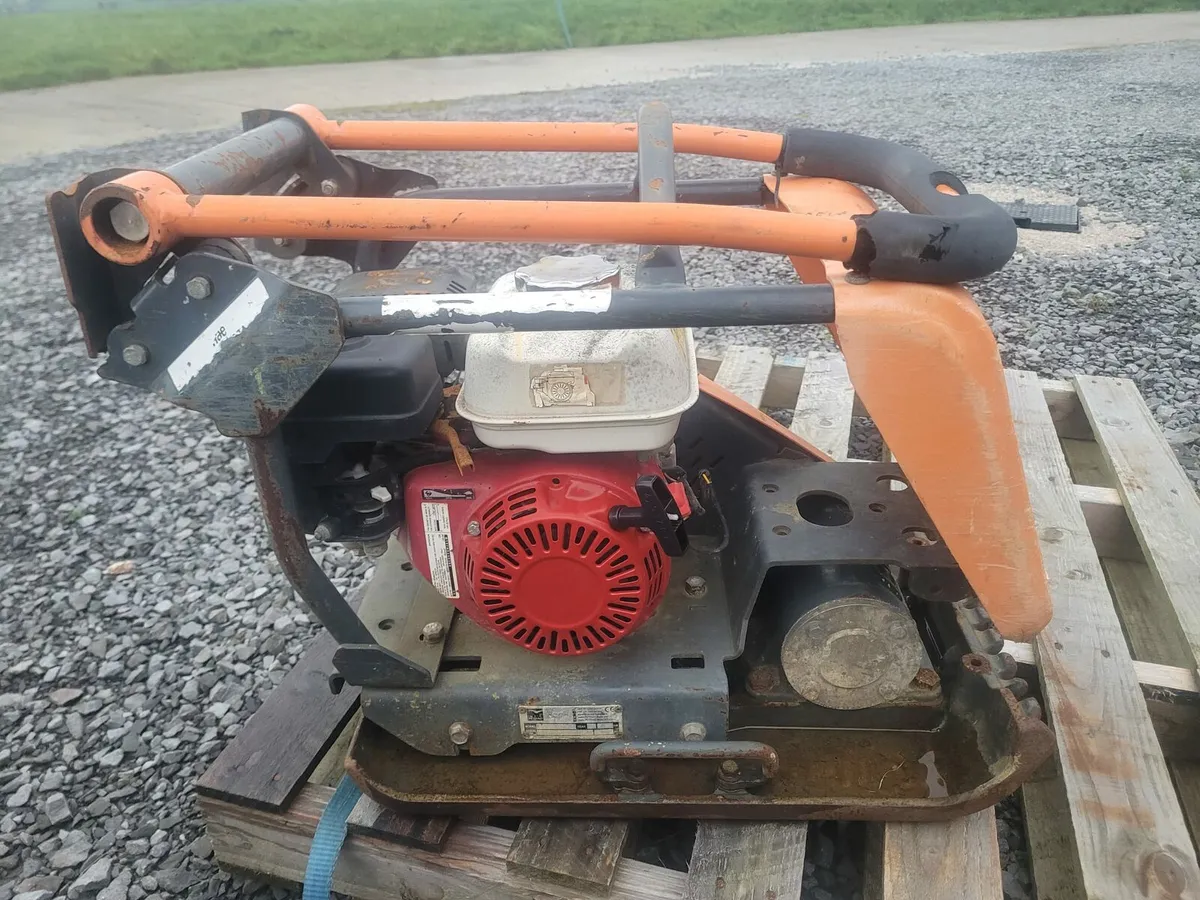

Belle FC4000e PCX 13/40 heavyweight compactor

Key Features Foldable mounted guide handle offers superior manoeuvrability and can be lowered to operate under obstacles and close to form work. Reinforced centrifugal clutch ensures longer belt life, and simplified belt adjustment Lifting points and front lift cage offer easier loading and unloading for operator convenience Large capacity water tank is built into the protective frame Angled holes on spray bar allow complete water coverage over the full width preventing any asphalt pick-up on plate bottom The spraybar is fully protected from damage, easily positioned,with integral paving pad clamp points Optional compact wheelkit, easily fitted and removed Life lubricated vibration bearings Specification FC4000E Without water kit Model PCX 13/40 PCX 13/40 Engine Power (hp/kW) Honda Petrol GX120 4/3 Honda Petrol GX120 4/3 Plate Size WxL (mm) 400 x 606 400 x 606 Static Pressure (kg/m2) 542 520 Centrifugal Force (kN) 13 13 Travel Speed (m/min) 20 20 Vibration (m/sec2) / usage (hrs) 3.2 / 4.53 3.2 / 4.53 Weight (kg) 87 83.5 "
