Bench Drill

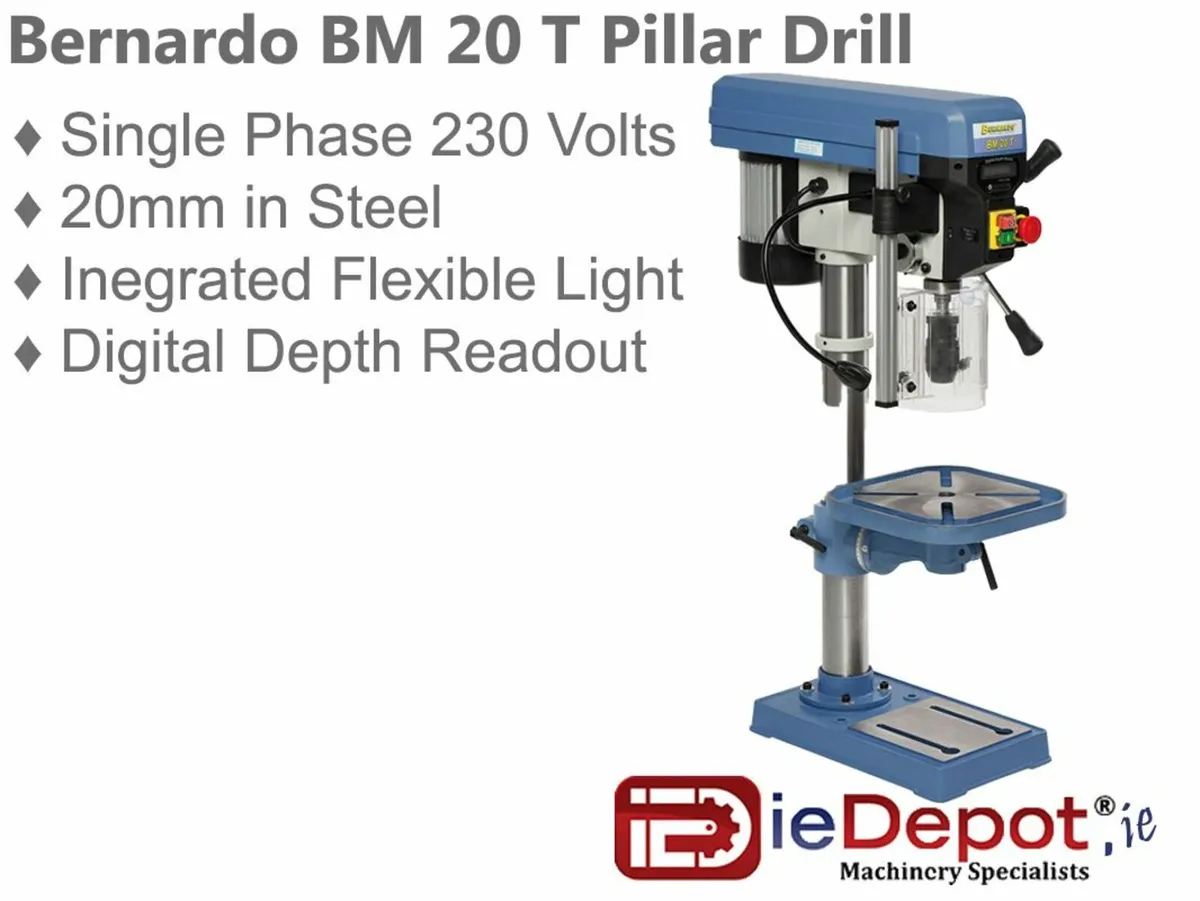

Bernardo BM 20 T Bench Pillar Drill - 230 V View and buy at https://www.iedepot.ie/bernardo-bm-20-t-bench-pillar-drill-230-v/ or call 091876595 Nationwide delivery is available or pick it up from our shop in Loughrea today. Best to pre-order before travelling so it is reserved and ready for you on your arrival Digital display for spindle stroke LED-lamp work lamp - Flexible and adjustable Grey cast iron pulleys ensure smooth running High-quality ball bearings ensure high spindle concentricity Large drill table features diagonal T-slots The drill table tilts (±45°), gear rack allows height adjustment High performance aluminium motor in accordance with the IP 54 standard Complete with high-quality keyless drill chuck Polished machine base features T-slots Clearly arranged handles ensure high comfort when working Specifications Drilling capacity in steel: 20 mm Drill chuck: 1 - 16 mm / B 18 Morse taper: MT 2 Spindle speed: (16) 220 - 2840 rpm Distance spindle to column: 160 mm Drilling table tiltable: -45° to +45° Distance spindle to table max: 440 mm Distance spindle to base: 630 mm Spindle stroke: 80 mm Column diameter: 72 mm Table size / T-slot size: 285 x 285 mm / 16 mm Working surface of base: 200 x 190 mm Machine dimension (W x D x H): 400 x 590 x 980 mm Weight approx:45 kg Included Accessories Keyless drill chuck 1 - 16 mm / B 18 Drill chuck arbor MT 2 / B 18 Digital spindle stroke indication LED machine light T-slot nuts Height adjustable protective cover
