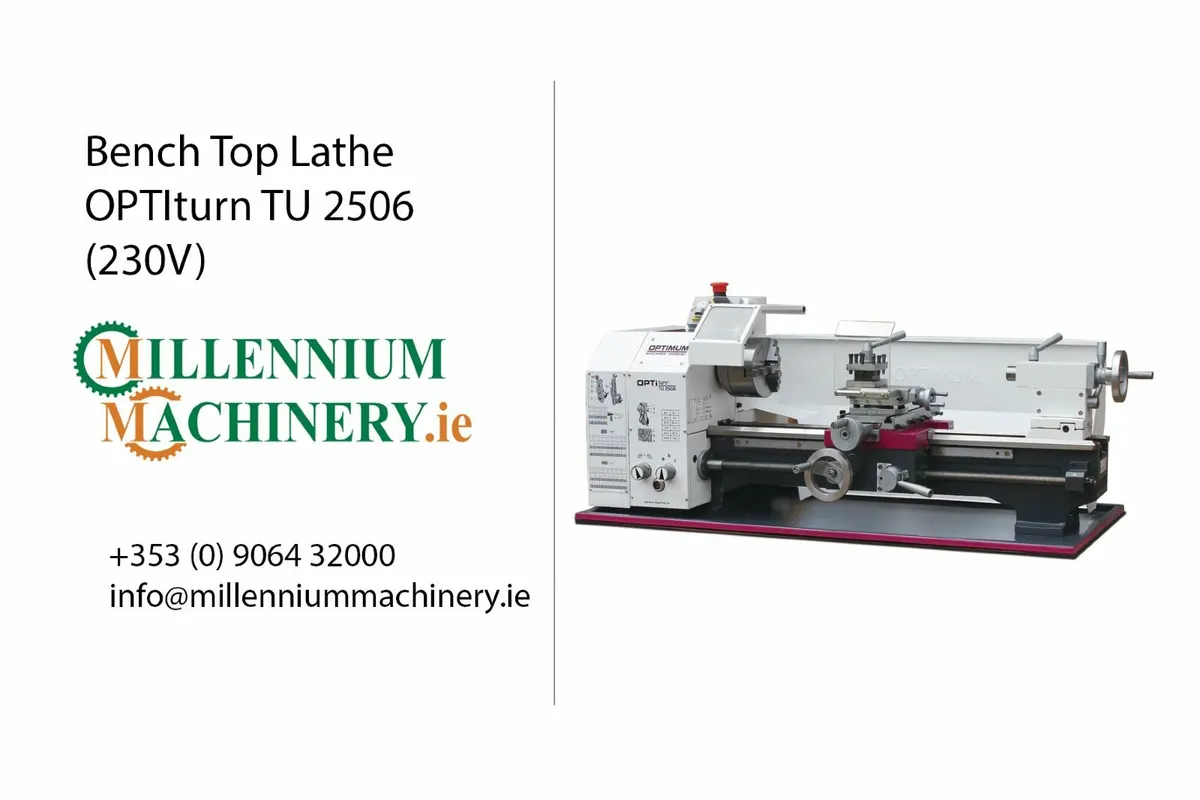

Bench Top Lathe - OPTIturn TU 2506 (230V)

OPTIturn TU 2506 (230 V) – Precision Center Lathe | Brand New Center lathe with feed gear, designed for the demanding user. Precisely manufactured, powerful, and maintenance-free for maximum productivity. Key Features: • Powerful, maintenance-free engine • Hardened and ground Z-axis guideway • Guaranteed spindle concentricity ≤ 0.009 mm • Concentricity on chuck ≤ 0.04 mm • Lead screw for thread cutting & automatic longitudinal turning • Leadscrew stored in two sintered bearings • Right/left rotation switchable from control panel • Rolled trapezoid spindles with thrust bearing • Tapered roller bearings in P5 quality • Hardened main spindle with Ø 26 mm spindle bore • Hardened spindle nose with precision tapered roller bearings • Handwheels with fine scaling 0.04/0.01 mm • Upper slide on cross slide slidable • Chip protection on upper slide • Heavily ribbed prism bed made of gray cast iron, hardened & ground • Adjustable tailstock ± 5 mm (fine scale 0.02 mm) • Quick tool-free tailstock adjustment (clamping lever) • Quadruple tool holder • Emergency stop switch • 3-jaw lathe chuck included • Change gear set included for thread cutting • Fully equipped, ready for immediate productivity • Extensive range of accessories available Dimensions & Weights: Length: 1250 mm Width: 585 mm Height: 475 mm Net Weight: 138 kg Work Areas: Max. workpiece height: 125 mm Max. workpiece length: 550 mm Swing diameter over bed: 246 mm Swing diameter over cross slide: 149 mm Bed width: 134 mm Condition & Delivery: Condition: Brand New Delivery: Fast nationwide delivery across Ireland Collection: Available from our showroom Price shown excludes VAT #LatheMachine #MetalLathe #PrecisionLathe #OptiTurn #WorkshopTools #MachineTools #EngineeringWorkshop #IndustrialMachines #LathesForSale #MillingMachine #Bandsaw #DrillingMachine #WeldingMachine #CoolantOil #CustomBlades #MachineStock #WorkshopEquipment #FastDelivery
