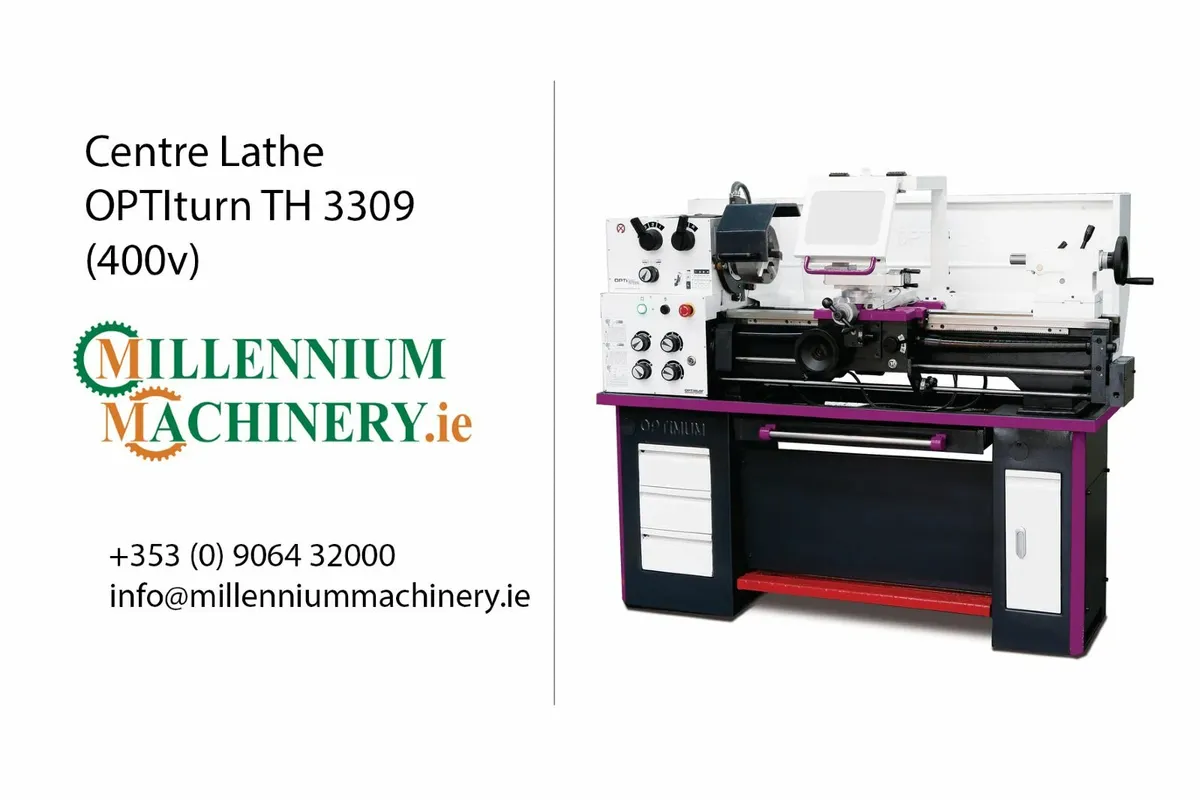

Centre Lathe - OPTIturn TH 3309 (400v)

OPTIturn TH 3309 – Heavy-Duty Precision Lathe | Brand New Fully equipped center lathe designed for precision, stability, and enhanced safety standards. Robust build and reliable performance for professional workshops and industrial use. Key Features: • Hardened and ground Z-axis guideway • Precisely machined slide • Guaranteed spindle concentricity ≤ 0.015 mm • Gear wheels hardened, ground & smooth-running • Main spindle runs in oil bath • Lead screw cover • All guides adjustable with gibs • Right/left rotation switchable on bed slide • Upper slide adjustment range ± 90° • Handwheels with fine scaling 0.04/0.02 mm • Handwheels decoupled & tested according to EN 23125 • Safety handwheels with disengagement (X & Z-axis) • Tailstock adjustable ± 10 mm for taper turning • Tailstock quill & handwheel with fine scaling 0.02 mm • Quick, tool-free tailstock adjustment (clamping lever) • Heavily ribbed prism bed, induction hardened & precision ground • Quadruple steel tool holder • LED machine lamp integrated in chip guard • Emergency stop device with foot control • Rotating chuck guard tested to EN 23125 • Two-channel safety electronics • DC 24 V electrics with EN 23125 safety circuit • Switch tested to EN ISO 13849 life cycle calculation • Machine base with tool compartment (right) + panels (left) • Lockable main switch • Interchangeable gear set included as standard • Delivered complete with accessories for immediate operation • Extensive range of accessories available Dimensions & Weights: Length: 1685 mm Width: 745 mm Height: 1320 mm Net Weight: 510 kg Work Areas: Max. workpiece height: 165 mm Max. workpiece length: 830 mm Swing diameter over bed: 330 mm Swing diameter over cross slide: 208 mm Condition & Delivery: Condition: Brand New Delivery: Fast nationwide delivery across Ireland Price shown excludes VAT #LatheMachine #MetalLathe #HeavyDutyLathe #OptiTurn #PrecisionLathe #WorkshopTools #MachineTools #EngineeringWorkshop #IndustrialMachines #Lat
