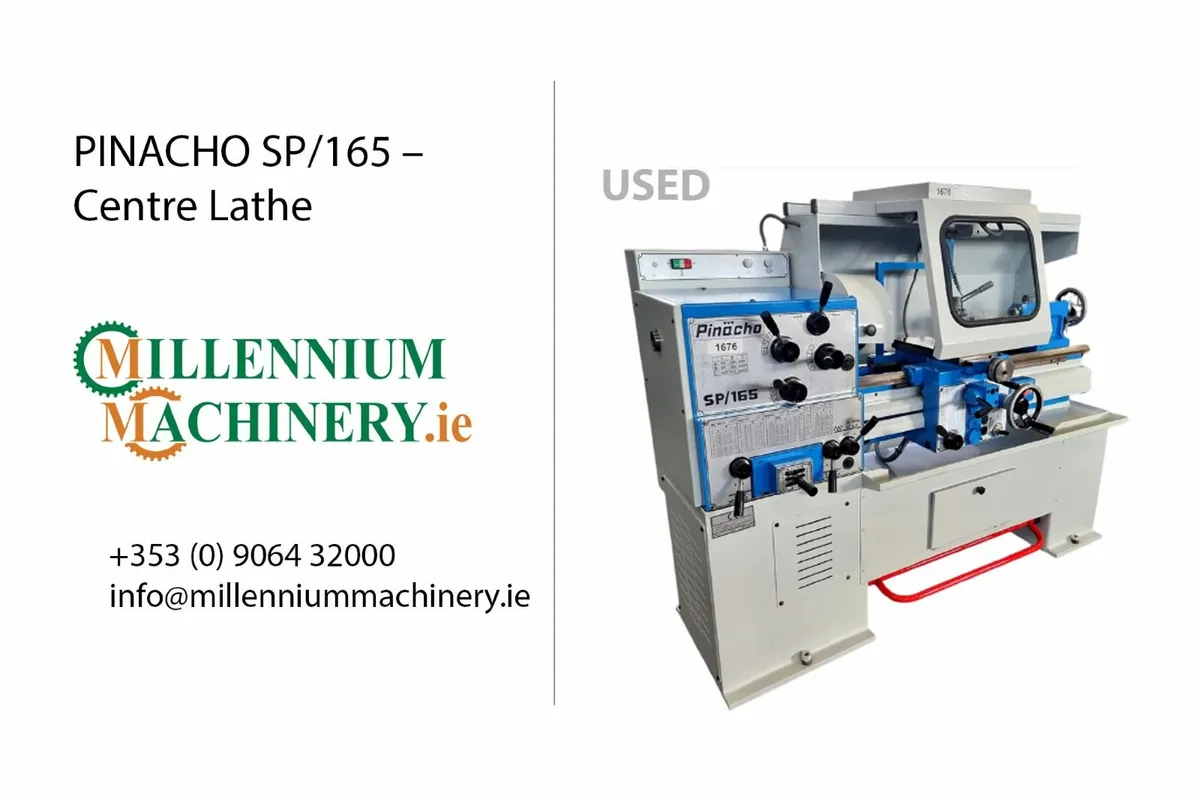

Centre Lathe - PINACHO SP/165

PINACHO SP/165 – Centre Lathe | Used – Excellent Condition High-quality used lathe, fully functional and in excellent condition. Reliable and precise, equipped with essential workshop features. Key Features: • 3-Jaw Röhm chuck, Ø 300 mm • 4-fold steel holder • Chuck protection • Cranking length 120 mm • Sliding rotary guard • Rear chip splashboard • Cooling equipment • Lead screw and draw screw cover • Foot brake • Extensive range of accessories available Dimensions & Weight: Length: 1800 mm Width: 850 mm Height: 1485 mm Weight: 880 kg General Characteristics: Swing over bed: 335 mm Distance between centers: 750 mm Centre height: 165 mm Spindle bore: 42 mm Swing over cross slide: 175 mm Width of bed: 250 mm Spindle nose / DIN55027: DIN55022-5 Nr. 4 Spindle revs: 60–2000 (9) rpm Longitudinal feed range: 0.05–0.75 mm/r Cross feed range: 0.025–0.375 mm/r Metric thread range: 0.5–7.5 mm Module thread range: 60 Cross slide travel: 245 mm Top slide travel: 120 mm Tailstock quill diameter: 48 mm Tailstock quill taper: 3 MK Tailstock travel: 140 mm Motor power: 2.2 kW Condition & Delivery: Condition: Used – Excellent Condition Price: Price shown excludes VAT Delivery: Fast nationwide delivery across Ireland Collection: Available from our showroom #LatheMachine #UsedLathe #CentreLathe #Pinacho #WorkshopTools #MachineTools #EngineeringWorkshop #IndustrialMachines #PrecisionMachinery #WorkshopEquipment #MachineStock #FastDelivery
