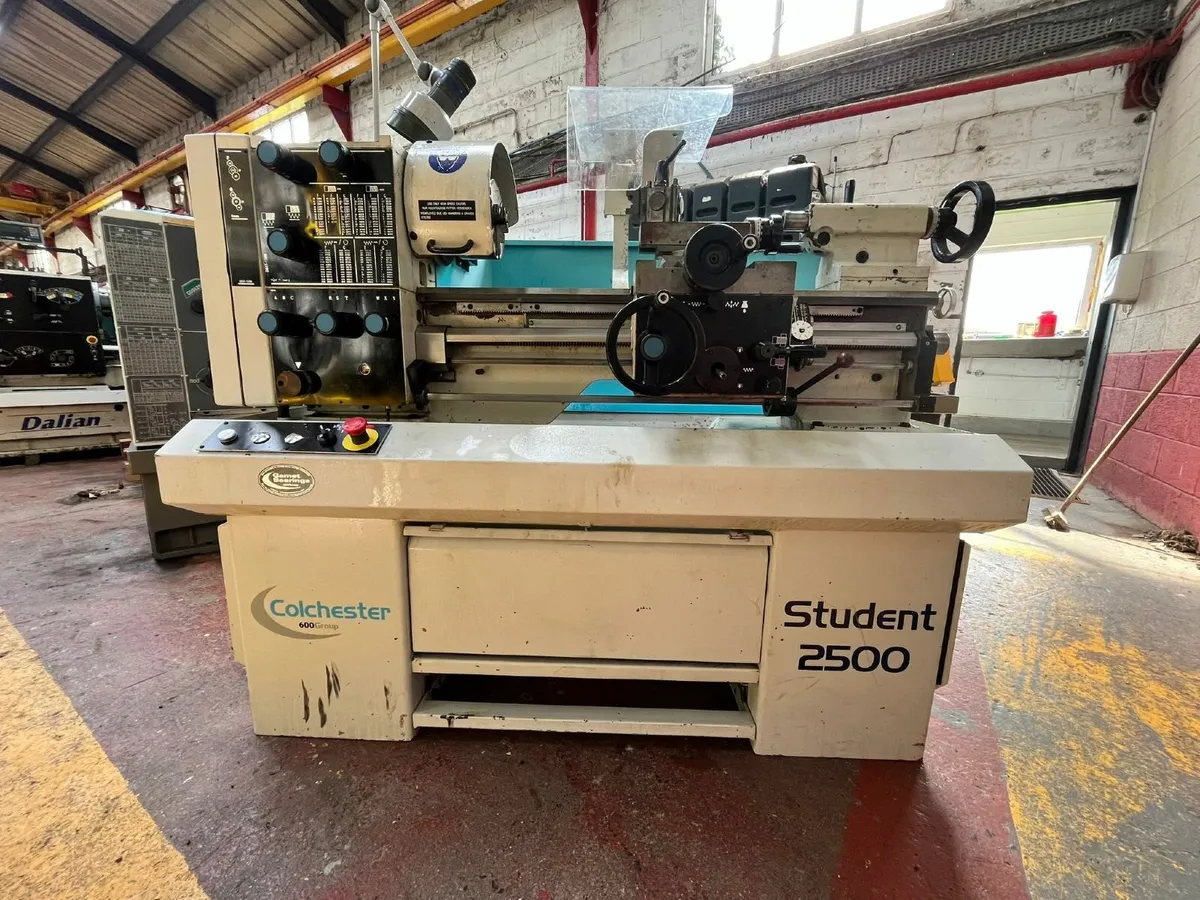

Colchester Student 2500 Lathe

Swing over bed: 330 mm Swing over cross slide: 210 mm Swing in gap: 480 mm Centre height: 167 mm Spindle bore: 40 mm Spindle nose: D1-4 Camlock Spindle taper: No. 3 MT Spindle speeds: 12 speeds, 40–2500 rpm Spindle motor power: 2.2 kW Cross slide travel: 135 mm Top slide travel: 92 mm Tailstock taper: No. 3 MT Tailstock sleeve stroke: 100 mm Machine dimensions (L x W x H): 2130 x 1020 x 1450 mm Weight: 720 kg
