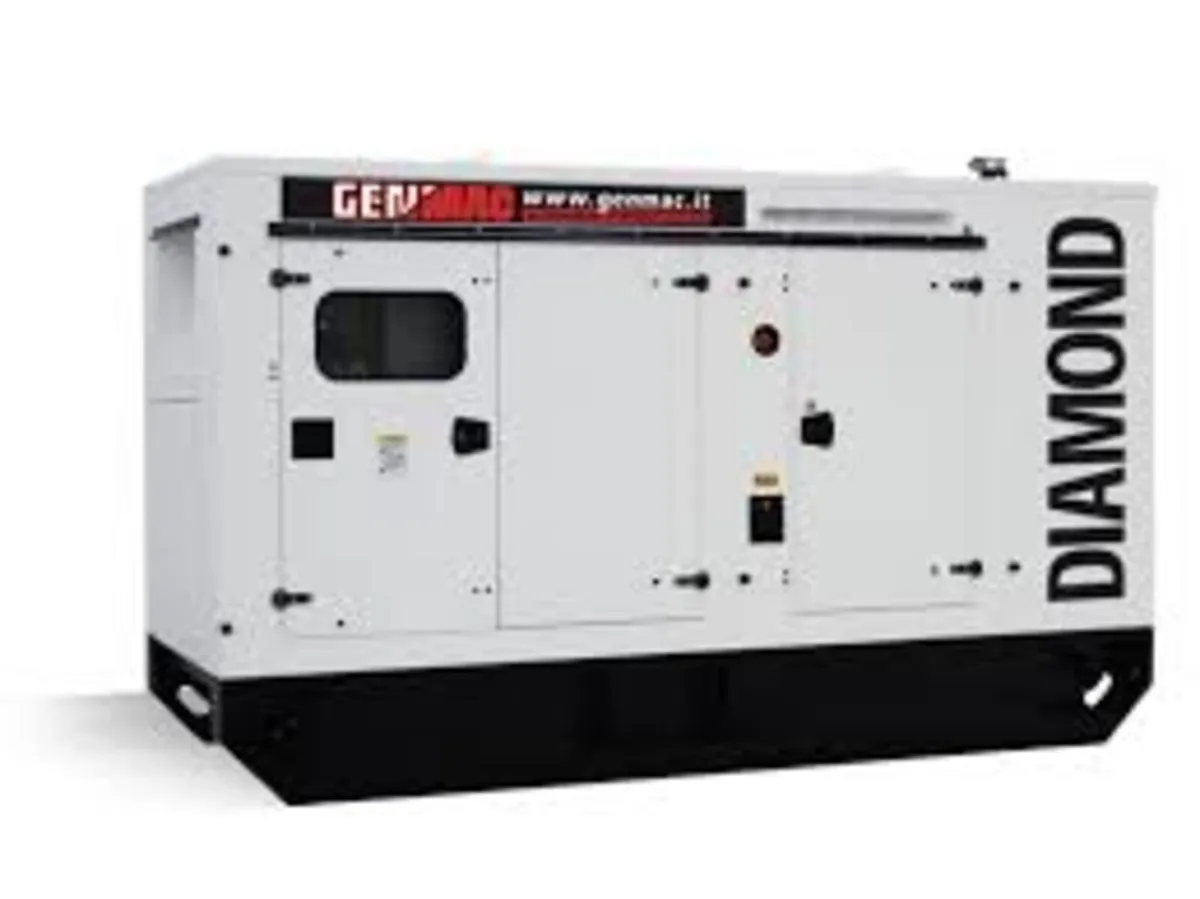

Diamond G300PS Generator Three Phase

Silent generator with following specifications: Frame: -Heavyduty fabricatedweldedbaseplatewithhighqualitysteelUNI S235 JR- Heavy duty, bell type, rubber anti-vibration mountings- Dedicated area to make easier the electrical connection to the load- Fuel tank with drain plug and retention basin- Oil draining mechanical pump- Robust skid base with 4 towing eyes Canopy: - Large doors for easy access for service and maintenance- Electro-galvanized sheet DC01+ZE25/25 (EN 10152: 2009)- Weatherproof sealed joints- High-tech Nylon hinges: rust-free, no need to lubricate- Lockable handles in each door- Windproof door stop-WhiteRAL9010“orangepeel”specificpowdercoatpaint foroutdoor usage- Rain cap on exhaust outlet- Coolant refilling specific hatch- Fuel filler outside enclosure- Fuel tank cap with lock-EcologicalSound foam: 100%Recyclable, 40mmthickness, fire-proof self-extinguishingclass1 fire-reactioncompliantwashable,mechanically fixed to the frame Muffler: - Residential type, integrated in the canopy- With high heat resistant paint coating Control Panel: - Self-standing control panel tower made with metal structure IP33-Easyaccess tocontrol panel throughacanopy’sdoor, equippedwith lexan window- Control panel is divided in two independent and insulated boxes separatingControls(Controllerandnumberedterminalboard)fromPower connection (circuit breaker and cable inlet)-Externaldedicatedareatomakeeasier theelectrical connectiontothe load-Powerconnectionbetweencircuitbreakerandalternatormadewithhigh resistance cables and using cable glands for waterproof connections All units and components are prototype tested, factory build and productiontested.Aspecificcontrolprocedureduringtheseveralstages of production ensures long life and reliability. Overall performance G300PS PRP Continuous power kVA 300 PRP Continuous power kW 240 LTP Stand-by power kVA 330 LTP stand-by power kW 264 Power factor cos fiφ 0.8 Voltage VAC 400/230 Frequency Hz 50 Ampere PRP/LTP 434 / 477 Speed RPM 1500 Dimensions and noise level Length mm 4270 Width mm 1350 Height mm 2370 Net Weight kg 3370 Gross Weight kg Sound pressure at 7 mt dBA 72.0
