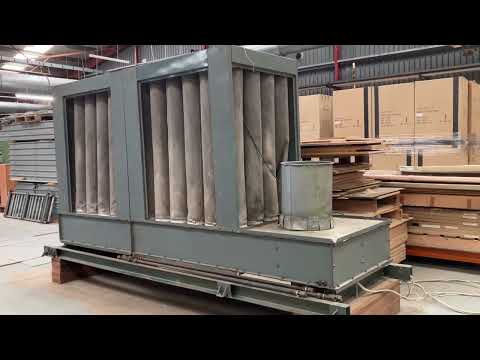

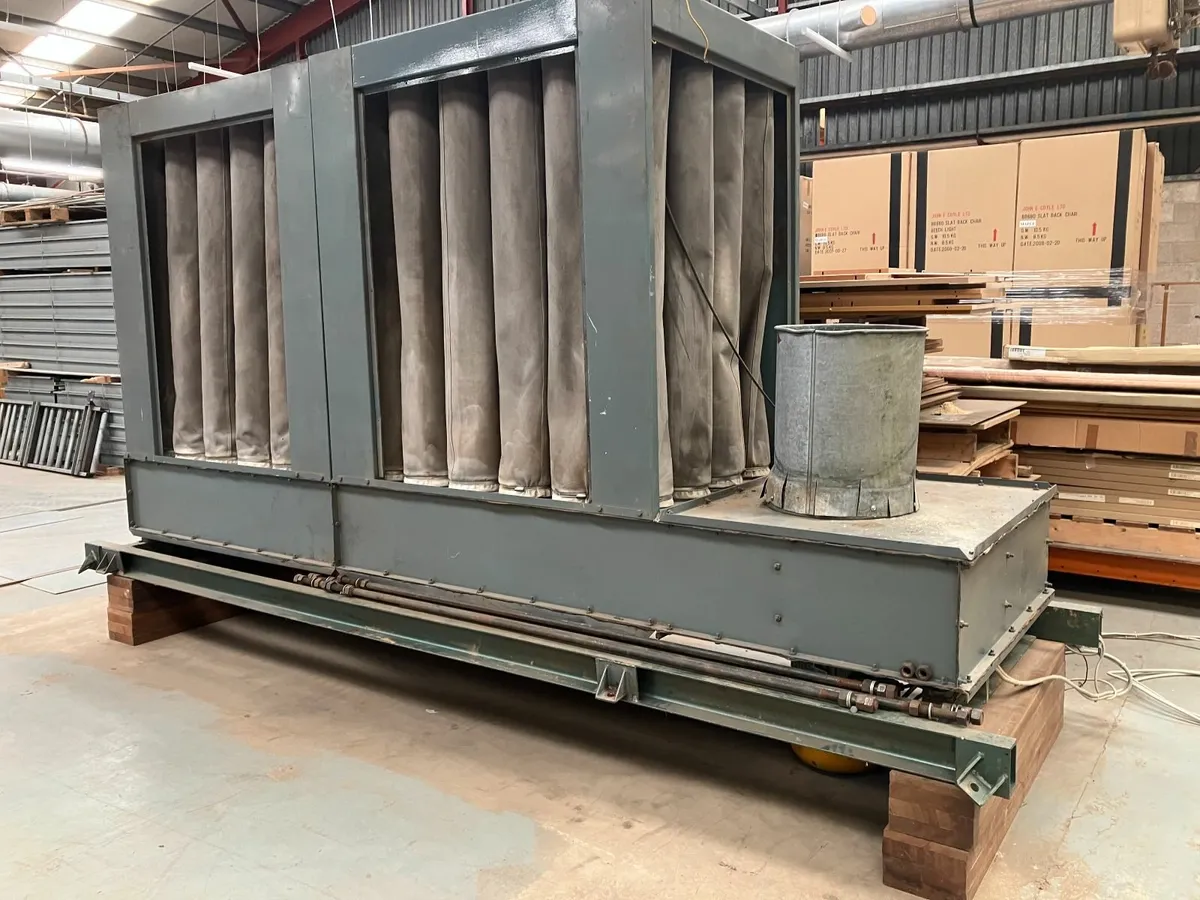

Dust Extraction Fan & Filter

Dimensions 1400mm Wide x 2400mm High (including motor at bottom) x 4500mm Long. 2160mm Height excluding motor projecting at bottom (i.e. Frame only). Extraction Inlet 450mm diameter (suction from machines). Extraction Outlet 175mm diameter (material transferred out). 4 x 6 x 2 Filter Bags = 48 Filter Bags Total. Filter Bags 200mm Diameter x 1540mm Long. 11kw motor 1460rpm. 4,400CFM or 7,300m3/Hr Approx. Typically mounted on portal frame structure of building but alternative setups can be considered. Two stage startup. Shaker at top of filter bags which activates on shut down to clean filter bags of residue. Click on the following links for additional Videos: https://youtube.com/shorts/o8i2po6_PnQ?feature=share https://youtube.com/shorts/1D3o18otwxA
