Edgebander

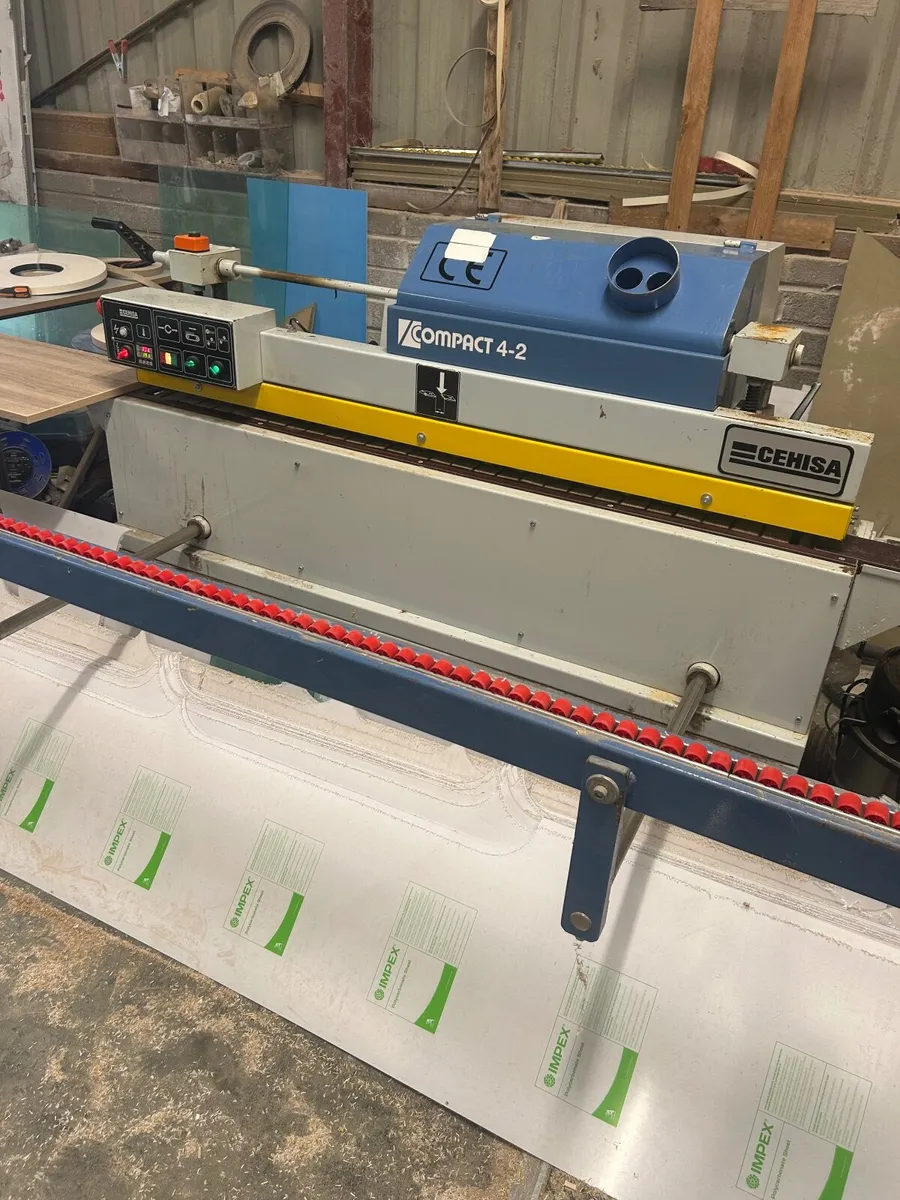

Cehisa Compact 4-2 2008 Great compact Edgebander A glue pot machine with a screw feed mechanism to minimise glue spillage, which applies hot melt glue directly to the edge of the panel allowing the application of unglued coil material up to 2 mm thick and strip material up to 2 mm thick. Working Units: Front and Rear end trims Stations Top and Bottom Trimming Stations Minimum and maximum length of panel 120mm – Unlimited Minimum and maximum width of panel 75mm – Unlimited Minimum and maximum thickness of panel 8 - 50mm Minimum and maximum thickness of edging 0.4 - 2 mm Feed speed 10m/min Power requirement 415V - 3Phase Compressed air 6 – 7 Bar Overall machine length 2280mm
