Generator

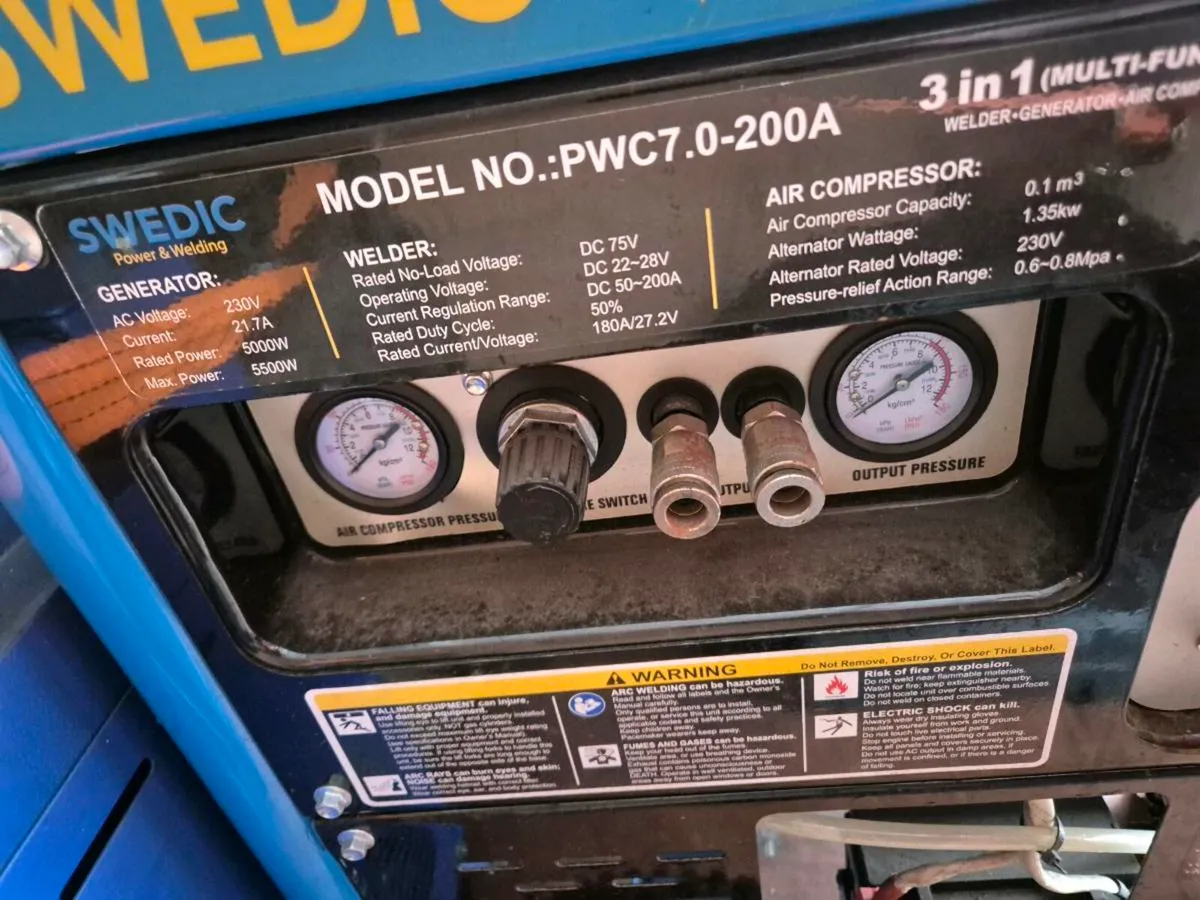

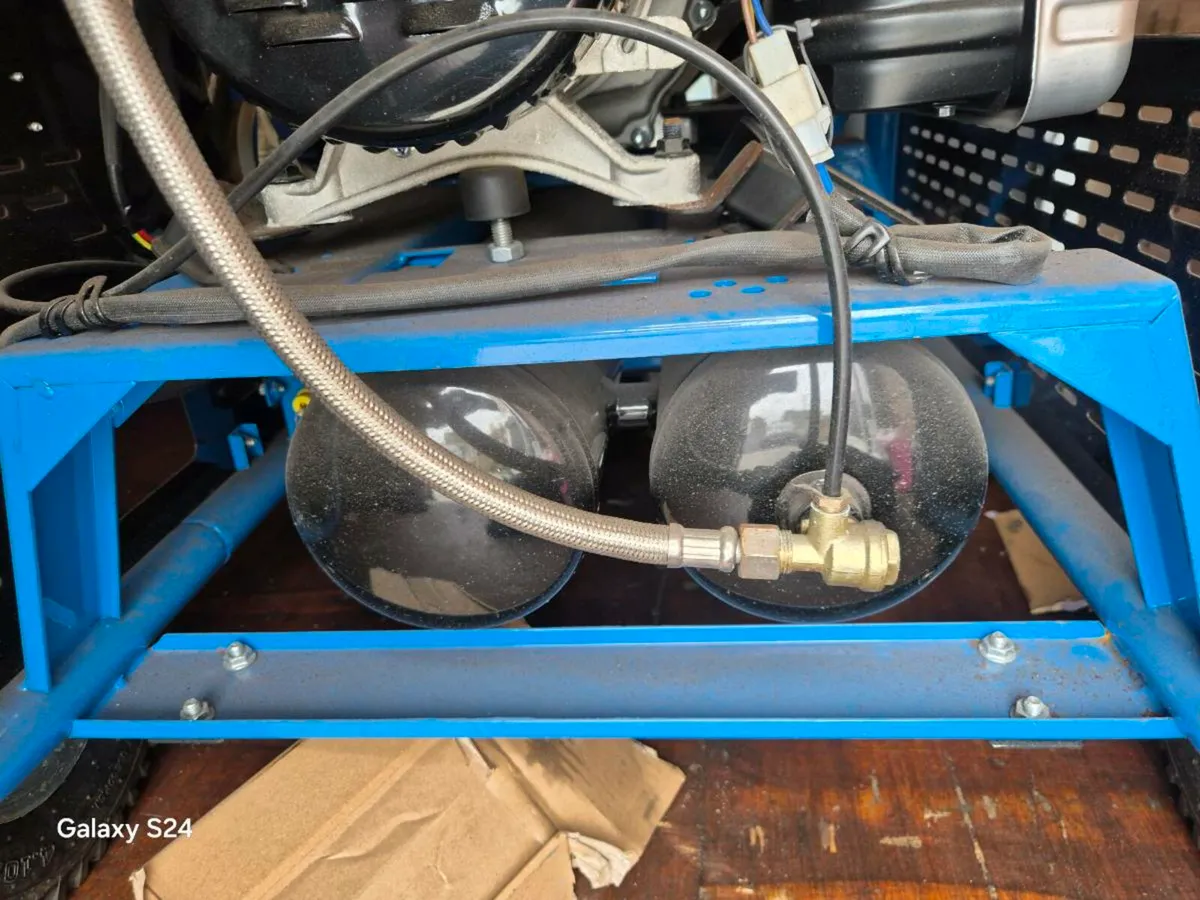

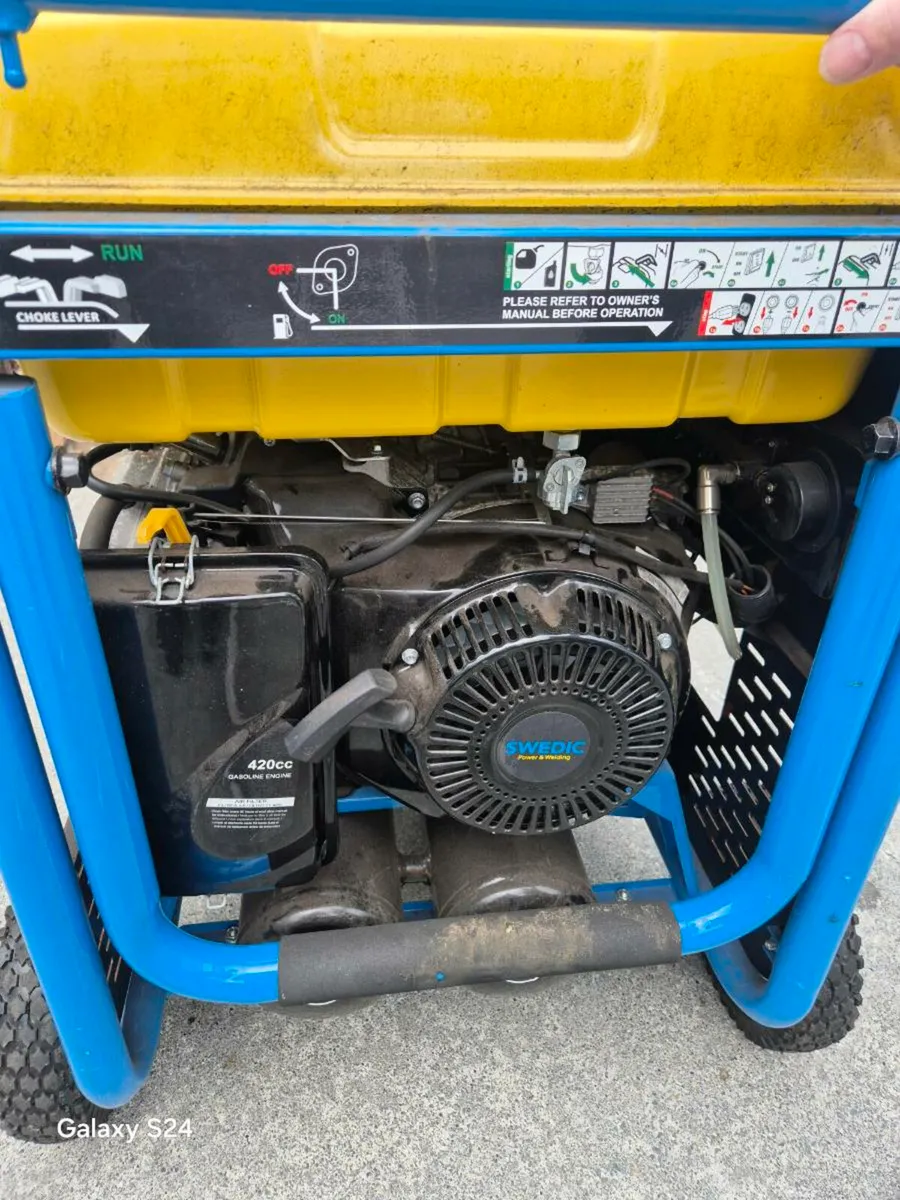

3 in 1 Generator Welding Air Compressor PWC 7.0-200A The 3 in 1 Generator Welding Air Compressor 6,3 KVA – 7 KVA is run by a 9KW Swedic outdoor series engine and a two stage al cast iron pressure lubed pump! This unit will provide 8 bar compressed air, two power outlets 230V 16A – 230V 32A and a 200AMP welder, ideal for any job site. Use this 3 in 1 system in commercial and industrial applications on a jobsite or on the go whit its solid pneumatic tires. The tires can be removed to make this unit stationary as well. The two stage all cast iron pressure lubed pump delivers high CFM output and reliability. The two ASME twin thanks provide 20L of air storage,quick disconnects,rubber isolator pads, and filled gauges, plus heavy duty steel belt guard to make this unit ready for any task. Description Specification Duty Cycle 50% OCV (V) DC75 Current range (A) DC 50-200 Welding voltage (V) DC 22-28V Welding rod 1.6-4.0 mm Rated current/voltage (A/V) 180A/27.2V Auxiliary rated power output 5000W-6.3 KVA 230V 5500W-7 KVA Engine Model Swedic 420 Max.power/Speed(RPM) 9.0KW/3600rpm Displacement(cc) Gas,420 Start method E-start Air Capacity (L) 20 Stage 1 Flow 60-70L/min Pressure range 0.6-0.8 Mpa Fuel tank Capacity (L) 30 Protection class IP23 Dimension (mm) 850,5*583*780 Net Weight (kg) 150 Gross Weight (kg) 164 Sockets 1*32A/230V European Industrial Socket. 1*16A/230V two-hole European Socket
