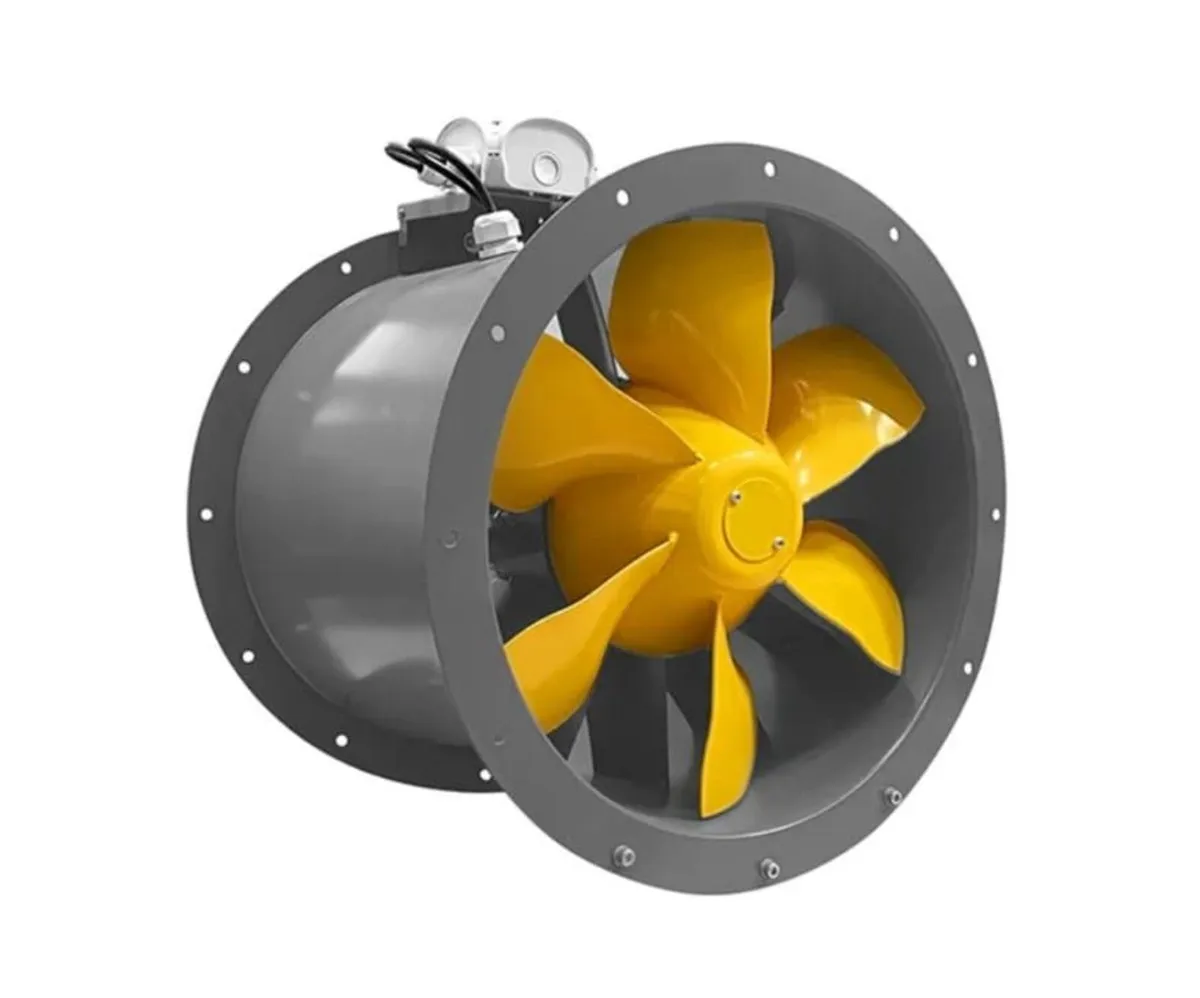

HARMANN MAXEE 400/4/6800T – 400MM DIAGONAL DUCT FA

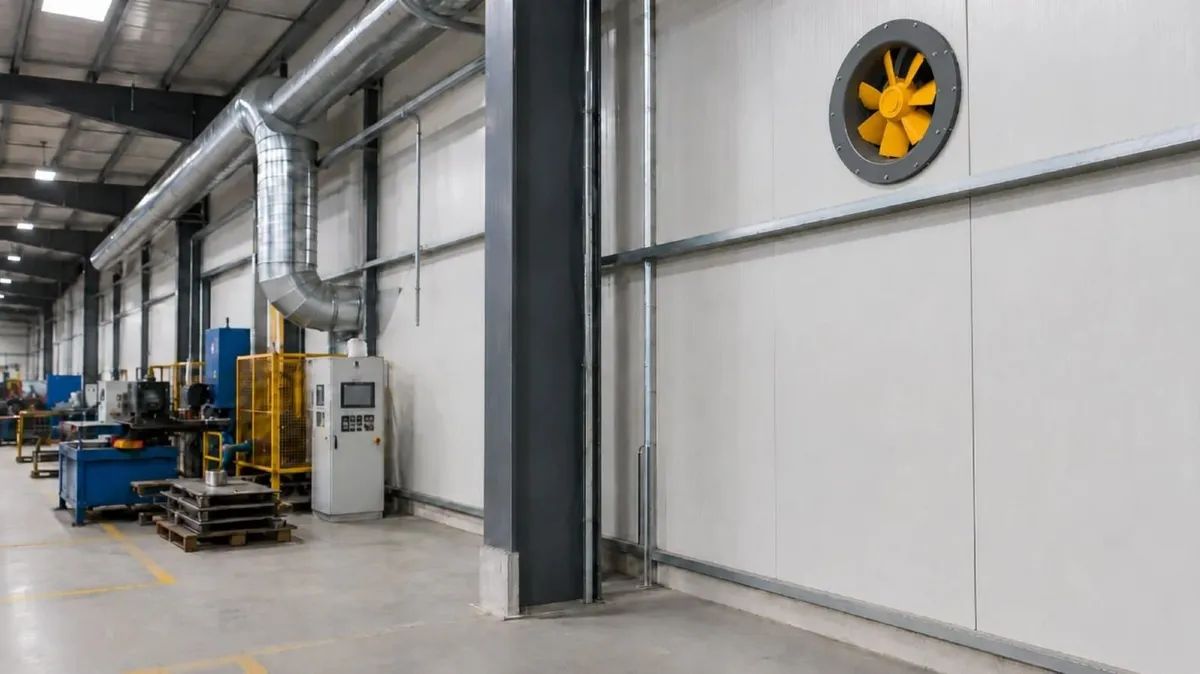

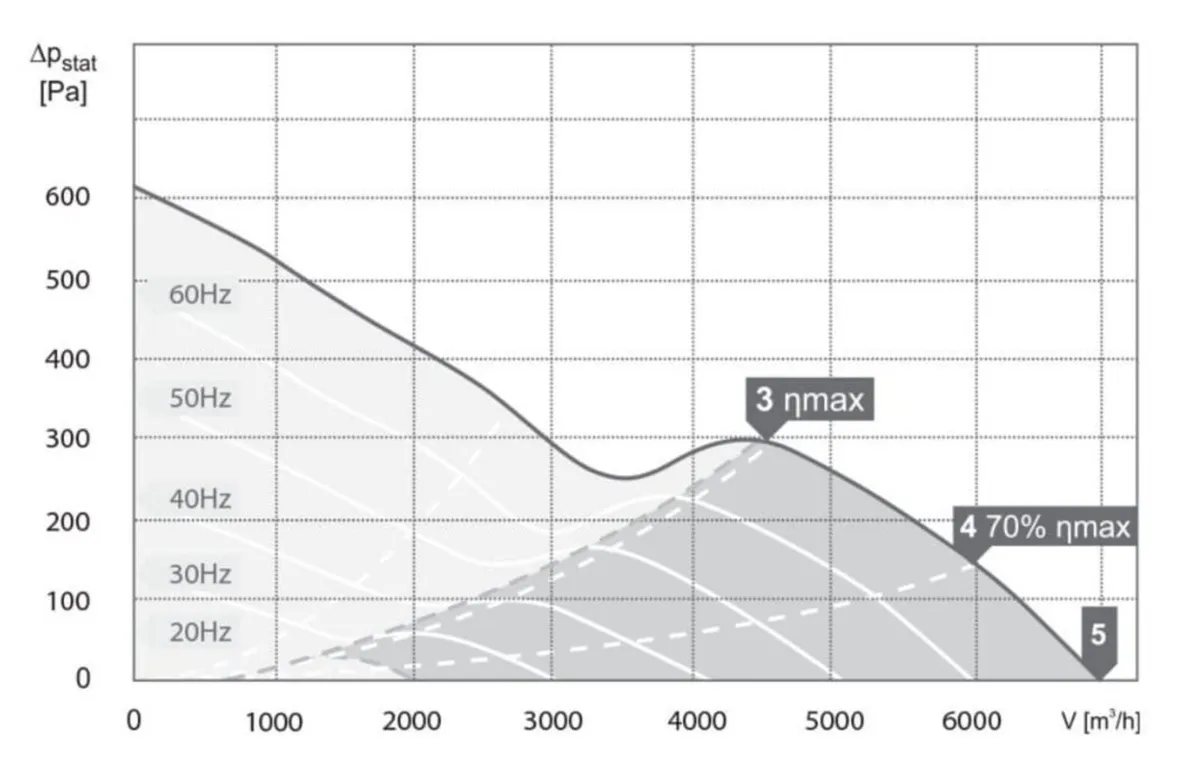

FREE DELIVERY 5–8 WORKING DAYS NATIONWIDE Available to purchase securely on our website: https://www.mcafeesshop.com/product-page/duct-fan-diagonal-400mm-6890-m-h-300-pa-ie3-motor-ip55-harmann VAT-REGISTERED IRISH TRADER HARMANN MAXEE 400/4/6800T – 400MM DIAGONAL DUCT FAN Professional medium-pressure duct fan designed for high-capacity supply and extract ventilation systems in industrial, commercial, warehouse, office and technical environments. High-performance diagonal airflow design combines strong air capacity with stable pressure, making it suitable for larger duct installations and systems incorporating grilles, dampers, silencers and filters. KEY SPECIFICATIONS • Maximum airflow: 6,890 m³/h • Maximum pressure: 300 Pa • Duct connection: 400 mm • Motor: Three-phase IE3 asynchronous motor • Voltage: 3~400 V (Y), 50 Hz • Maximum power: 1010 W • Maximum current: 1.3 A • Speed: Up to 2040 rpm • Speed control: Frequency inverter, 20–70 Hz • Motor protection: IP55 • Insulation class: F • Maximum operating temperature: 60°C • Sound power level: 69 dB(A) • Sound pressure: 62 dB(A) at 3 m • Weight: 23.2 kg HEAVY-DUTY CONSTRUCTION Features a diagonal impeller with six three-dimensional blades and a conical hub, manufactured from powder-coated steel. Dynamically balanced to DIN ISO 1940 class G6.3 for stable operation and reduced vibration. The welded steel housing is powder-coated in RAL 7012 with C3 corrosion protection. INSTALLATION Suitable for horizontal or vertical installation directly in a 400 mm duct run. EUROVENT 1/2 mounting flange. Dimensions: A: 480 mm B: 368 mm C: 450 mm G: 571 mm Mounting holes: 8 × Ø12 (E) SUITABLE FOR • Industrial ventilation • Commercial buildings • Warehouses and logistics facilities • Offices and public buildings • Technical and plant rooms • Mechanical supply and extract ventilation • New ventilation systems and upgrades to existing installations Brand: Harmann Model: MAXEE 400/4/6800T Article No: 15409000
